wet & dry vacuum. (See Fig. B2)
3) Tighten the screw (10) using a philips head screwdriver (Not
supplied) in a clockwise direction until tight.(See Fig. B3)
7.3 Assembling the accessories for wet & dry vacuuming
To assemble the 1.8m Heavy-Duty crush resistant vacuum hose (18) to
hose outlet - suction (11) :
1)
Insert the 1.8m Heavy-Duty crush resistant vacuum hose (18) into hose
outlet - suction (11) and align the locking pin on the body connection
(17) with the groove on the hose outlet - suction (11). (See Fig. C1)
2) Turn the body connection (17) in a clockwise direction to secure the
hose (18) into position. (See Fig. C2)
To assemble the dusting brush (14) / crevice tool (15) / wide nozzle
tool (16) to the 1.8m Heavy-Duty crush resistant vacuum hose (18) :
1)
For wet & dry vacuuming, either the dusting brush (14) , crevice
tool (15) or wide nozzle tool (16) can be added to accessories

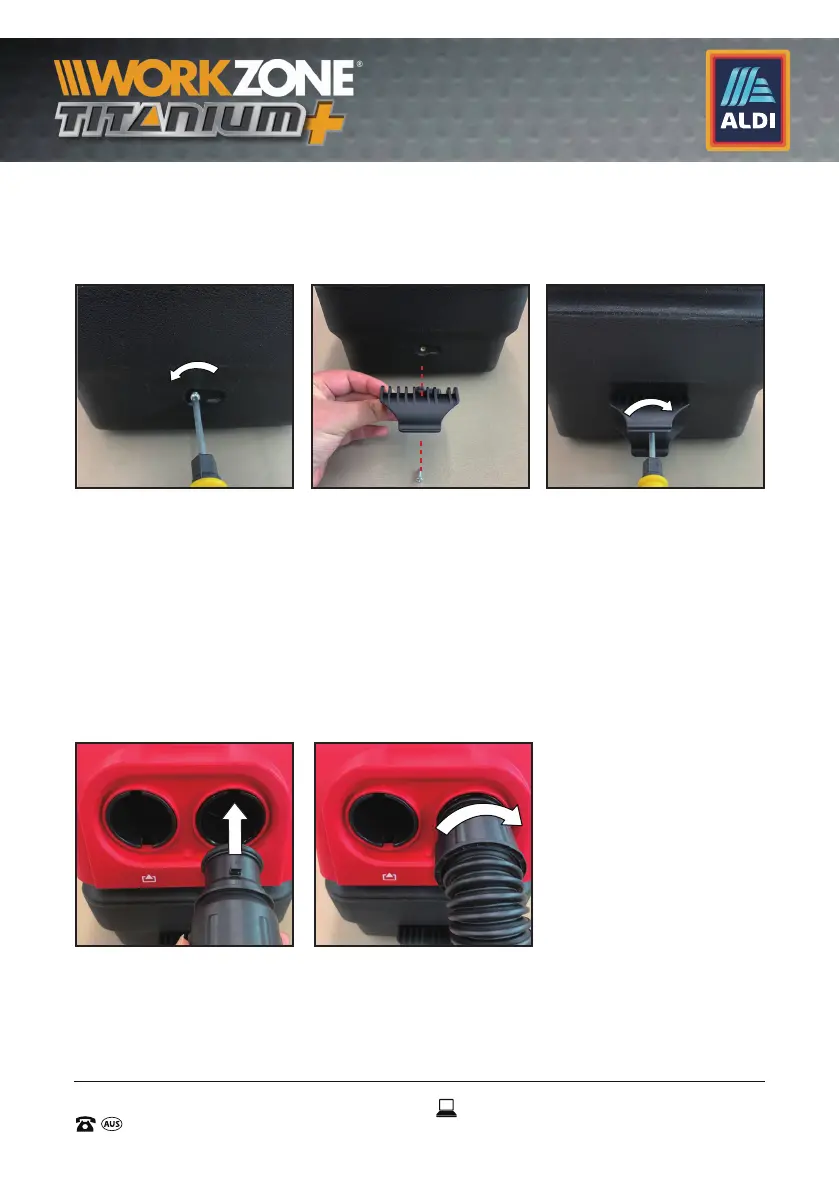

B2
B3
B1
C1 C2
