Mounting:
1. Determine the installation height for the outdoor unit.
2. Hold the suspension bracket against the wall at the desired height and draw the
drill holes.
3. Drill the holes, insert the plugs and mount the suspension bracket. You can
suspend the bracket exactly straight using the built-in spirit level. When using an
external power source, lead the wires through the hole in the rear of the suspen-
sion bracket and connect them to the connection strip.

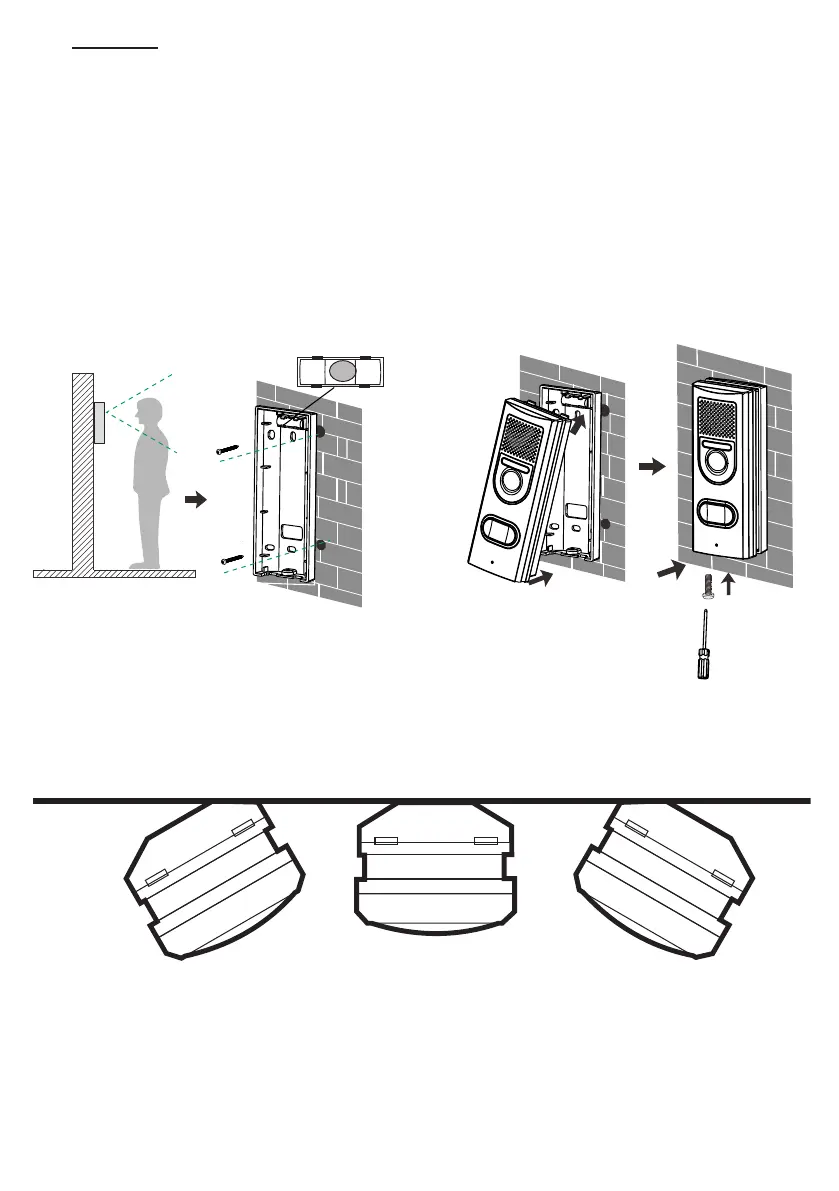

4. Now rst slide the top of the outdoor unit into the suspension bracket and then
push the bottom into the bracket, according to the illustration below.
5. Now fasten the outdoor unit into the bracket using the supplied screw.
If the camera must be aimed at an angle to the left or right, rst mount the wall
bracket at an angle to the wall and then place the straight wall bracket onto it.
