4.2.4 Install Rain Gauge
Install the rain gauge funnel. Rotate clockwise to attach the funnel to the
outdoor sensor.

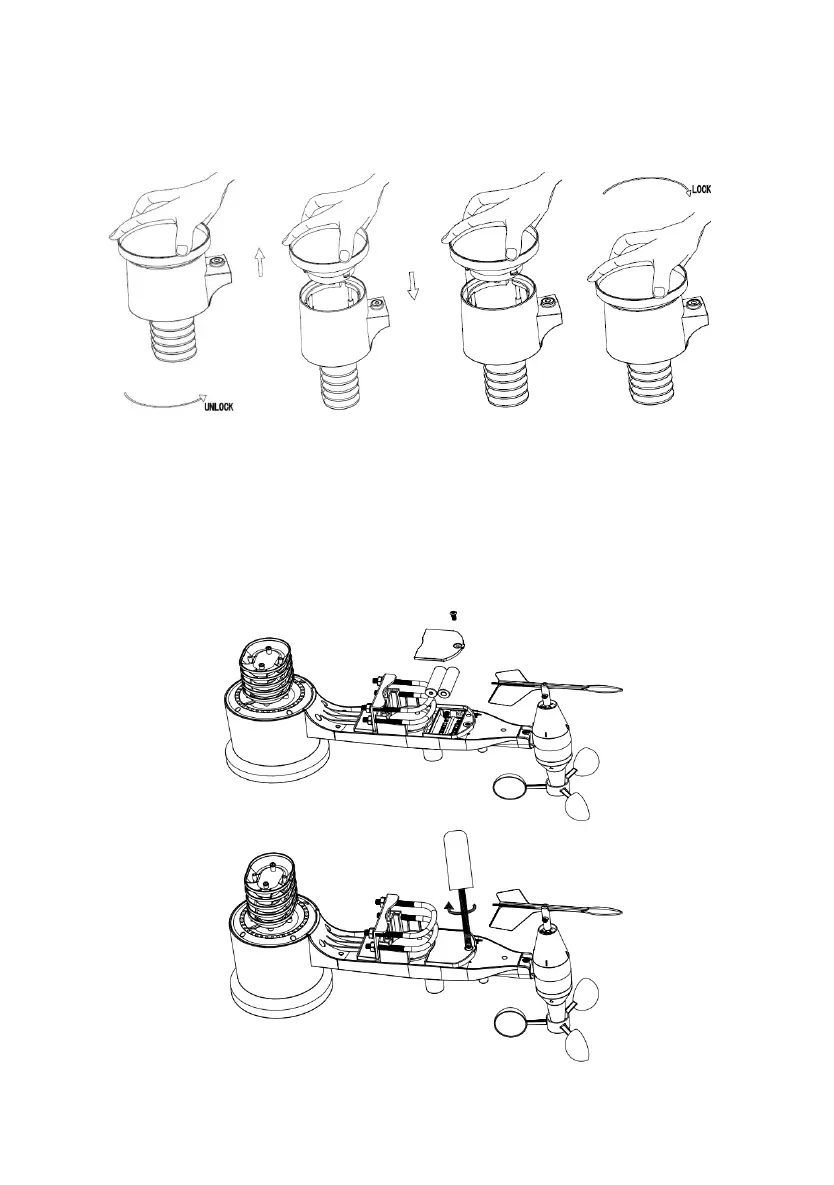

Figure 6: Rain gauge installation and maintenance
4.2.5 Install Batteries
Insert 2XAA batteries in the battery compartment. The LED indicator on the
back of the transmitter will turn on for four seconds and normally flash once
every 16 seconds (the sensor transmission update period).
Figure 7: Battery installation diagram
