5 Display Console Operation
5.1 Screen Display

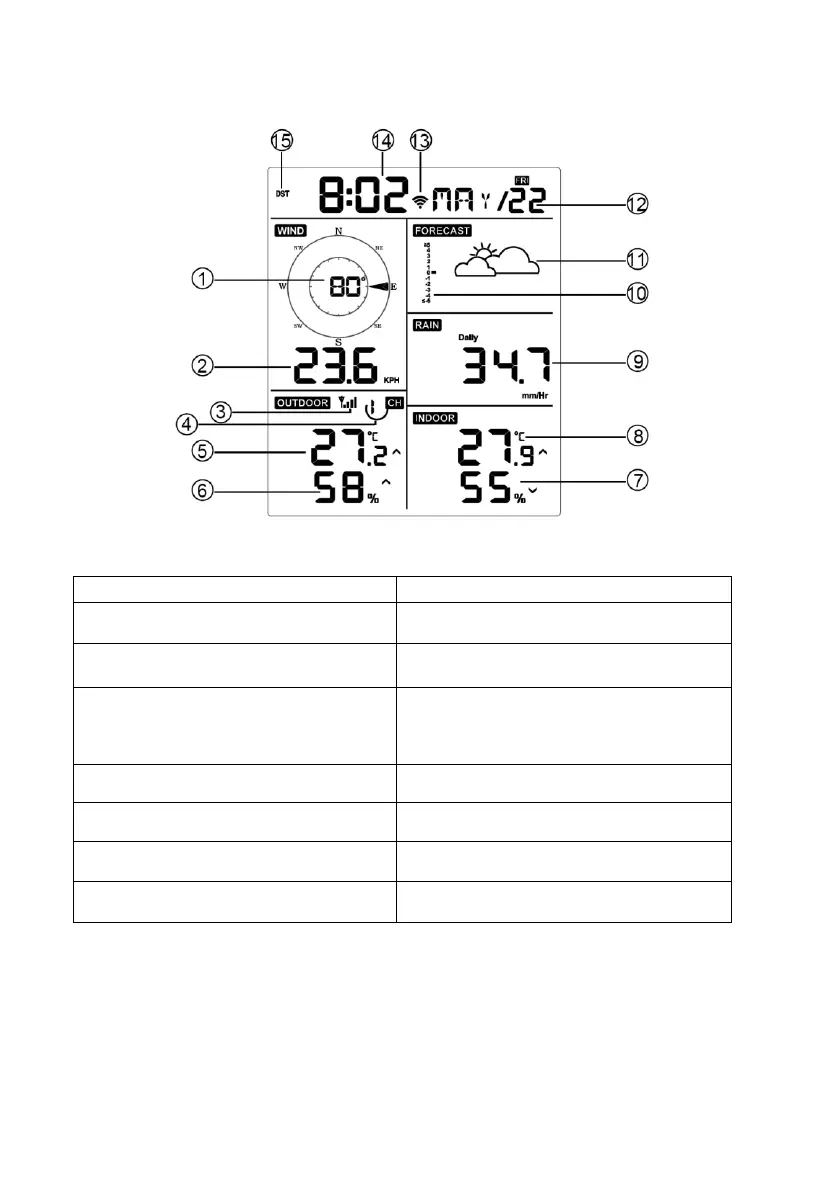

Figure 15: Display Console Screen Layout
1. Wind direction
9. Rainfall
2. Wind speed
10. Barometric Pressure graphic
3. RF signal icon
11. Weather forecast
4. 8 Channel Indoor/Outdoor
Thermo-Hygrometer recycle icon
(optional)
12. Date
5. Outdoor temperature
13. WIFI signal icon
6. Outdoor humidity
14. Time
7. Indoor humidity
15. Daylight Savings Time (DST)
8. Indoor temperature
Table 6: Display console detailed items
