Alemite 3620 - Installation and Operation; Installation Metered Control Valve; Operation Safety and Latch

Electronic-Metered Control Valve SER 3620
Alemite LLC 9 Revision (11-05)
Electronic Meter Assembly
Refer to Service Guide
SER 3630
for complete details.
Metered Control Valve
IMPORTANT: Apply thread sealant to all
pipe thread connections prior to assembly.
1. Screw Nipple (
3
) into Meter Assembly (
2
).
• Do not tighten at this time.
2. Screw Control Valve Handle Assembly (
4
) onto the
Nipple.
• Tighten the Nipple into the Handle and the Meter at
the same time.
• Make sure to align the Handle properly with the
Meter.
3. Connect the components of the extension assembly
and tighten securely.
4. Screw the extension assembly into Meter Assembly
(
2
).
• Tighten the extension securely.
Installation
Attach the Swivel Assembly [with thread sealant] to its
delivery line. Tighten the connection securely.
Operation
WARNING
Should leakage occur anywhere within the
system, disconnect power to the motor. Personal
injury can occur.
Safety and Latch
1. Squeeze the Lever to ensure the safety engages
properly.
2. Press the button in the center of the Lever and operate
the Lever. The Lever should move to the open
position.
3. Release the Lever (while pressing the button) then
release the button to ensure the latch engages properly.
4. Press the Lever and release to release the latch.
If the safety and/or latch does not operate properly,
refer to the
Control Valve Troubleshooting Chart.
Refer to Figure 5 Parts List
for Parts Identification

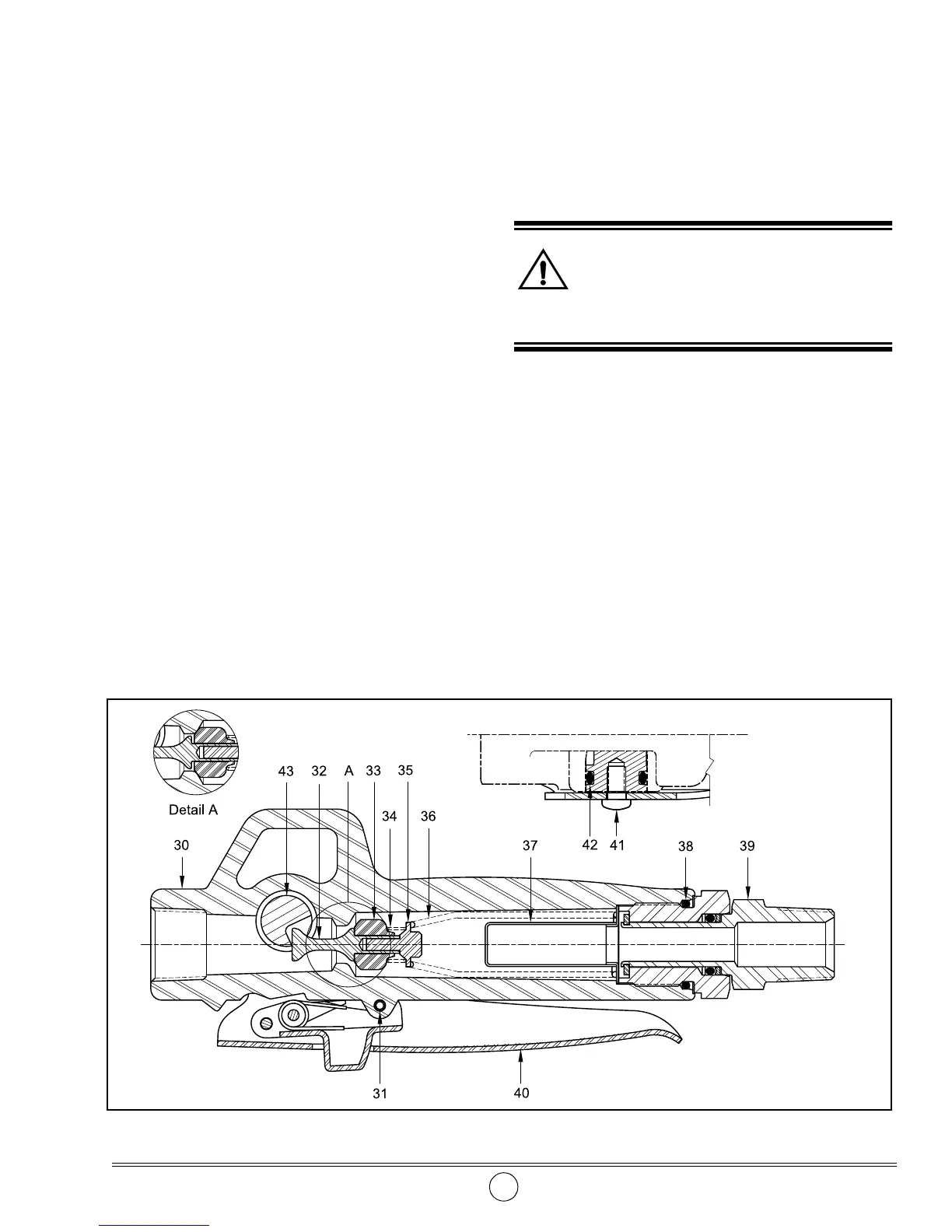

Figure 6
Control Valve Handle 339100 - Section View
