Aler AL200 - AL300-HYBRID Connection Modes; AL2000-HD Connection Modes; AL3000-HD Connection Modes; AH100-HD Connection Modes

- 4 -
Connection ofIP
camera
4 channels of 720P/1080P IPC video inputs
Hybridconnection
of analog and IP
camera
4 channels of 720P IPC+8*960H/D1/CIF
HD hybrid video inputs

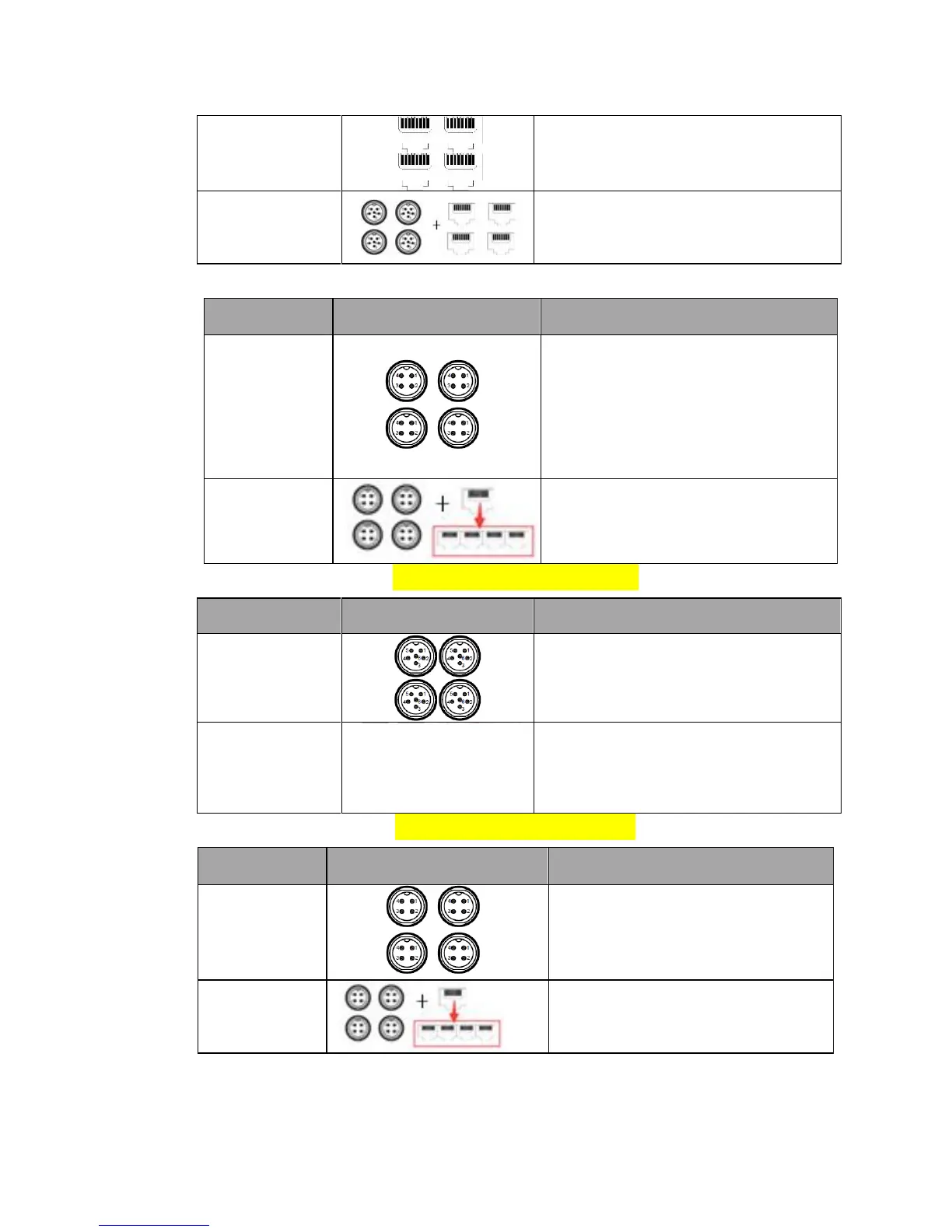

Table AL300-HYBRID Connection Mode
Connection
Mode
Connection Diagram
Model AL2000-HD
Connection of
analog camera
3 1
4 2
4 channels of D1/960H/720P AHD video
inputs
2 channels of 720p AHD（1&2 CH）
+2*960H （3&4 CH）analog hybrid video
inputs
Hybrid
connection of
analog and IP
camera
1channels of 720P/1080P
IPC+4*720PAHD/960H/D1 HD video
inputs,connection to an external switch is
also acceptable.
Table 4 AL2000-HD Connection Mode
Connection Mode
Connection Diagram
Model AL3000-HD
Connection of
analog camera
8 channels of CIF/ D1/960H analog video
inputs
Hybrid connection
of analog and IP
camera
1channels of 720P/1080P
IPC+8*960H/D1/CIF HD hybrid video
inputs,connection to an external switch is
also acceptable.
Table 5 AL3000HD Connection Mode
Connection
Mode
Connection Diagram
Model AH100-HD
Connection of
analog camera
3 1
4 2
4 channels of D1/960H/720P AHD video
inputs
2 channels of 720p AHD（1&2 CH）
+2*960H （3&4 CH）analog hybrid video
inputs
Hybrid
connection of
analog and IP
camera
Max. 4 channels of 960H video inputs +
1 channel of 1080P IPC HD video input,
connection to an external switch is also
acceptable.
Table 6 AH100-HD Connection Model
