Configuration
This section lists the configuration steps that must be performed on the device.
Commissioning steps performed using Envision for BACtalk are explained in
“Commissioning” on page 12.
IMPORTANT Write down the values you assign during this process. This
information will be useful in troubleshooting problems should they arise. See
“Appendix B: AZW-5000 Commissioning Record” on page 30.
1. Use the MS/TP MAC address DIP switches 1-7 to set the MS/TP MAC
address (ON is toward the body of the device). Valid addresses are
1-127.
2. Use the two 6-position DIP switches to set the ZigBee network address
(ON is toward the body of the device). Set the coordinator device
ZigBee network address to 0.
Note If the device is associated with an Alerton Wireless Temperature
Sensor, both units must have the same ZigBee MAC address DIP switch
settings.

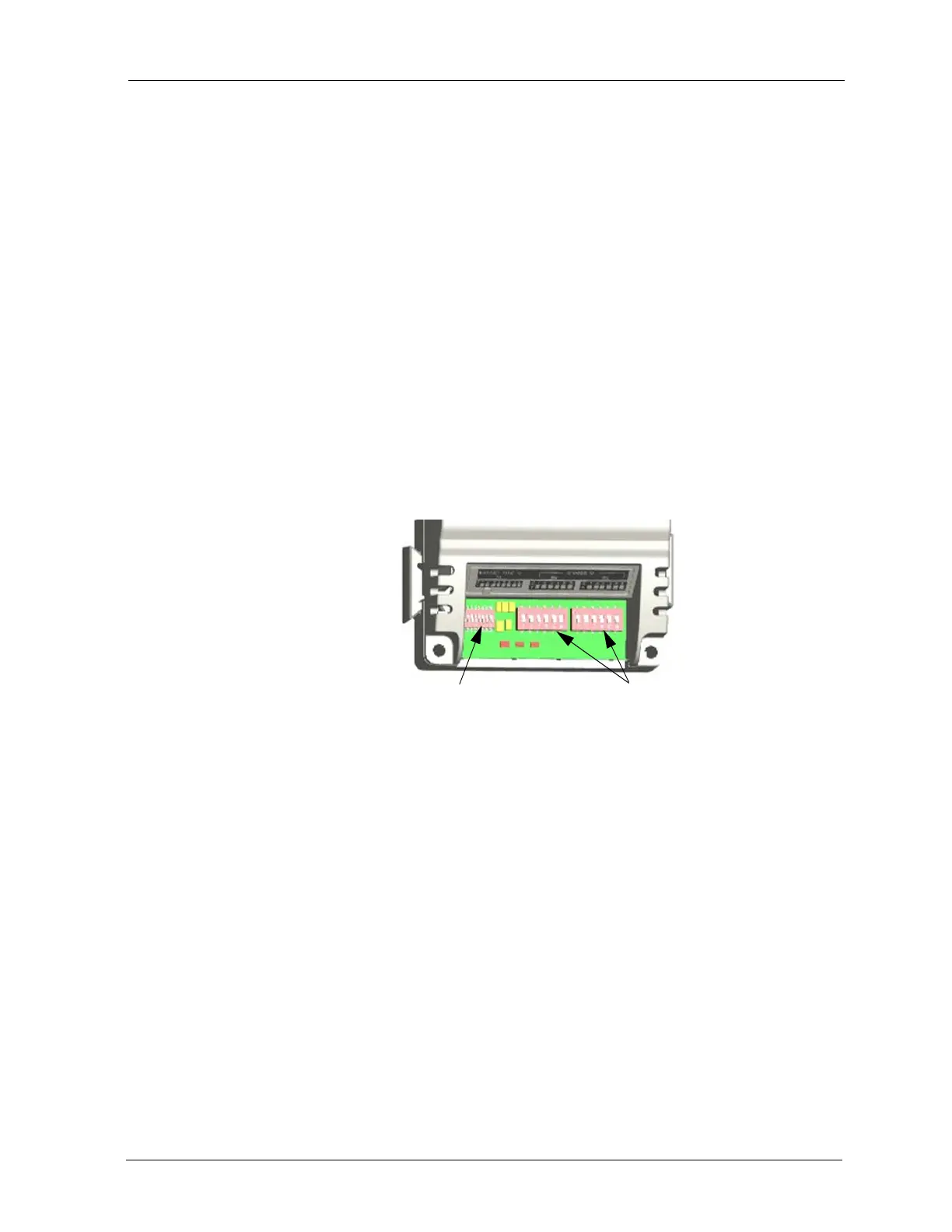

Figure 3 DIP switch locations
MS/TP MAC
address DIP
switches
ZigBee MAC
address DIP
switches
