ALERTON AZW-5000 User Manual

Installation and Operations Guide
|
About AZW-5000
© Honeywell LTBT-TM-AZWIOG Rev. 0001BETA
5

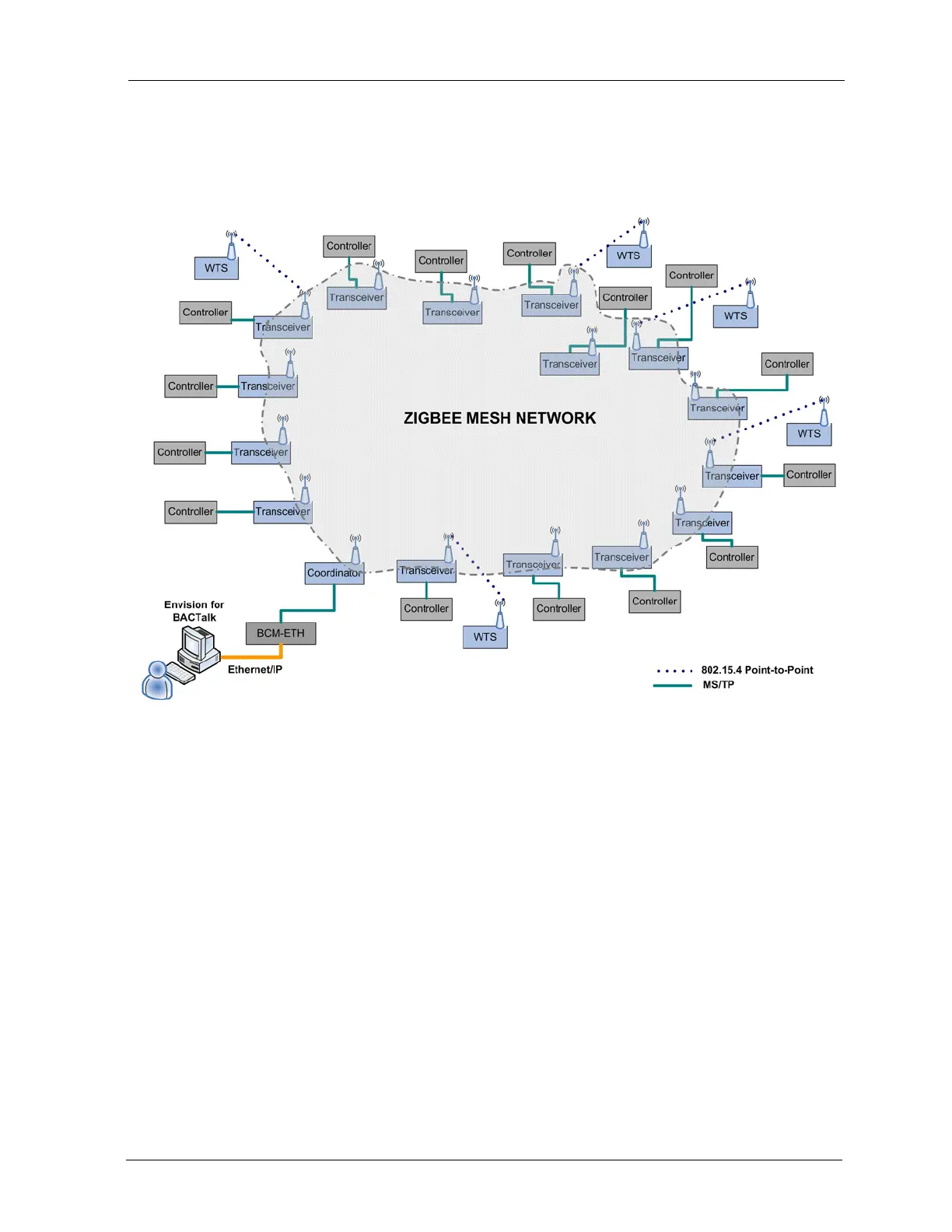

AZW-5000 network topology
Figure 2 shows a typical, stand-alone, AZW-5000 implementation. For examples
of other topologies, see the System Design Guide (LTBT-TM-SYSDSGN).
Items to note in relation to Figure 2:
• The maximum number of AZW-5000 devices on a network is 16 (1
coordinator and 15 transceivers/repeaters).
• The AZW-5000 connected to the BCM-ETH must be configured as a
coordinator. This device manages the wireless network.
• The coordinator must have a dedicated BCM-ETH or BCM-MSTP. Do
not connect multiple MS/TP devices to the coordinator’s BCM.
• An Alerton Wireless Temperature Sensor cannot be associated with a
coordinator or a repeater.
• An AZW-5000 transceiver or repeater may be associated with only one
WTS. Both must share the same ZigBee MAC address.
• Locating a transceiver more than 100 feet from the coordinator may
degrade data transfer rates.
Figure 2 Typical AZW-5000 implementation
