Mounting
Mounting
The Microset II is designed to be wall-mounted indoors, with
dimensions ideal for mounting to a single-gang electrical box.
See Fig. 3 on p. 6.
Mount in a clean, dry location away from windows, air ducts,
and other places where environmental factors may affect
temperature and humidity readings.
Note If you mount the Microset II on the interior of an
outside wall, thoroughly insulate so outside air behind the
sensor doesn’t affect the sensor reading.
To meet requirements of the Americans with Disabilities Act,
mount no higher than 48" from the floor and with a minimum
clear floor space of 30" X 48" (760 X 1220 mm). See Fig. 1.

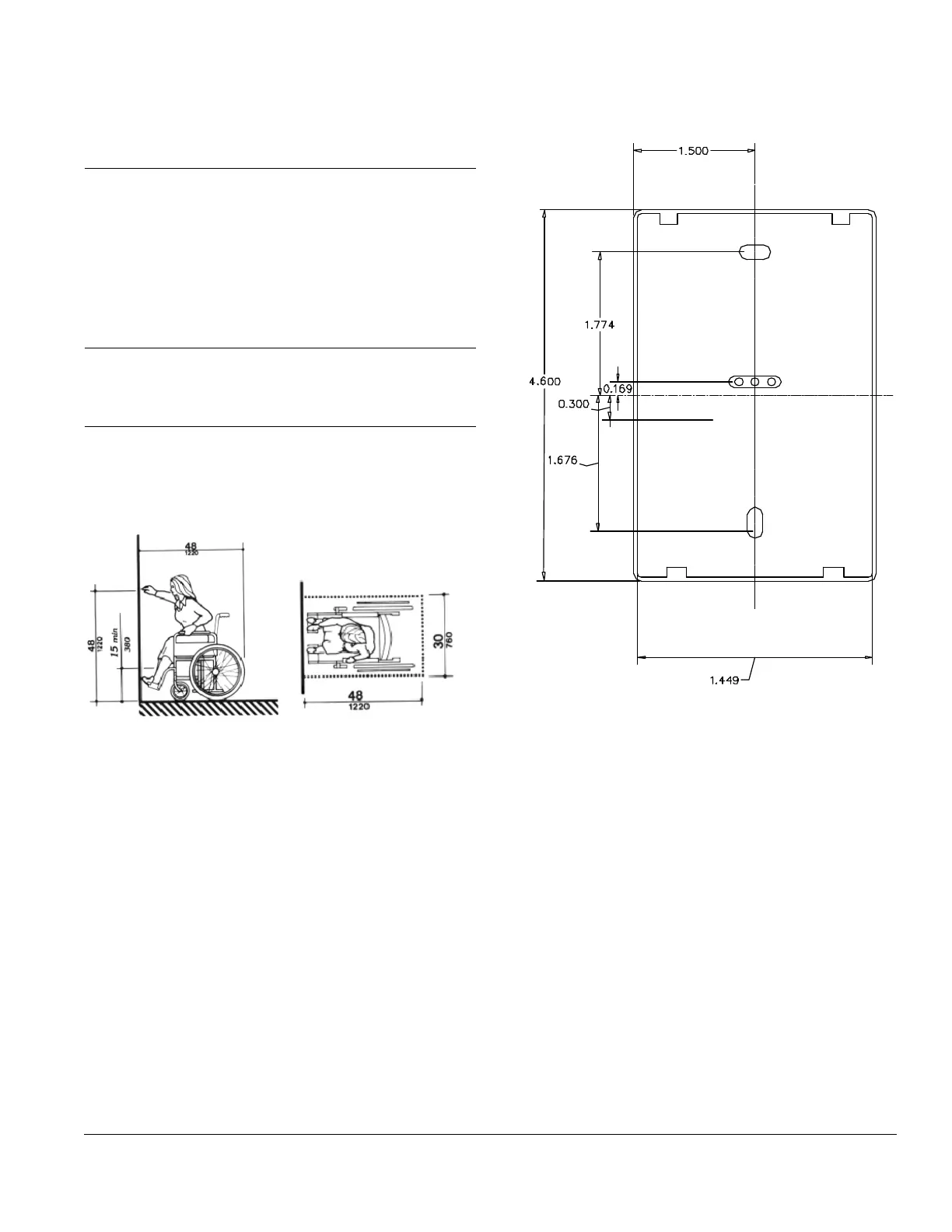

Fig. 1 Mounting guidelines for compliance with Americans with Disabilities
Act (ADA).
Fig. 2 Backplate mounting dimensions.
The Microset II ships with the backplate on backwards. This
makes the backplate easier to remove during installation. Two
screws attach the backplate to an electrical box, mud ring, or
other mounting surface.
