Alesis compactkit 4 Service Manual

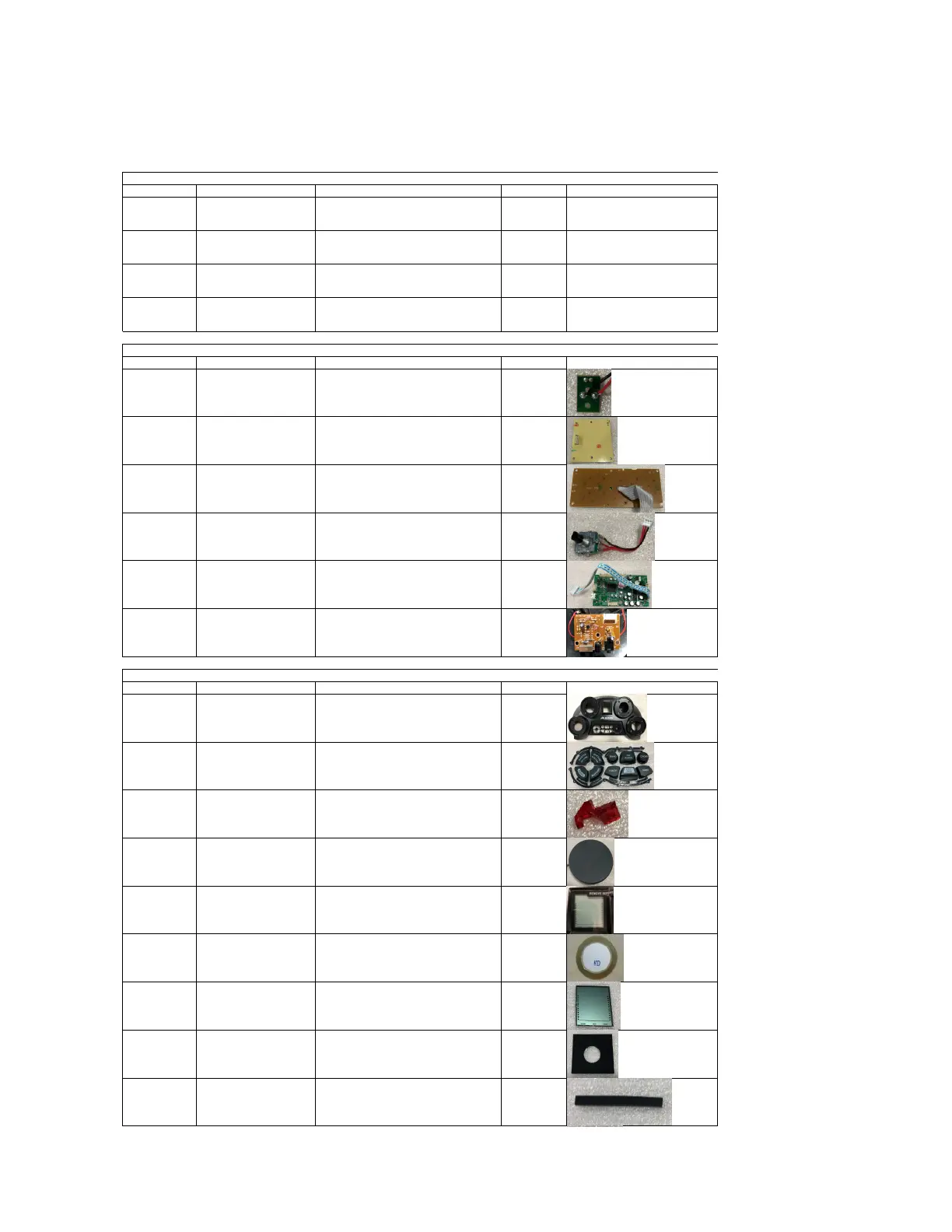

Parts Number Parts Name Parts Specification Quantity Picture/Number in Exploded Diagram
638010304 JP power adaptor
POWER ADAPTER
FJ-SW1260900800DP
1.00000
638010268 UK power adaptor
POWER ADAPTER
FJ-SW1260900800DB
1.00000
638010266 EU power adaptor
POWER ADAPTER
FJ-SW1260900800DE
1.00000
638010265 US power adaptor
POWER ADAPTER
FJ-SW1260900800DU
1.00000
Parts Number Parts Name Parts Specification Quantity Picture/Number in Exploded Diagram
10105001203 LED display ASSY DD60 4.00000
101040039001 LCD display ASSY DD50 1.00000
10103054501 Function board ASSY DD61 1.00000
101090074001 Encoder control board ASSY DD650 1.00000
1010116810 Main board ASSY DD61(A1) 1.00000
101060132004 Switch board ASSY DD61 1.00000
Parts Number Parts Name Parts Specification Quantity Picture/Number in Exploded Diagram
201030634 Top cabinet
HIPS injection black spray black silkscreen
white C“ALESIS”
1.00000
206040205 Joint plastic button
ABS Injection gray 430C silkscreen420C
outsize:129*72.6*7.2mm
1.00000
29901001301 Lamp shade HIPS Clarity red N/A 4.00000
212010609
General Small Drum pad DL-
1557
TPE Injection 432U with steel panel built-in
N/A outsize:φ89*23.7mm
4.00000
642010576 Display PC
Black background without script silksreen
RD100555
1.00000
625000001 Piezo KD-27B-35EPGP 3.5KHZ 30nf 4.00000
6180001300 LCD
FY-10139ARP TN Negative Reflective Viewing
Direction 6:00
1.00000
631040089 LCD EVA Soft Gasket 49*45*2.5mm 1.00000
629030028 Zebra conduct bar 45*2*4.7mm Pitch=0.25 No protcet deep gray 2.00000
Product Name Compact kit 4
Compact Kit 4 (LDSW A1) Spare Parts List
Date of Create 27-12-2019 Version: R1
Project Code LDSW(A1)
CM Alesis
Power-related Parts 電源相關部件
PCB Parts PCB部件
Cosmectic Parts 外觀部件

Alesis compactkit 4 Specifications

General

Brand	Alesis
Model	compactkit 4
Category	Drums
Language	English
