6.1Technicaldata
TheAlfaLavalAgitatorisavailableinvariousconfigurationsandisconfiguredtosolvethespecificapplication.Thereforespecific
informationlikeweight,size,criticaloscillationspeedanddutiescanbefoundinthesuppliedAlfaLavalquotationagreement.

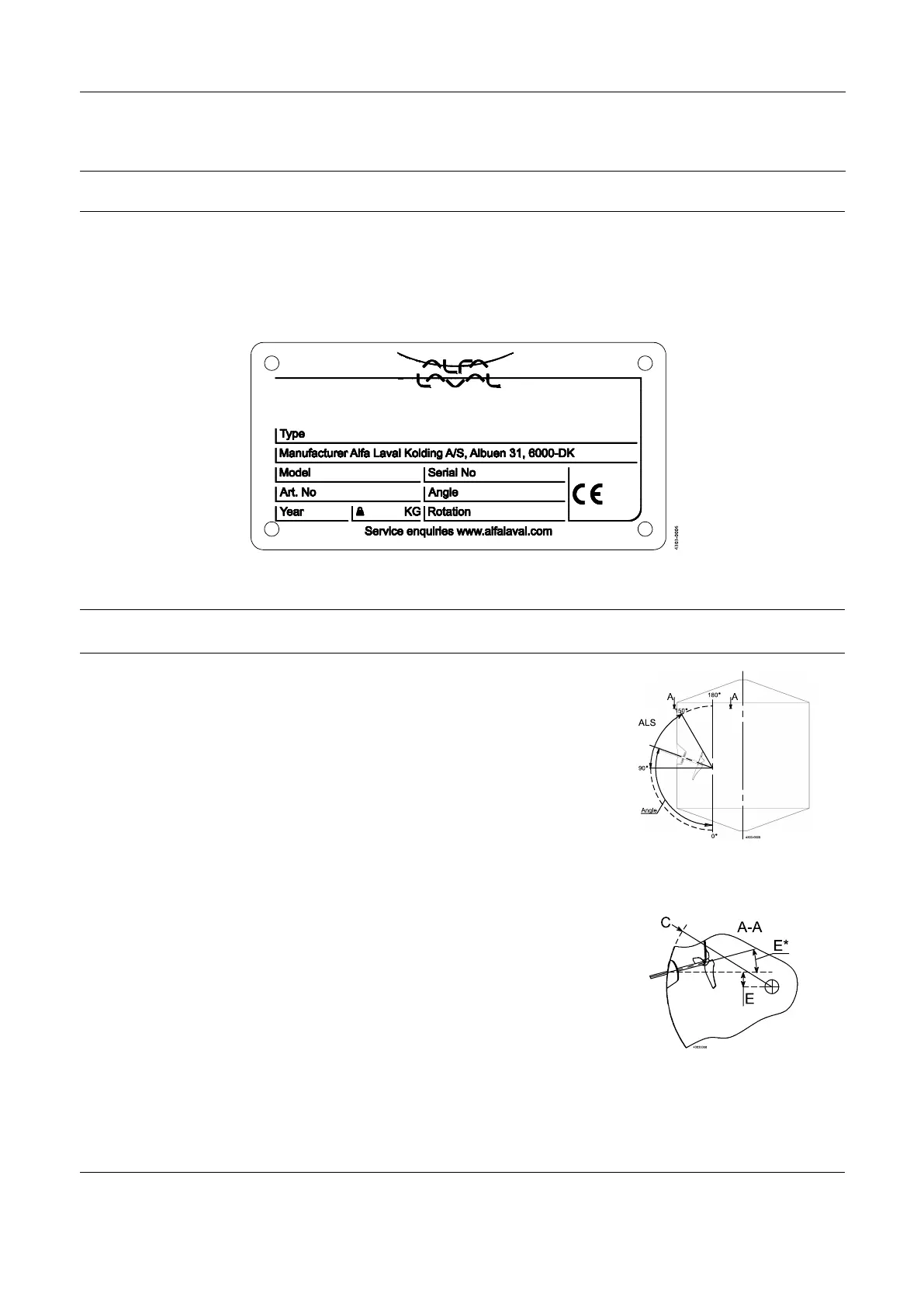

ImportantinstallationinformationaboutweightandmountinganglecanbefoundonthesuppliedAgitatornameplateas
shownontheillustration.
6.2MountingangleforsidemountedAgitatortypeALS
ToensureoptimalagitationthesidemountedAgitatormustbeinstalledinthemounting
anglespecifiedonthenameplate,asdescribedintheAlfaLavalquotationagreement
andasshownontheillustration.
ThesidemountedAgitatormustalsobeinstalledineitheranoffsetdistance(E)from
thecenterofthetankoritmustbeinstalledanoffsetangle(E*)fromthecenterofthe
tankasshownonillustrationsectionA-A
Thedistance(E)canbecalculatedasfollows:
E=Cxtan(5-7°),whereC=tankradius
Iftheoffsetangleischosenitmustbeasfollows:E*=5-7°
NOTE NOTE
NOTE
IncertaincasestheoffsetangleE*isrecommendedtobelarger-e.g.10-12°.
-itwillbecommunicatedviatheAlfaLavalquotationagreement.
