Instruction Manual, Gunclean Toftejorg 270FT Mark I Page 15
IM-TE102766-3-EN10
Technical Data (continued)
Design throw length
Note: Throw lengths are measured as max. horizontal throw length at static condition.The curve above
shows our design throw length. However, the maximum throw length is approximately 30-40% longer.
In general, effective throw length varies depending on jet transverse speed over surface, substance to be
removed, cleaning procedure and agent. The inlet pressure has been taken immediately before the
machine inlet. In order to achieve the performance indicated in the curves, the pressure drop in the supply
lines between pump and machine must be taken into consideration.
28
33
38
43
6 7 8 9 101112
[m]
[bar]

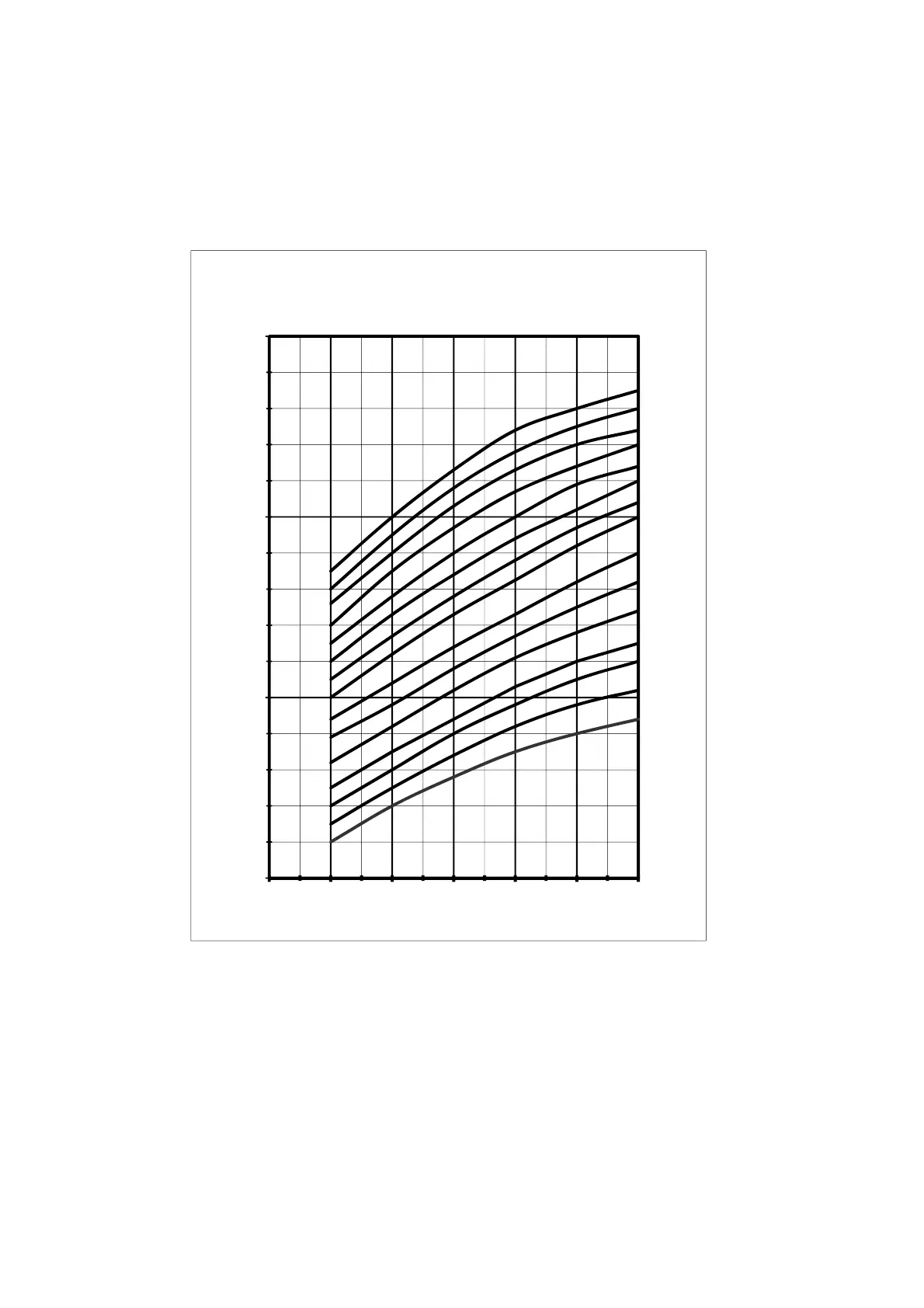

Performance diagram
Alfa laval Type: Gunclean Toftejorg 270FT
Single Nozzle
Design Throw Length*
Inlet
ressure
*Horizontal measured at static condition
Nozzle
size
18 mm
19
20 mm
21 mm
22 mm
23 mm
24 mm
25 mm
26 mm
27 mm
28 mm
30 mm
29 mm
31 mm
32 mm
