5 Mainten ance
Read the instructions carefully. The items refer to the parts list and service kits section.
Handle scrap correctly.
: Relates to the shaft seal.
S
S
t
t
e
e
p
p
8
8

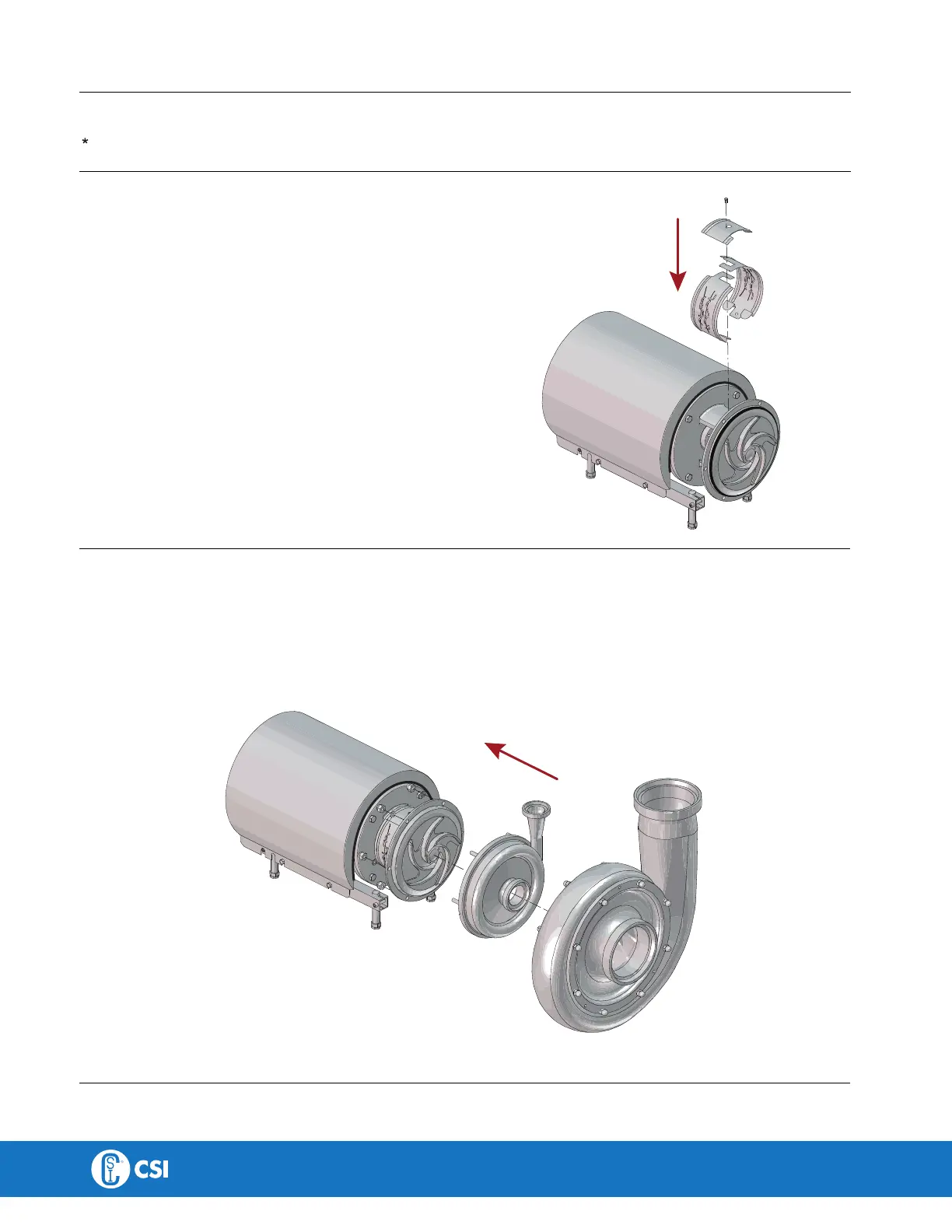

Fit safety guards (22) and screw (23) and tighten.
If pump is not supplied with flush connections, the holes in the
adaptor will be covered by the guard.
3000-0246
S
S
t
t
e
e
p
p
9
9
1.
A. LKH-5: Fit pump casing (29), clamps (55+55a), spring washers (56a) and screws (56).
B. LKH-10 to -90: Fit pump casing (29), washers (24a) and cap nuts (24).
2. Adjust pump casing to the right position.
3.
A. LKH-5: Tighten nuts (20) for back plate (25) and tighten screws (56).
B. LKH-10 to -90: Tighten nuts (20) for back plate (25) and tighten cap nuts (24), according to torque values in chapter 6
Technical data.
3000-0247
LKH-85 and LKH-90
