Alfa Laval LKH - Page 40

5 Mainten ance
Read the instructions carefully. The items refer to the parts list and service kits section.
Lubricate the rubber seals before fitting them.
: Relates to the shaft seal.
S
S
t
t
e
e
p
p
9
9
Fit safety guard (22) and screw (23) and tighten.
3000-0246
S
S
t
t
e
e
p
p
1
1
0
0

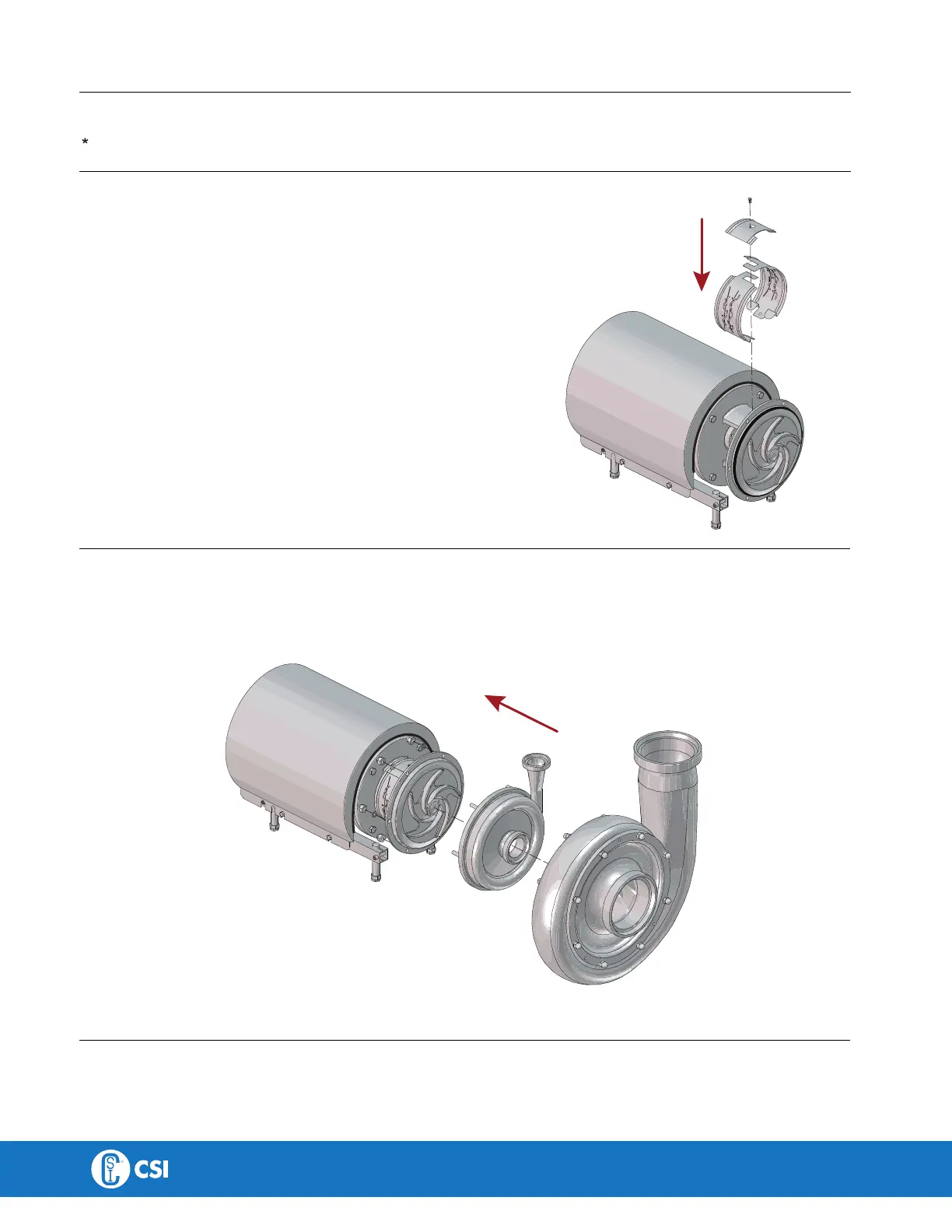

1. Fit pump casing (29).
2. Tighten nuts (20) for back plate (25).
3.
A. LKH-5: Fit clamps (55+55a), spring washers (56a) and screws (56) and tighten.
B. LKH-10 to -90: Fit washers (24a) and cap nuts (24) and tighten, according to torque values in chapter 6 Technical data.
3000-0247
LKH-85 and LKH-90
