Alfa Laval M6 Manual

English Installation
4 Plate Heat Exchanger
EN
EN

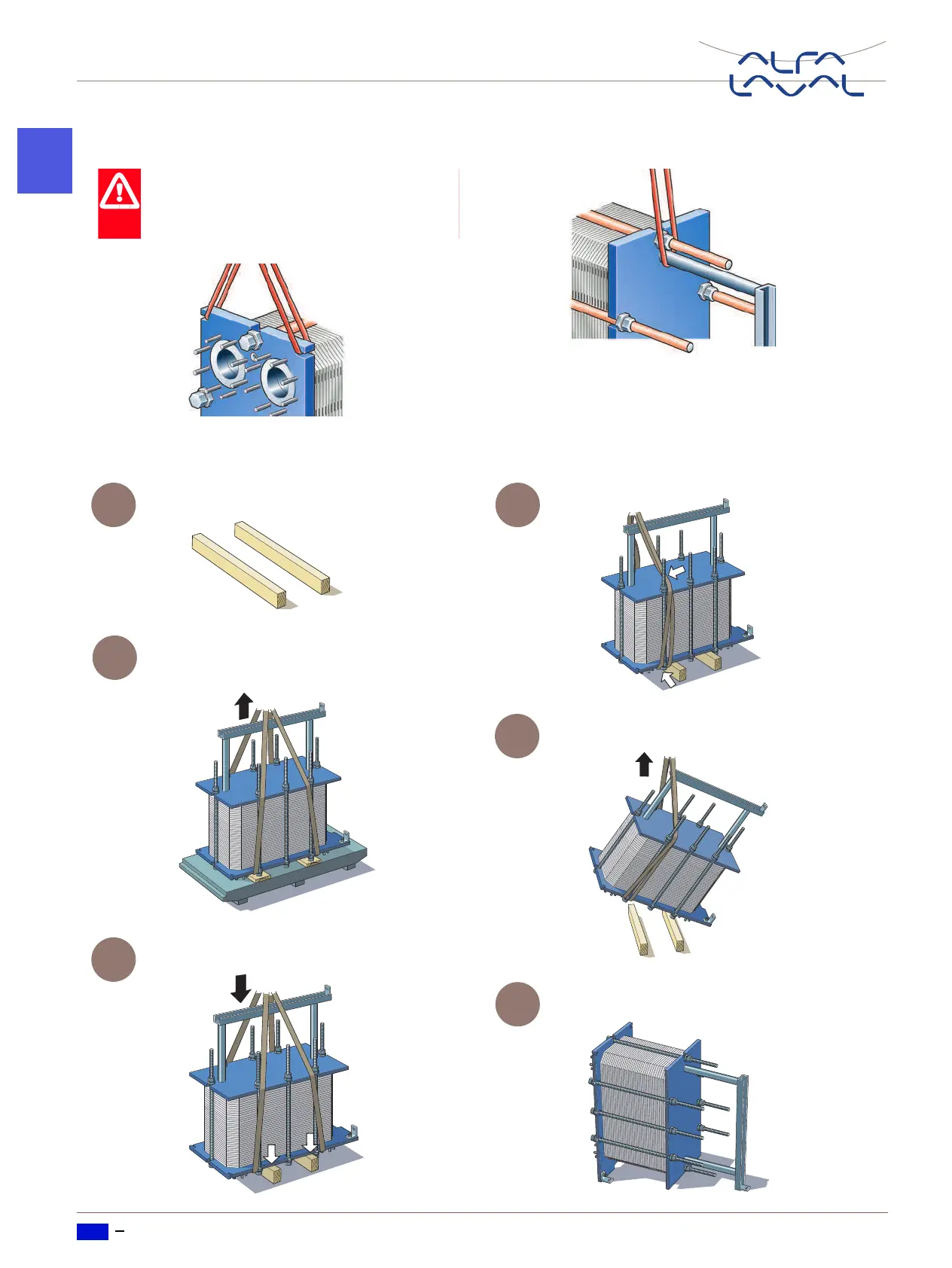

Lifting
Straps should be used when lifting. Place straps
according to picture.
Raising
Place two timber beams on the floor.
Lift the heat exchanger off pallet using e.g.
straps.
Place the heat exchanger on the timber
beams.
Place straps around one bolt on each side.
Lift the heat exchanger off the timber
beams.
Lower the heat exchanger to horizontal
position and place it on the floor.
Warning!
Never lift by the connections or the studs
around them.
1
2
3
4
5
6

Alfa Laval M6 Specifications

General

Type	Plate Heat Exchanger
Gasket Material	NBR, EPDM, Viton
Model	M6
Connections	Flanged
Application	HVAC
Frame Material	Carbon Steel
Temperature Range	-20°C to 150°C
Plate Thickness	0.5 mm
Plate Material	Stainless Steel
