Alfa Laval M6 User Manual

Installation

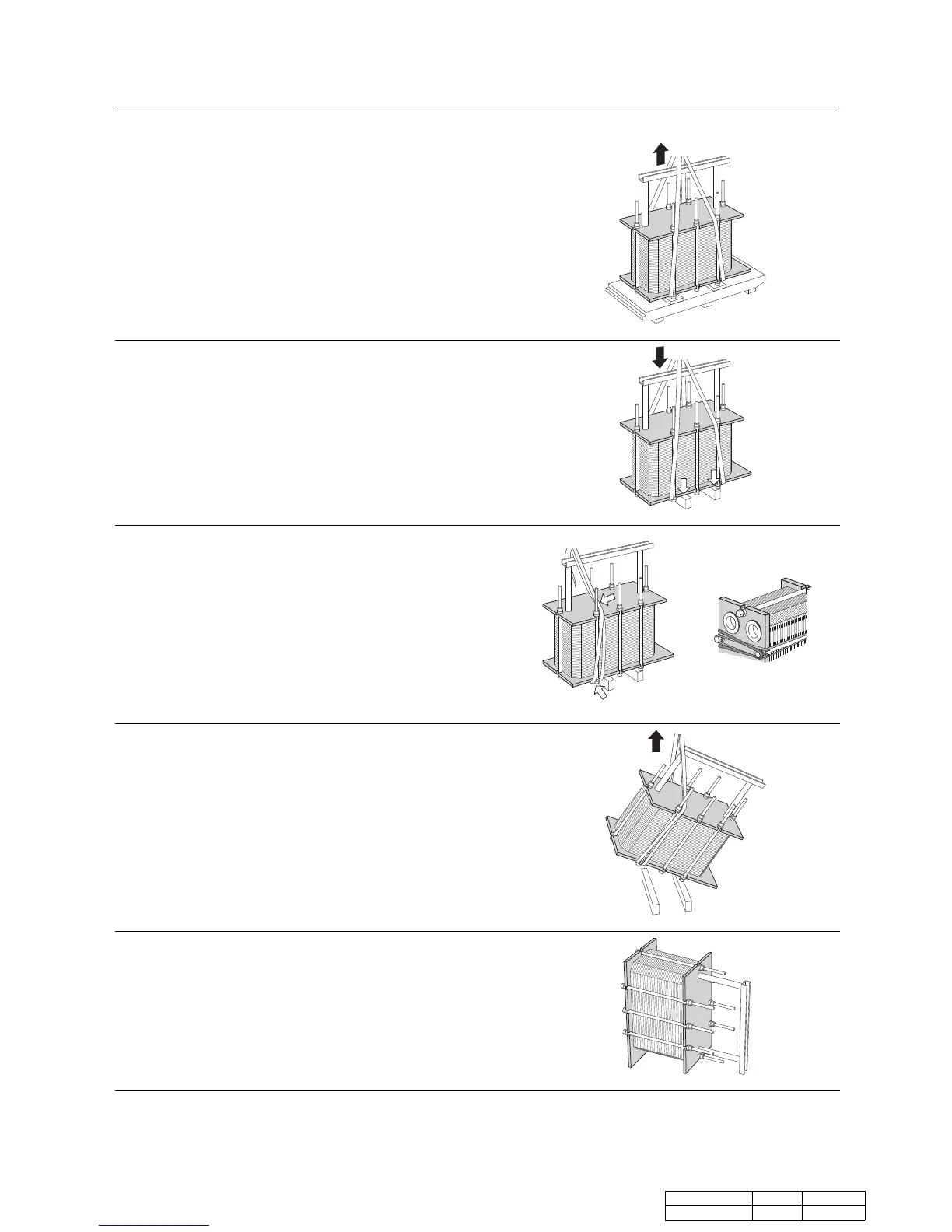

Step 2
Li ft the heat exchanger off the pallet using e.g. straps.
Step 3
Place the he at exchanger on the timber beams.
Step 4
Place straps around one bolt on each side.
Step 5
Li ft the heat exchan ger off the timber beams.
Step 6
Lower the heat ex changer into a horizonta l position and place
it on the floor.
Docum
en t ID
Langu
age
Editi
on
14 Instruction Manual - Plate Heat Excha ngers 3490010217 EN 2016-06

Alfa Laval M6 Specifications

General

Type	Plate Heat Exchanger
Gasket Material	NBR, EPDM, Viton
Model	M6
Connections	Flanged
Application	HVAC
Frame Material	Carbon Steel
Temperature Range	-20°C to 150°C
Plate Thickness	0.5 mm
Plate Material	Stainless Steel
