English Description
2 Plate Heat Exchanger
eng
Function
The plate heat exchanger consists of a pack of
corrugated metal plates with portholes for the pas-
sage of the two fluids between which heat transfer
will take place.
The plate pack is assembled between a frame
plate and a pressure plate and compressed by
tightening bolts. The plates are fitted with a gasket
which seals the channel and directs the fluids into
alternate channels. The plate corrugation pro-
motes fluid turbulence and supports the plates
against differential pressure.

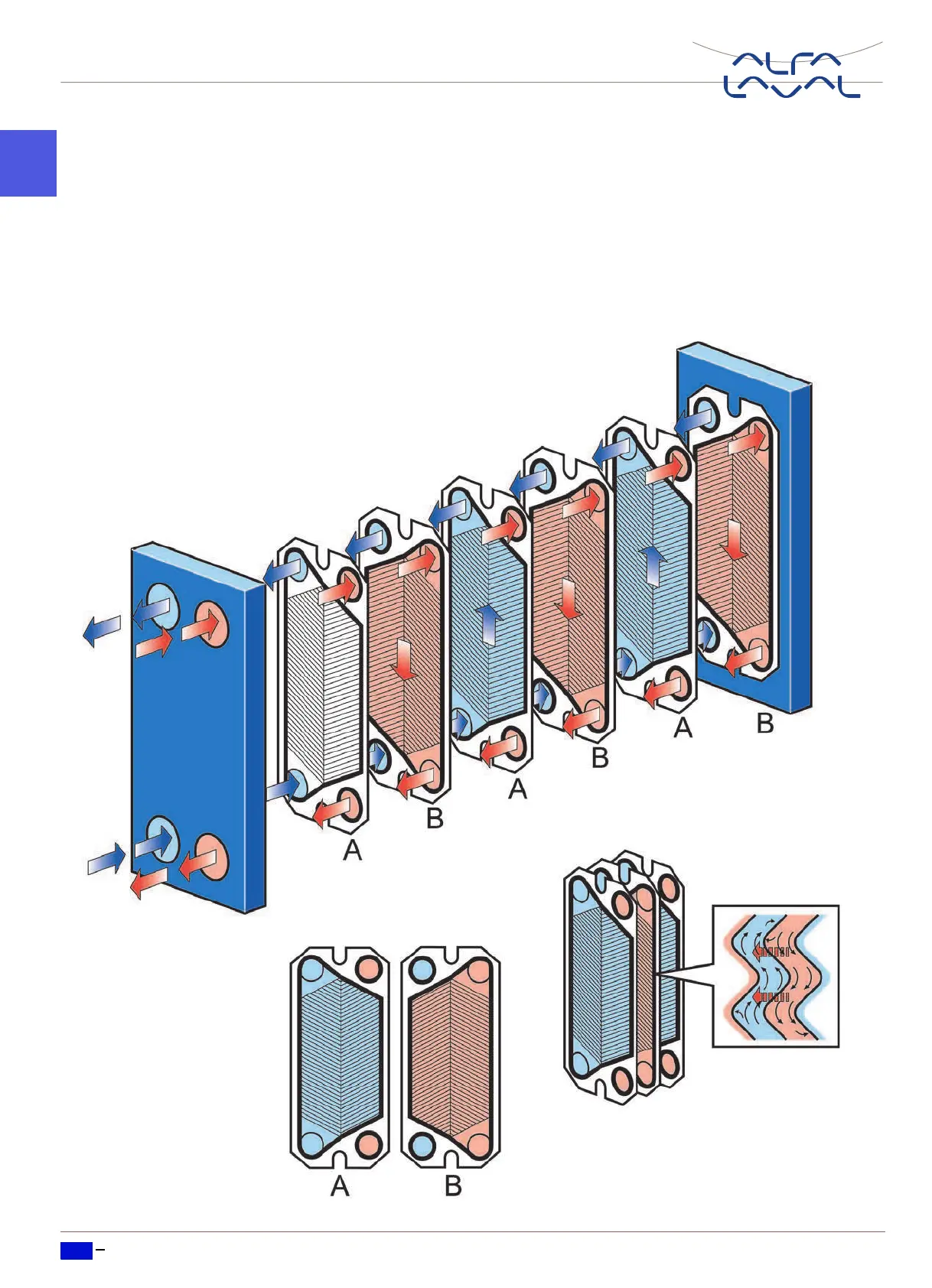

The B-plate is a plate
hanging with the chev-
ron pointing upwards.
The A-plate is a plate
hanging with the chevron
pointing downwards.
