OPERATION INSTRUCTIONS

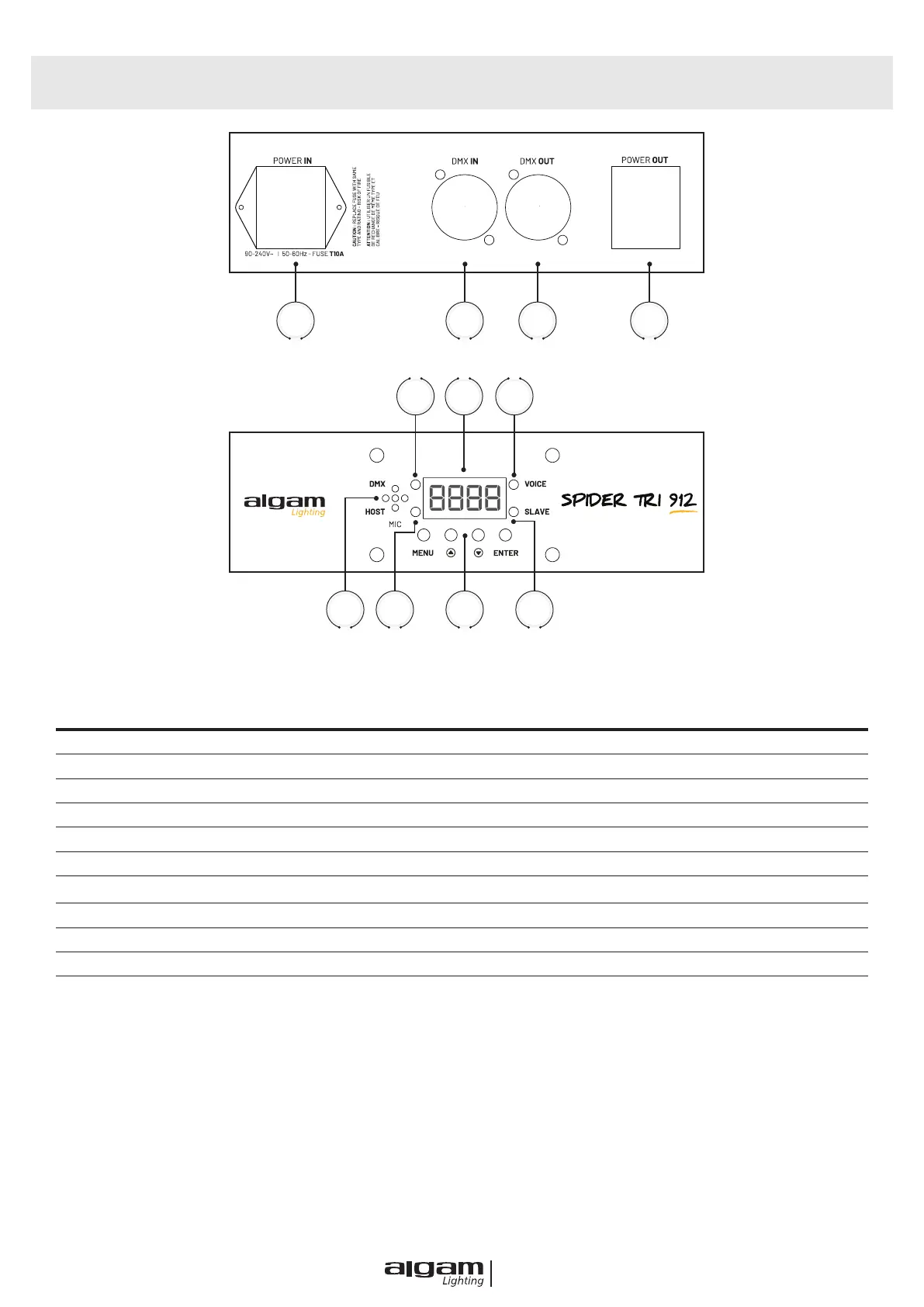

FUNCTION DESCRIPTION
1 Power IN Power input socket, built-in protective tube and spare tube
2 DMX IN 3PIN male XLR interface for FMX communication
3 DMX OUT 3PIN female XLR interface for FMX communication
4 Power OUT Power output connect with next light
5 DMX On if DMX mode active
6 LED display For menus and functions setting
7 Voice
On if sound mode active
8 Microphone Receiving the audio signal through a microphone
9 Host On if master mode active
10 Keyboard For menu navigation
11 Slave On if slave mode active
m
0.5
m
0.5
1
9
5
108 11
2 3 4
6 7
