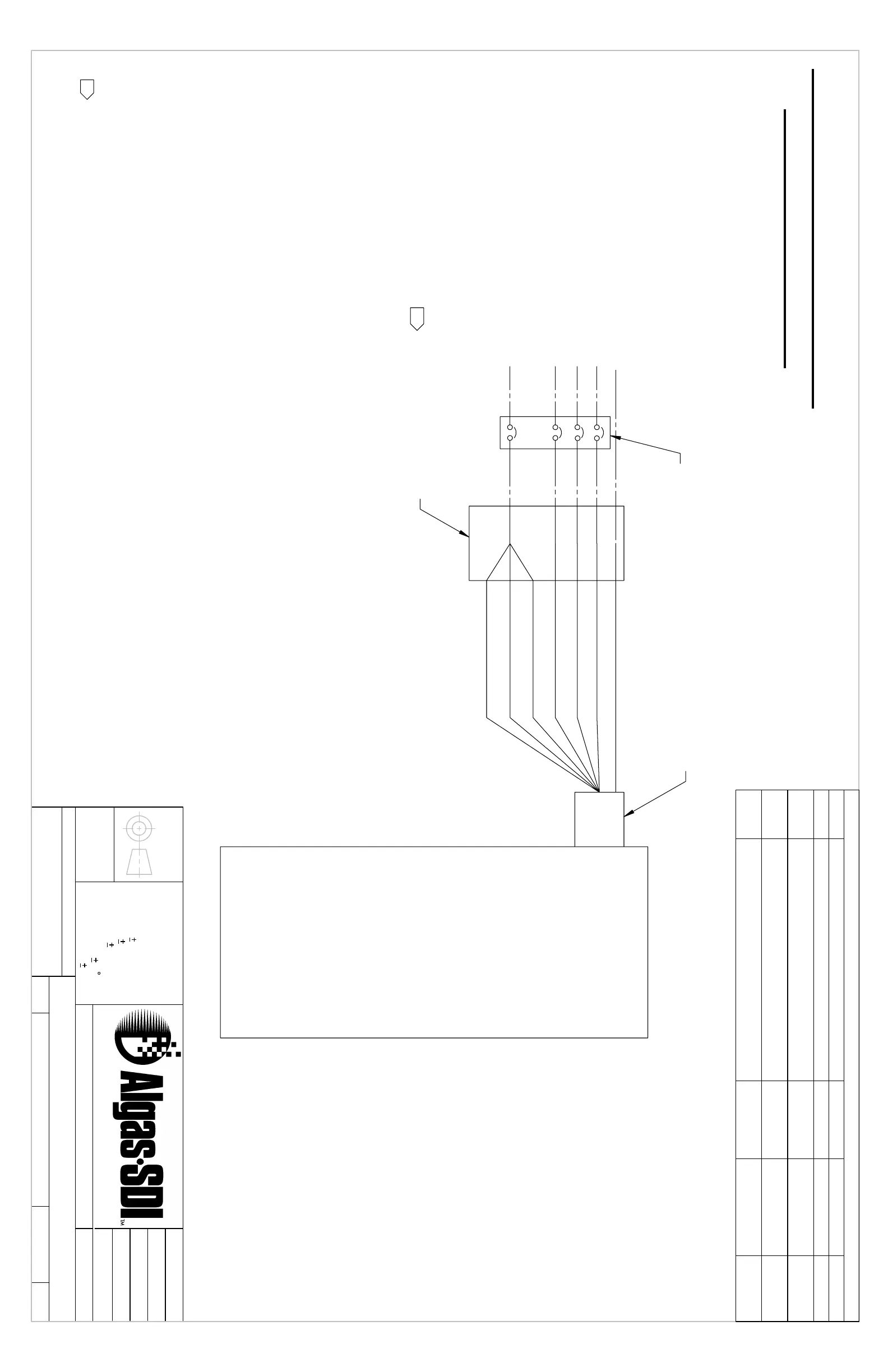

3-PHASE WIRING SCHEMATIC
WYE CONFIGURATION
BREAKER
TYPE "D"
NEUTRAL
L1
GROUND
ELECTRICAL SERVICE
DISCONNECT
BY OTHERS
SEAL-OFF
DO NOT TWIST
ZIMMER VAPORIZER
N3
L3
N2
L2
N1
L1
GRN/GREEN
L2
L3
NOTE:
FOR BREAKER SIZE, PLEASE REFERENCE THE ELECTRICAL SPECIFICATION
1.
IN THE OPERATIONS MANUAL
L1, L2, L3 TO NEUTRAL VOLTAGE: 100VAC - 277VAC
2.
FOR JUNCTION BOX SIZING PLEASE REFERENCE THE ELECTRICAL SERVICE
3
SECTION OF THE MANUAL.
3
CONDUIT BOX BY OTHERS
REVISIONS
REV.
DESCRIPTION
DATE
NAME
ECR/ECN
A
INITIAL RELEASE
9/7/2018
AAS
B
UPDATED WIRE NAMES
ENLARGED IMAGE AND CENTERED
ADDED SINGLE PHASE TRIPLE BREAKER SHT 3
9/17/2018
AAS
C
FIXED SPELLING ERRORS IN NOTES
ADDED PAGE 4 DETAILING 3-PHASE DELTA WIRING
CONFIGURATION
10/21/2020
BDZ
D
ELIMINATED 1-PHASE, 1- BREAKER CONFIGURATION
2/15/2021
RWP
151 S. Michigan St., Seattle, Washington. USA 98108
Tel: (206) 789-5410 Fax: (206) 789-5414
Drawn By:
Checked By:
Approved By:
Date:
Scale:
Job #
Part #
Title:
Dwg. #
Size:
Sht. No.:
Rev.:
TOLERANCES
UNLESS OTHERWISE
SPECIFIED
B
DO NOT
SCALE
DRAWING
AAS
ASDI STD
1
of
3
N/A
0903-7002
D
9/7/2018
1:4 AND NOTED
INTERPRET THIS DRAWING IN ACCORDANCE
WITH ANSI/ASME Y14.5-2009
BDZ
THIS DRAWING IS PROPRIETARY AND CONFIDENTIAL
AND SHALL NOT BE REPRODUCED OR USED IN ANY
MANNER DETRIMENTAL TO ALGAS-SDI'S INTERESTS.
ALL RIGHTS RESERVED.© COPYRIGHT ALGAS-SDI
.X
0.10
.XX
0.030
.XXX
0.010
ANGLE
1
FRACTIONS
1/4"
THIRD ANGLE
PROJECTION
ZIMMER 100/150KG WIRING SCHEMATIC,
3 PHASE, 4-WIRE (Wye)
To Next Page
