ALIBI ALI-NVR5000P Series Quick Setup Guide

2 www.Observint.com
© 2014 Observint Technologies, Inc. All rights reserved.

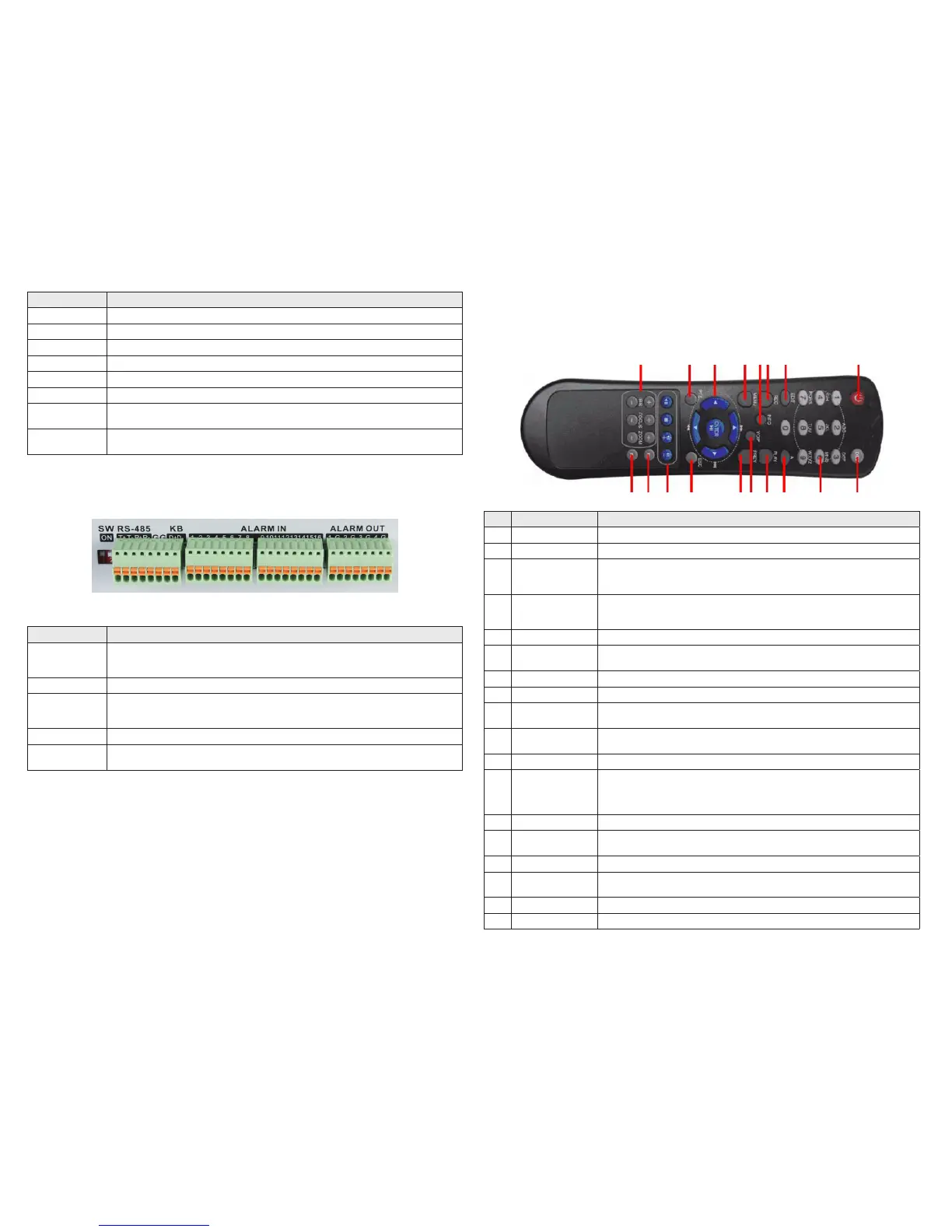

Remote Control
The enter key on the remote control or the front panel has the same function as a mouse left click. The IR Range of the remote control is 10
meters. The buttons on the remote control correspond with the buttons on the front panel.
23
18
9
17
7 5
6 4
11141518 16
1213 10
Item Name Function
1 POWER Power on/o the device.
2 DEV Enables/Disables Remote Control.
3 Alphanumeric Buttons
Switching to the corresponding channel in Live view or PTZ Control mode.
Inputting numbers and characters in Edit mode.
Switching between dierent channels in All-day Playback mode.
4 EDIT Button
Editing text elds. When editing text elds, it will also function as a Backspace button to delete the character in front of the
cursor. On checkbox elds, pressing the EDIT button will tick the checkbox.
In Playback mode, it can be used to generate video clips for backup.
5 A Button Switching between input methods (upper and lowercase alphabet, symbols and numeric input).
6 REC Button
Entering the Manual Record settings menu.
In PTZ control settings, press the REC button and then you can call a PTZ preset by pressing Numeric button.
7 PLAY Button Playback, for direct access to playback interface.
8 INFO Button Reserved.
9 VOIP button
Selecting all items on the list;
In live view or playback mode, it can be used to switch between main and spot video output
10 MENU button
Press the button will help you return to the Main menu (after successful login).
Press and hold the button for 5 seconds to turn o audible key beep.
11 PREV button Switch between single screen and multi-screen mode.
12 DIRECTION/ENTER buttons
Navigating between dierent elds and items in menus.
In Playback mode, the UP and DOWN button are used to speed up and slow down recorded video.
The LEFT and RIGHT buttons select the next and previous day of recordings.
In LIVE view mode, these buttons can be used to cycle through channels.
13 PTZ button Enter the PTZ Control mode.
14 ESC button
Return to the previous menu.
Press for Arming/disarming the device in Live View mode.
15 RESERVED Reserved for future usage.
16 F1 button
Selecting all items on the list when used in a list eld.
In PTZ Control mode, it will turn on/o PTZ light.
17 PTZ Control buttons Buttons to adjust the iris, focus and zoom of a PTZ camera.
18 F2 button Cycle through tab pages.
Item Description
RS-485, ALARMS IN/OUT See below.
AC 100V ~ 240V AC 100 V ~ 240 V power supply.
ON / OFF Switch Switch for powering the device on or o.
GROUND Terminal for ground. Connect to earth ground before powering on the NVR.
LAN Interface 10/100/1000BASE-T Ethernet network interface
USB interface Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
AUDIO OUT
CVBS AUDIO OUT - BNC connector for audio output. This connector is synchronized with CVBS video output
VGA AUDIO OUT - BNC connector for audio output. This connector is synchronized with VGA video output
Internal Ethernet switch
ports
16 ports for IP cameras. These ports provide Power over Ethernet (PoE) to the cameras.
RS-485, ALARMS IN/OUT
RS-485, Alarm IN / OUT terminations
Item Description
SW ON
RS-485 termination switch:
Up position is not terminated.
Down position is terminated with 120 Ω resister.
RS-485 (T+, T-, R+. R-) T+ and T- pins connect to R+ and R- pins of PTZ receiver respectively.
KB
Controller port:
D+, D- pin connects to Ta, Tb pin of controller.
For cascading devices, the rst NVR’s D+, D- pin should be connected with the D+, D- pin of the next NVR
ALARM IN (1 through 16) Alarm inputs 1 - 16. Alarm input is tied to ground through the alarm sensor.
ALARM OUT
(1-G through 4-G)
Alarm outputs 1 - 4 with ground terminations.
