Steps

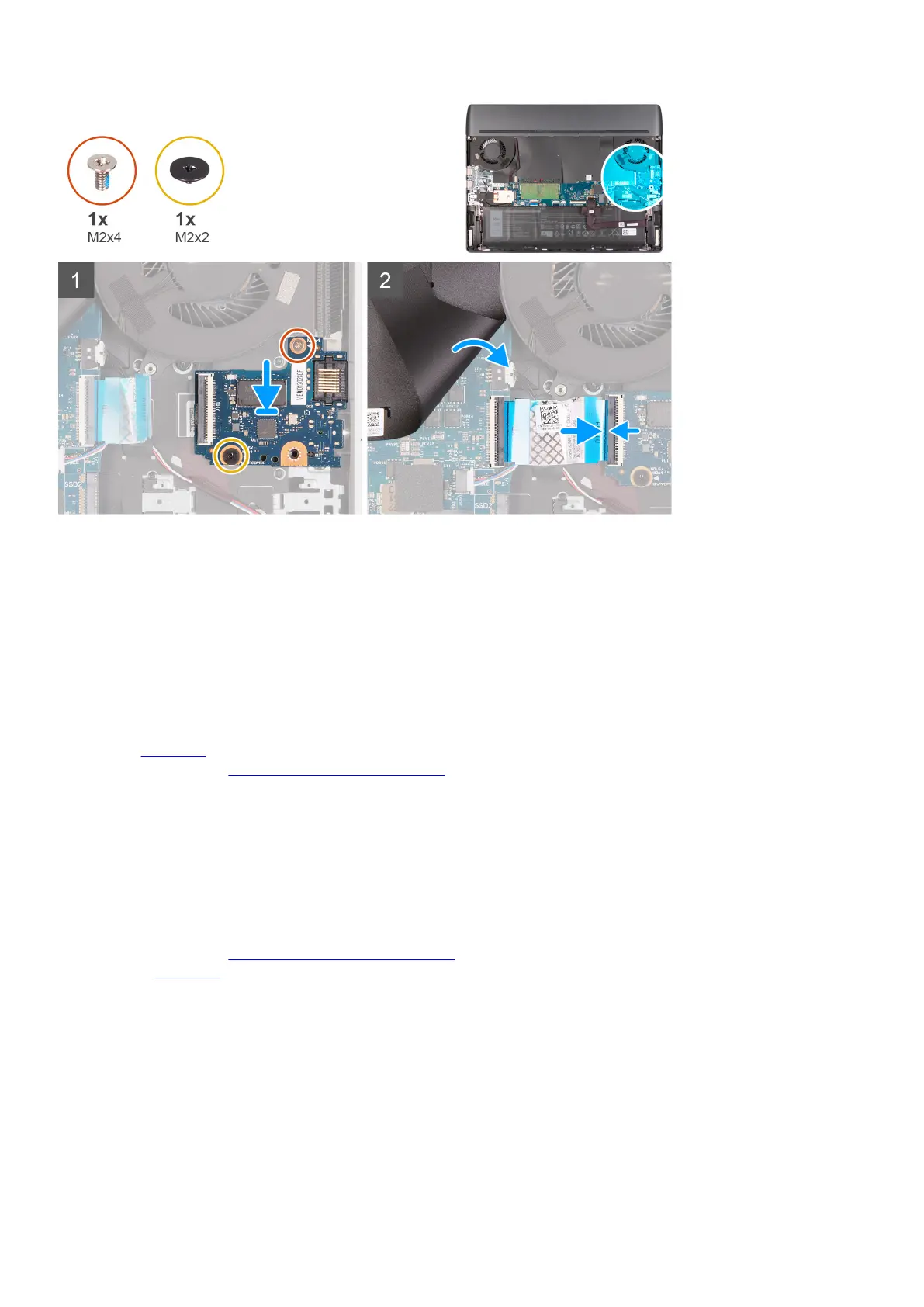

1. Peel back the system board Mylar.
2. Align and place the I/O board on the palm-rest and keyboard assembly.
3. Replace the screw (M2x4) that secures the I/O board to the palm-rest and keyboard assembly.
4. Tighten the captive screw (M2x2) that secures the I/O board to the palm-rest and keyboard assembly.
5. Connect the I/O-board cable to the I/O board and close the latch to secure the cable.
6. Place the system board Mylar back on the system board.
Next steps
1. Install the
base cover.
2. Follow the procedure in After working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the memory module and provides a visual representation of the removal procedure.
