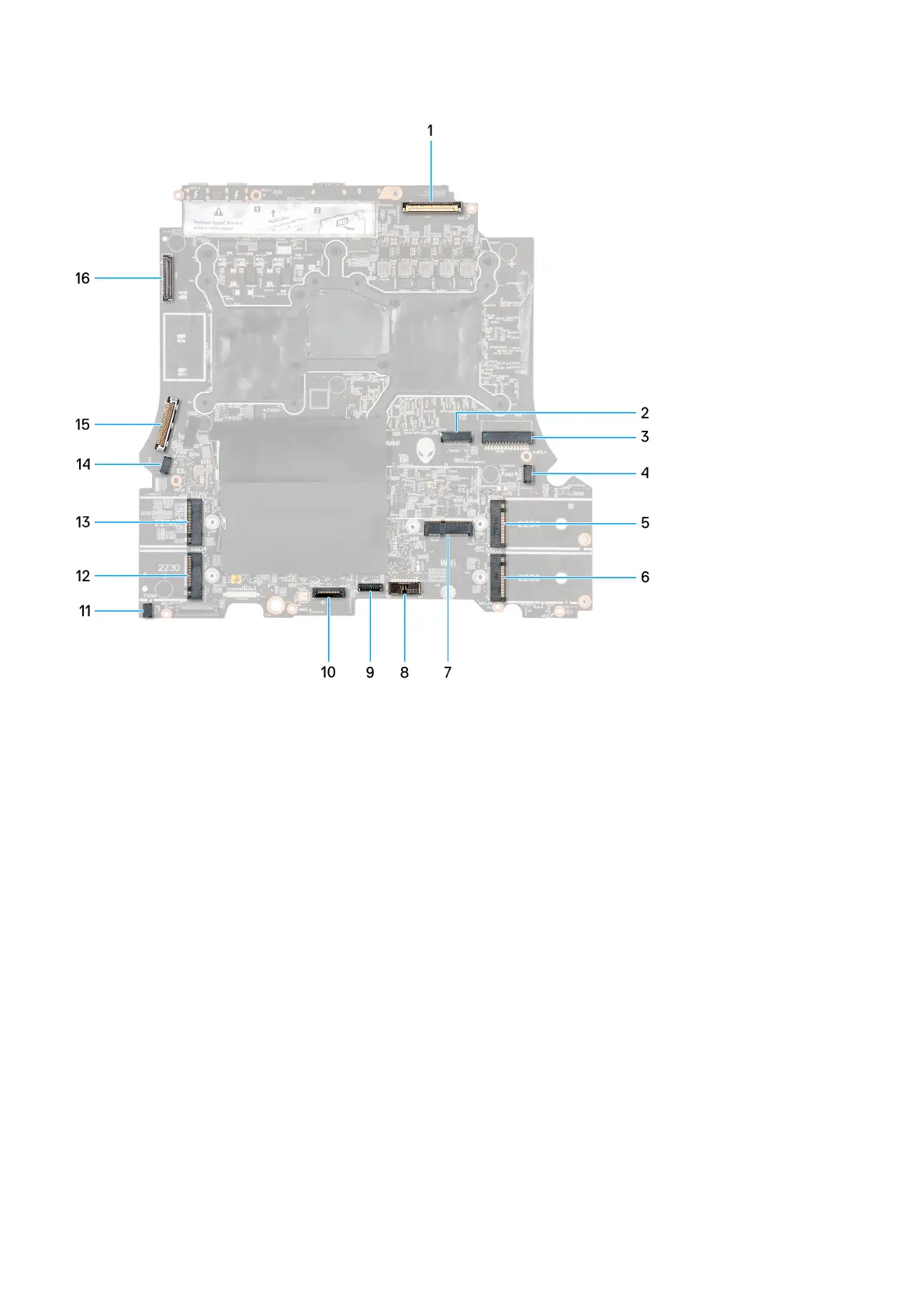

1. Display cable
2. Alien head LED-cable
3. Power-adapter cable
4. Right-fan cable
5. M.2 card slot for solid-state drive 1
6. M.2 card slot for solid-state drive 2
7. Wireless-card slot
8. Battery cable connector
9. Touchpad cable
10.Keyboard controller and keyboard backlight
11. Left-fan cable 1
12. M.2 card slot for solid-state drive 4
13. M.2 card slot for solid-state drive 3
14. Left-fan cable 2
15.Rear I/O board cable
16.Camera cable
The following image(s) indicate the location of the system board and provides a visual representation of the installation procedure.
