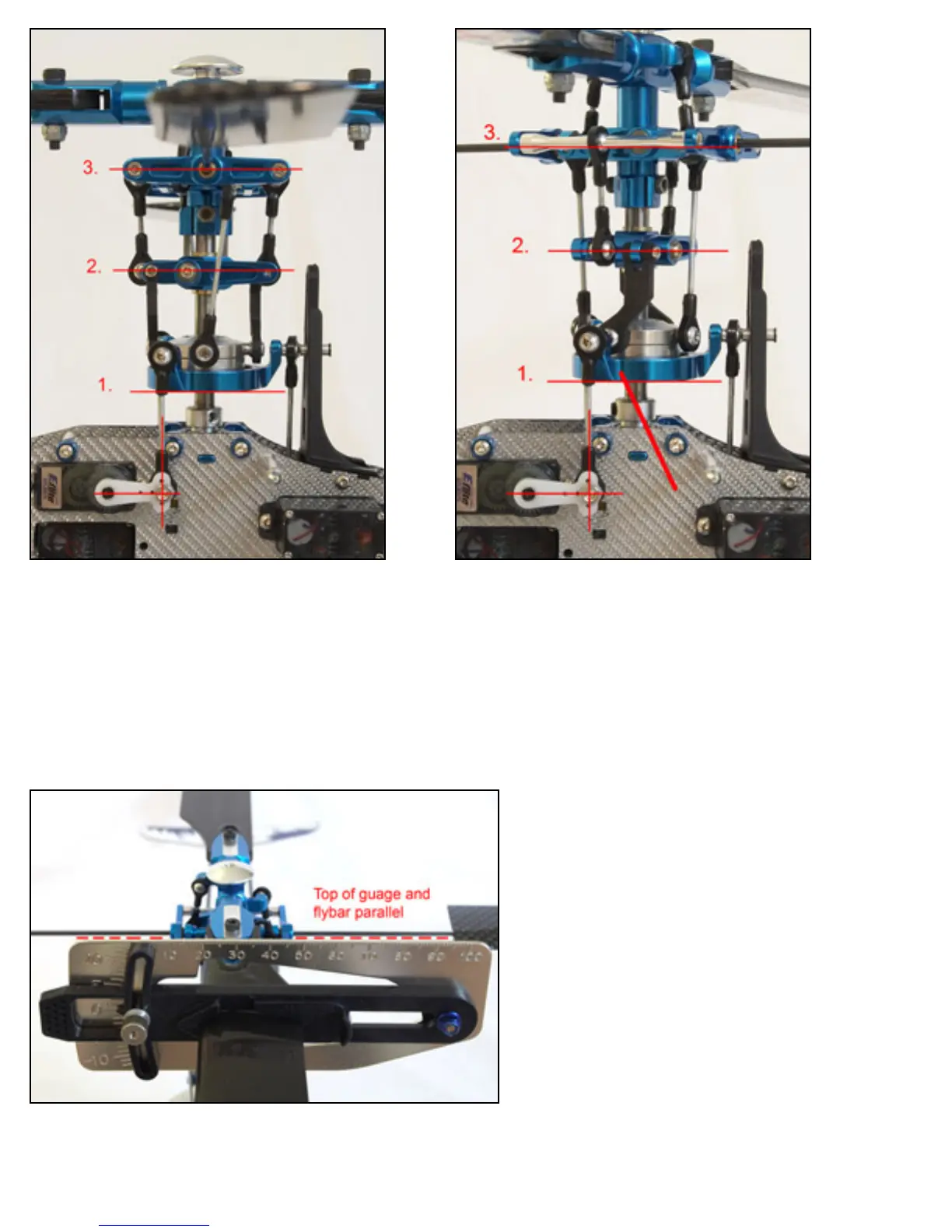

Figure E Figure G
● Setting 0 pitch
❍ Check that transmitter sticks are at center.
❍ Set your pitch guage to 0 and place it on one of the main blades.
❍ Hold the flybar and blades level by lifting on the guage.
❍ If all is well your flybar and top of guage will be parallel showing your pitch is at 0.
❍ Do the same for the other blade.
❍ You should be right on if not, very close. You can make slight adjustments using the short linkage
connected to the blade grips.
Figure H
● Now we can set your positive.
❍ Set your pitch guage to +10
❍ Place it on one of the main blades.
