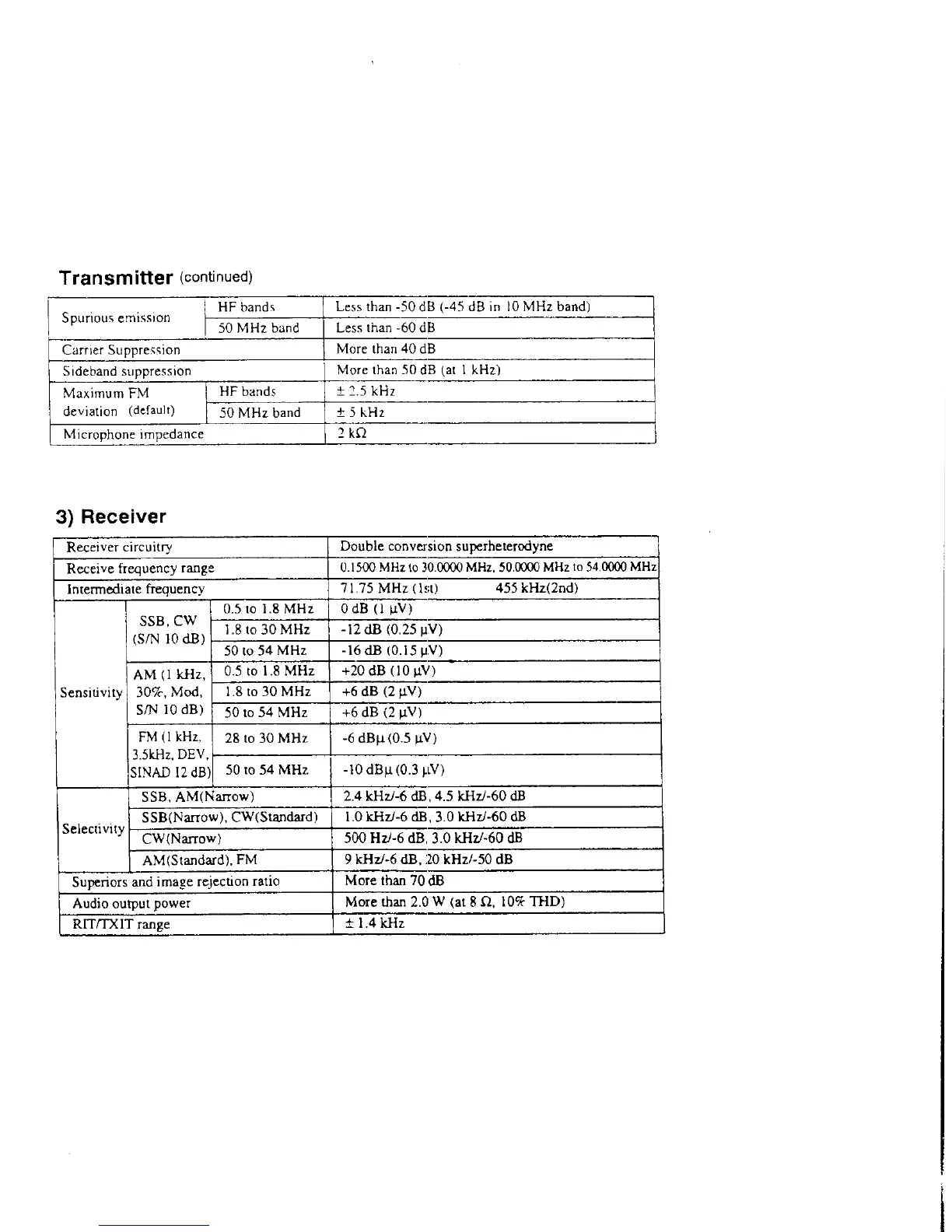

Transmitter (continued)
Spurious emission
HF bands Less than -50 dB (-45 dB in 10 MHz band)
50 MHz band
Less than -60 dB
Carrier Suppression
More than 40 dB
Sideband suppression
More than 50 dB (at 1 kHz)
Maximum FM
deviation (default)
HF bands
±2.5 kHz
50 M Hz band
± 5 kHz
Microphone impedance
2 kfi
3) Receiver
Receiver circuitry
Double conversion superheterodyne
Receive frequency range
0.1500 MHz to 30.0000 MHz. 50.0000 MHz to 54.0000 MHz
Intermediate frequency
71.75 M H z (1st) 455 kHz(2nd)
Sensitivity
SSB, CW
(S/N 10 dB)
0.5 to 1.8 M Hz
0 dB (1 pV)
1.8 to 30 MHz
-12 dB (0.25 (j.V)
50 to 54 M Hz
-16 dB (0.15 pV)
AM (1 kHz,
30%, Mod,
S/N 10 dB)
0.5 to 1.8 M H z
+20 d B (1 0 n V )
1.8 to 30 M Hz +6 dB (2 pV)
50 to 54 MHz
+6 dB (2 |iV)
FM (1 kHz.
3.5kHz, DEV,
S1NAD 12 dB)
28 to 30 MHz -6 dB|i(0.5 |aV)
50 to 54 MHz
-10 dB ji (0.3 }.iV)
Selectivity
SSB, AM (Narrow) 2.4 kHz/-6 dB, 4.5 kHz/-60 dB
SSB(Nartow), CW(Standard) 1.0 kHzy-6 dB, 3.0 kHz/-60 dB
CW (Narrow)
500 Hzy-6 dB, 3.0 kHzA60 dB
AM(Standard), FM
9 kHz/-6 dB, 20 kHz/-50 dB
Superiors and image rejection ratio
More than 70 dB
Audio output power
More than 2.0 W (at 8 Q, 10% TH D )
RIT/TXIT range
±1 .4 kHz
