FULL WIDTH SIDESHIFT FRAME
Motor Removal
1.

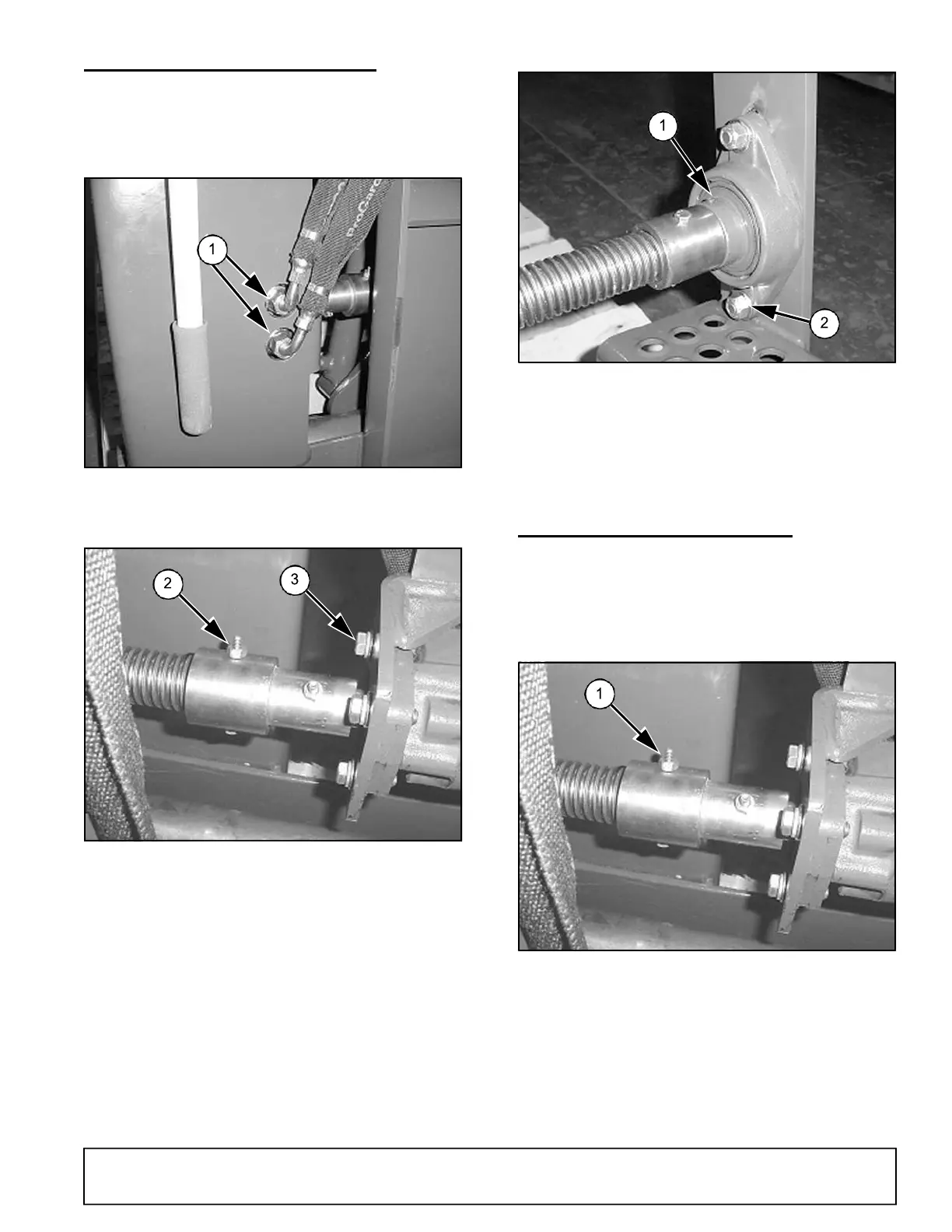

Remove and cap the motor hoses (1) shown in
Figure 1.
Figure 1
2.
Remove 1/4" cross bolt (2) as shown in Figure 2.
Figure 2
3.
Remove four 3/8"motor bolts (3).
4.
Remove the motor.
Bearing Removal
1.
Perform steps 1 through 4 of Motor Removal.
2.
Loosen the setscrews (1) as shown in Figure 3.
Figure 3
3.
Slide shaft towards the motor side of the attach
frame until the bearing side coupler clears the
bearing.
4.
Remove two 1/2" bolts (2).
ACME SCREW REPLACEMENT
1.
Perform steps 1 through 4 of Motor Removal and
steps 2 through 4 of Bearing Removal.
2.
Remove1/4" bolts (1) and (2) as shown in Figures
4 and 5.
Figure 4
To Next Page
