3.
Place the nut flange in a vice and use a pipe
wrench to remove the nut from the flange.
Figure 5
3.
Slide couplers off the acme screw.
4.
Manually turn the acme screw to back it out of
the bearing side of the sideshift frame.
STORAGE

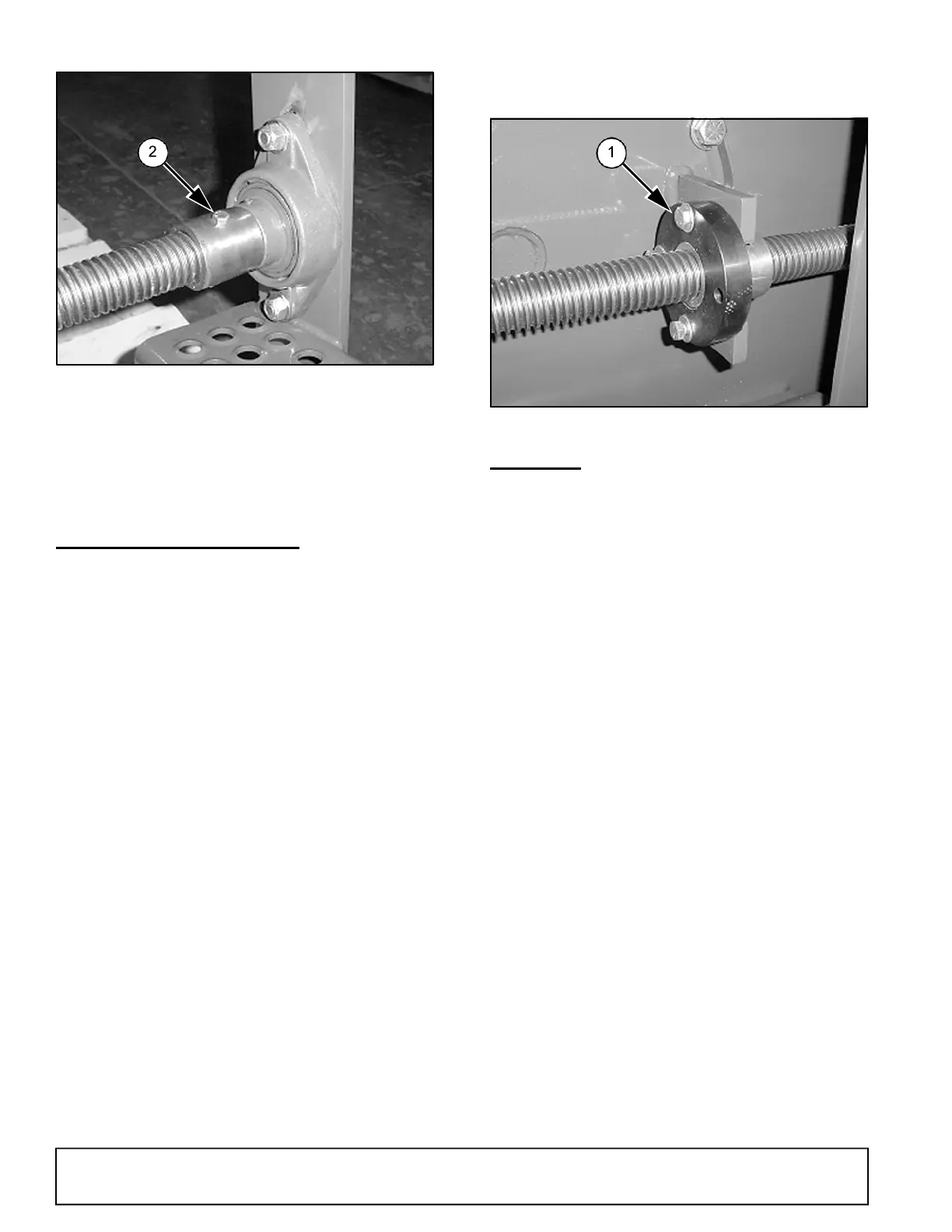

Figure 6
IMPORTANT
ACME NUT REPLACEMENT
1.
Perform steps 1 through 3 of Acme Screw
Replacement.
2.
Remove three 3/8” bolts (1) as shown in Figure 6.
■
The cold planer is shipped with hoses. Uncon-
nected hose ends should either be capped or have
quick disconnect fittings installed to prevent loss of
fluids or contamination.
■
Keep children and bystanders away from stor-
age area.
