ALLEN & HEATH 14:4:2 MixWizard WZ3 User Manual

wz3-1442_layout_1.doc Sheet 1 of 1
SYS-LINK V2 PCB +
HARNESS (OPTION)
003-259
SYS-LINK V2 IN
HARNESS (OPTION)
AL5731
SYS-LINK V2 OUT
HARNESS (OPTION)
AL5732
AL5633
AL5484
COPPER EARTH STRIP AA5488
SYS-LINK V2 IN
HARNESS (OPTION)
AL5732
INTERCONNECT
HARNESS AL5633
STEREO INPUT
FADERS
STEREO INPUT
FADERS
WZ
3

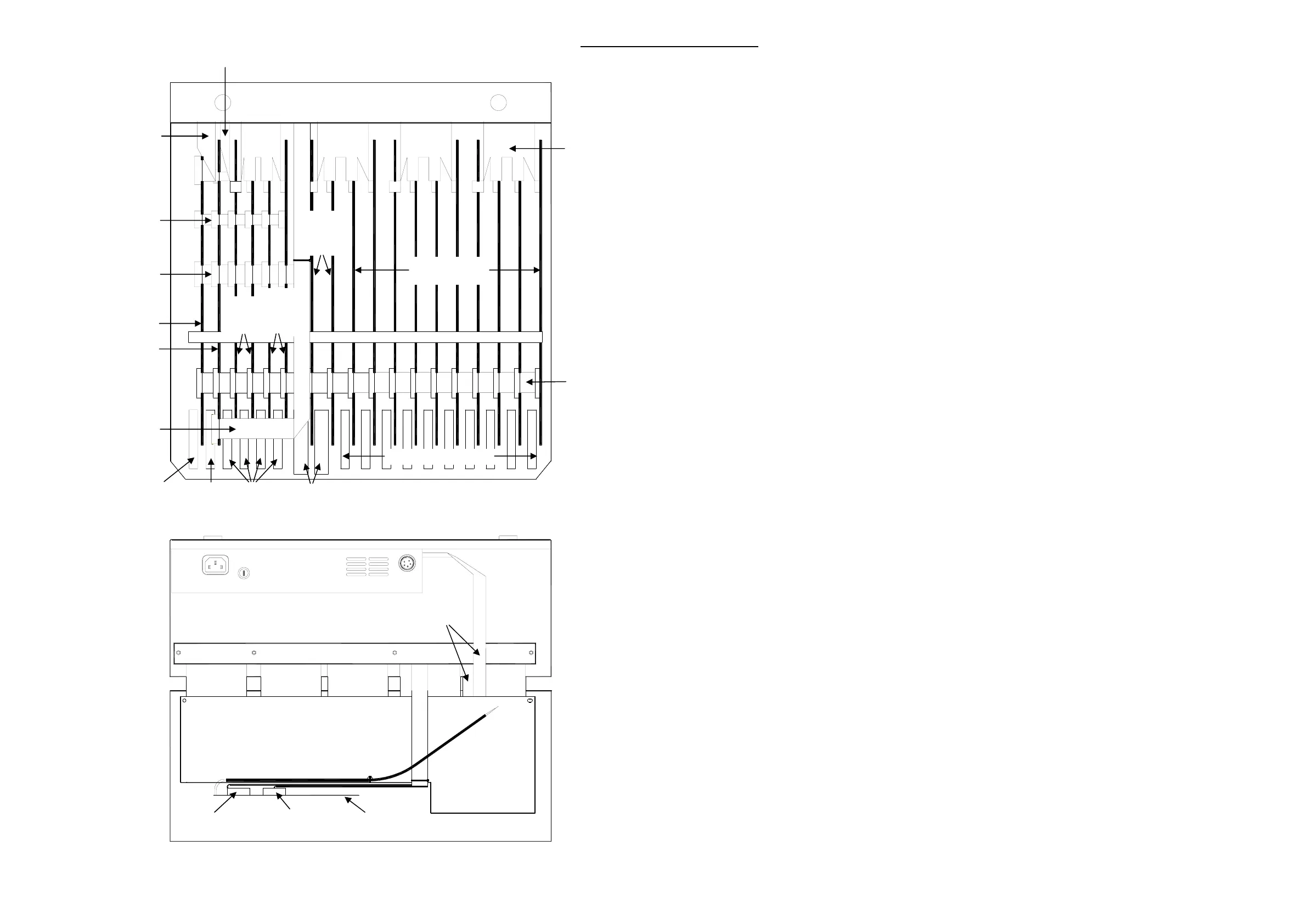

14:4:2 Internal Layout
Product .............................. W31442/100
.......................................... W31442/110
.......................................... W31442/120
.......................................... W31442/220
.......................................... W31442/240
Pack Assembly......................... 003-164
Main Assembly ......................... 003-205
PSU PCB.................................. 003-171
PSU Module ............................. 003-185
Mono Input PCB ....................... 003-208
Connector PCB ........................ 003-209
Group / Matrix PCB .................. 003-210
Stereo Input PCB ..................... 003-211
Left PCB ................................... 003-212
Right PCB................................. 003-213
Group PCB ............................... 003-240
SYS-LINK V2 PCB ................... 003-259
PSU MODULE 003-185
CLAMP BRACKET AA5497
AL5633
AL5633
AL5633
AL5489
CONNECTOR PCB 003-209
SYS-LINK V2 OUT
HARNESS (OPTION)
AL5731
INPUT TO CONNECTOR
HARNESS AL5463
POWER / LEFT
HARNESS AL5489
MASTER / RIGHT
HARNESS AL5484
MONO INPUT PCBs
003-208 x 10
MONO INPUT FADERS
LEFT PCB 003-212
RIGHT PCB 003-213
GROUP
PCBs
003-240
x 2
GROUP /
MATRIX
PCBs
003-210
x 2
STEREO
INPUT
PCBs
003-211
x 2
MAIN HARNESS AL5630
RIGHT
FADER
LEFT
FADER
GROUP
FADERS
