Qu Mixer Reference Guide 17 AP9372 iss.8

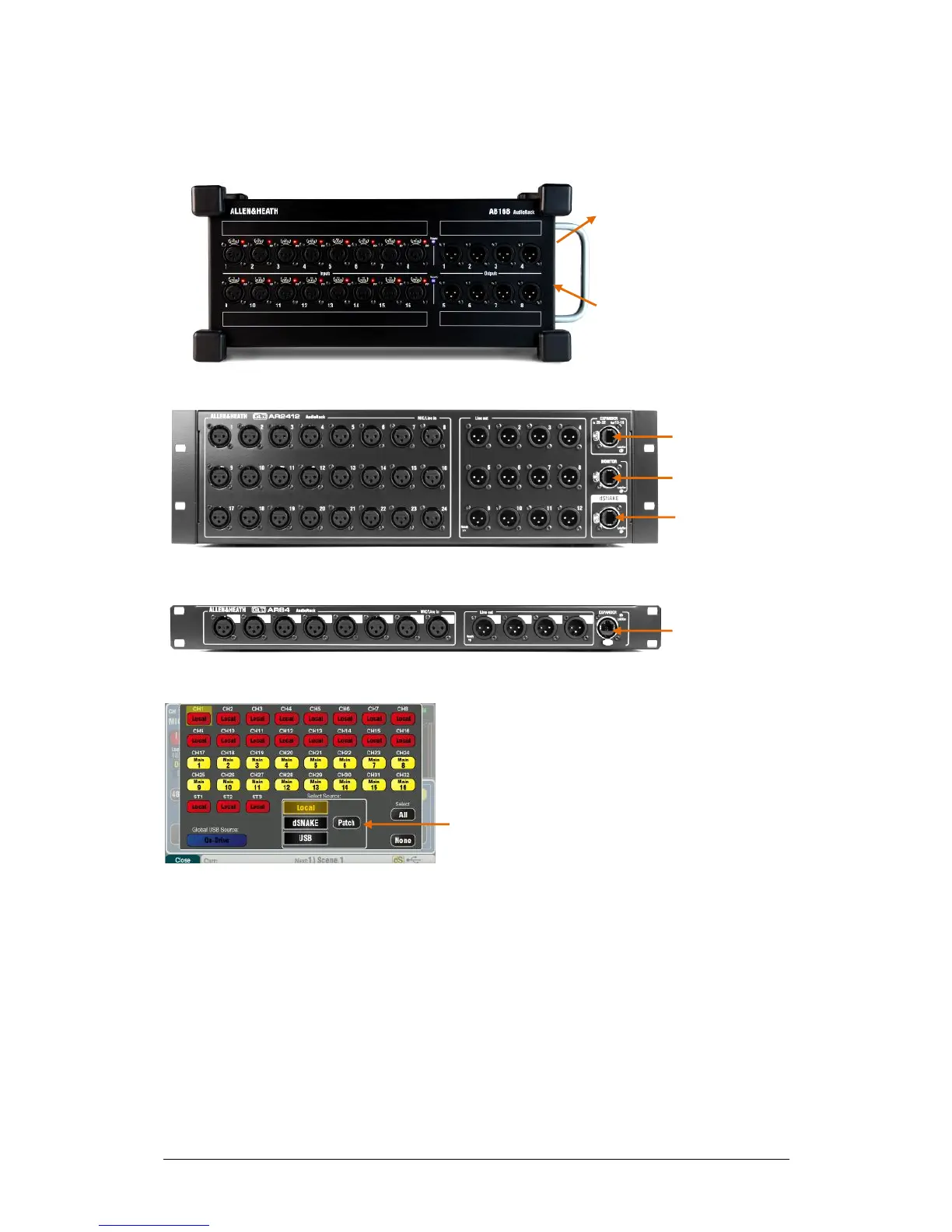

Available AudioRacks:
AB168 16 Mic/Line in, 8 Line out - Floor, shelf or rack mount
The AB168 AudioRack can be used as a stage box on the floor or a surface, or mounted in a 19” rack
using the optional rack ears.
AR2412 24 Mic/Line in, 12 Line out - Rack mount
AR84 8 Mic/Line in, 4 Line out - Rack mount
Inputs – Use the Preamp screen Fn key Source page
to choose either the local (rear panel) socket or a
remote (dSNAKE) socket for each channel source.
Red buttons show local sources selected, yellow
buttons show dSNAKE sources.
Any dSNAKE input socket can be patched to any
channel using the Setup / I/O Patch / dSNAKE In
screen. Sockets can be patched to more than one
channel.
The Qu-16, 24, 32 reset default is one-to-one mapping
of local sockets to the channels.
The Qu-Pac reset default is one-to one mapping of
local sockets to CH1-16, and dSNAKE 1-16 sockets to
CH17-32.
Adding an AudioRack does not expand the number
of Qu channels available.
Outputs – The Qu mixer outputs will appear
simultaneously at its rear panel sockets and also at the
sockets on the remote rack. AudioRack output sockets
are patchable. Qu outputs can be patched to the rack
sockets using the Setup / I/O Patch / dSNAKE Out
screen.
EXPANDER – To connect to an
AR84 or AB168 to add more
input and output sockets.
MONITOR – To connect to the
Allen & Heath ME personal
mixing system.
dSNAKE – To connect to the
Qu mixer using a Cat5 digital
snake.
EXPANDER – To connect to
the Expander port of the
AR2412, or connect directly to
the Qu mixer via its dSNAKE
port.
