ALLEN&HEATH TB1403 - Qu-16 Phantom Power Hot Plugging Page 4/6

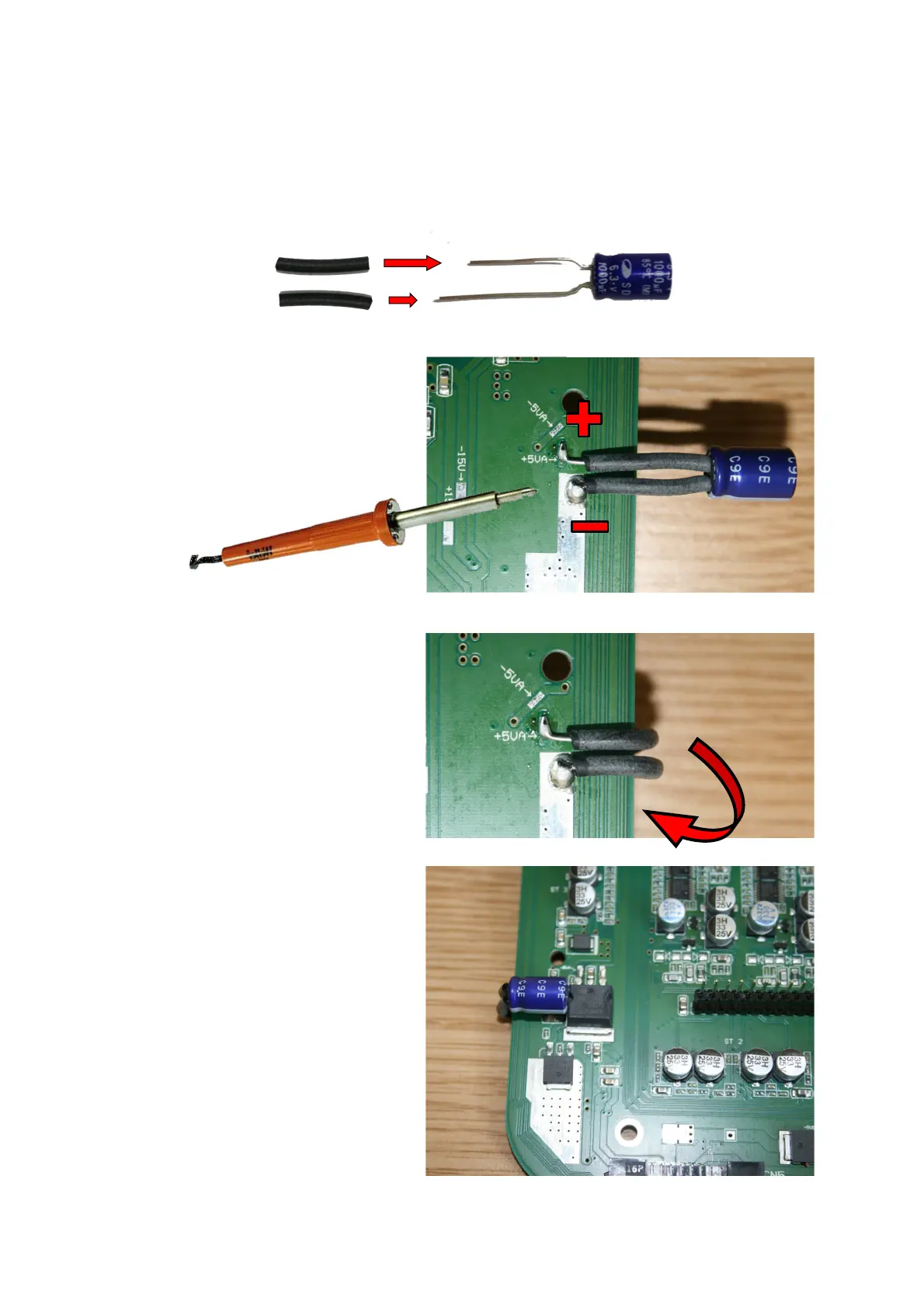

Solder Electrolytic 1000uF 6.3V capacitor to +5VA / GND
Place rubber sleeving on capacitor legs
Solder the positive (+) leg to +5VA
Solder the negative (—) leg of to GND
Bend the capacitor around the edge of the
PCB
