18 GL3300 USER GUIDE
Width Weight
GL3300-816 ..............................771mm ........................ 21kg
GL3300-824 ..............................1026mm ...................... 29kg
GL3300-832 ..............................1281mm ...................... 37kg
GL3300-840 ..............................1536mm ...................... 45kg
GL3300-expander.....................255mm ........................ 8kg
weight 5kg

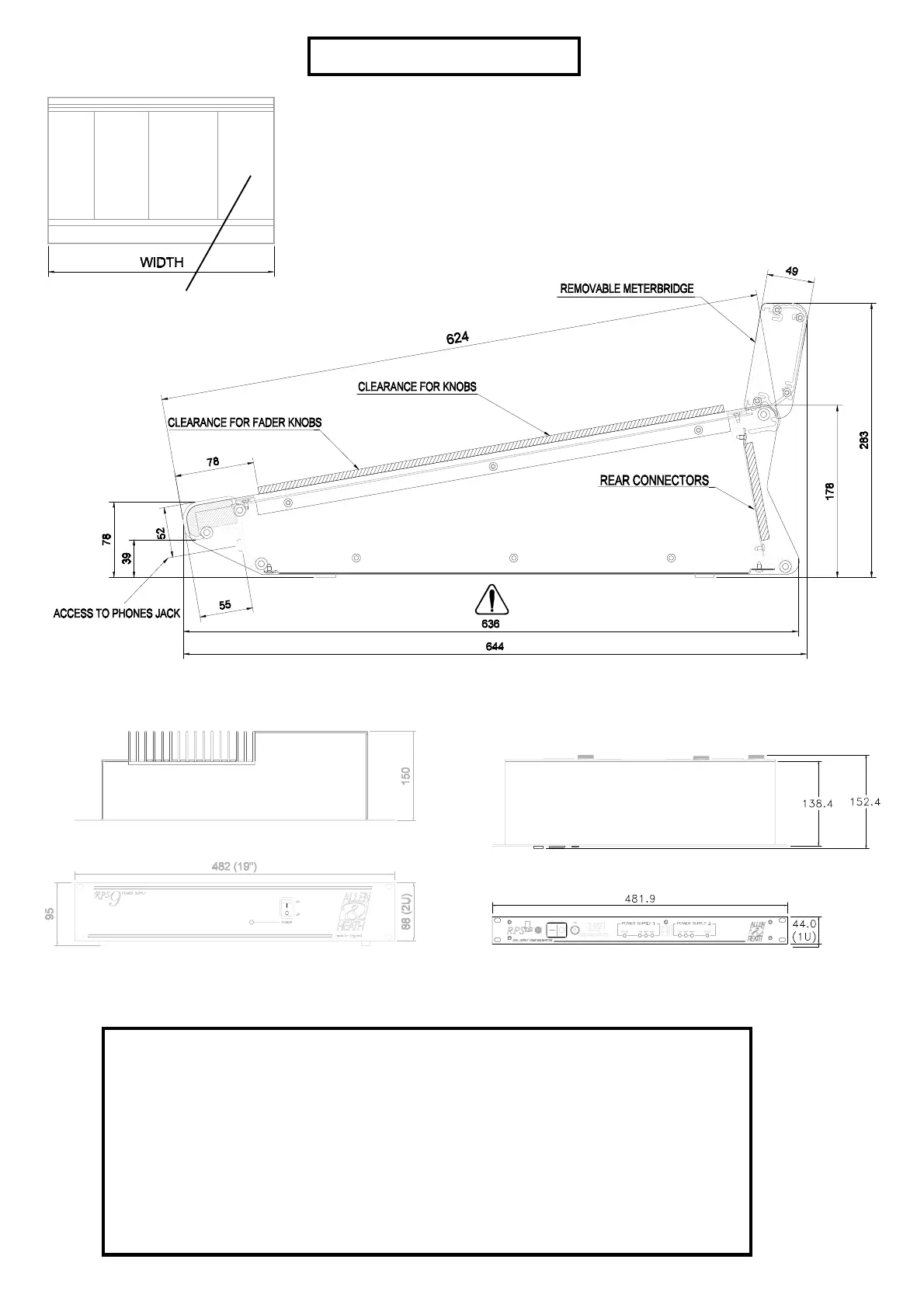

GL3300 CONSOLE
PACKING DIMENSIONS
weight 2.5kg
RPS9 POWER SUPPLY RPSD2 DUAL SUPPLY COMBINER
master
section
DIMENSIONS
LENGTH DEPTH WIDTH WEIGHT in Kg (lbs)
GL3300- 816............................. 1312 ............... 335 ............................... 795 ...............................38 (84)
GL3300- 824............................. 1312 ............... 335 ............................... 795 ...............................45 (99)
GL3300- 832............................. 1823 ............... 335 ............................... 795 ...............................55 (121)
GL3300- 840............................. 1823 ............... 335 ............................... 795 ...............................59 (130)
GL3300 Expander ................... 78 ................. 310 ............................... 45 ...............................11 (24)
GL3300- M24 Meterbridge......1250 ............... 130 ............................... 230 ...............................4 (9)
GL3300- M32 Meterbridge......1270 ............... 130 ............................... 230 ...............................5 (11)
GL3300- M40 Meterbridge......1540 ............... 130 ............................... 230 ...............................6 (13)
RPSD2 ......................................560 ................. 70 ................................. 377 ...............................4 (9)
RPS9 SPARE ...........................532 ................. 270 ............................... 185 ...............................7 (15)
PACKED MEASUREMENTS in mm.
NOTE: When fitted in a flightcase, support the
rear of the console along the lower extrusion
beam and not the side trim plates.
Stereo inputs fitted to right of master section
Note: Stereo inputs are not available on 16 channel console.
È

ALLEN & HEATH GL3300 Specifications

General

Aux Sends	6
Power Supply	Internal
Type	Analog
Number of Channels	40
Phantom Power	Yes
Direct Outputs	Yes
Metering	LED
Frequency Response	20Hz - 20kHz
Noise (EIN)	-128dB
