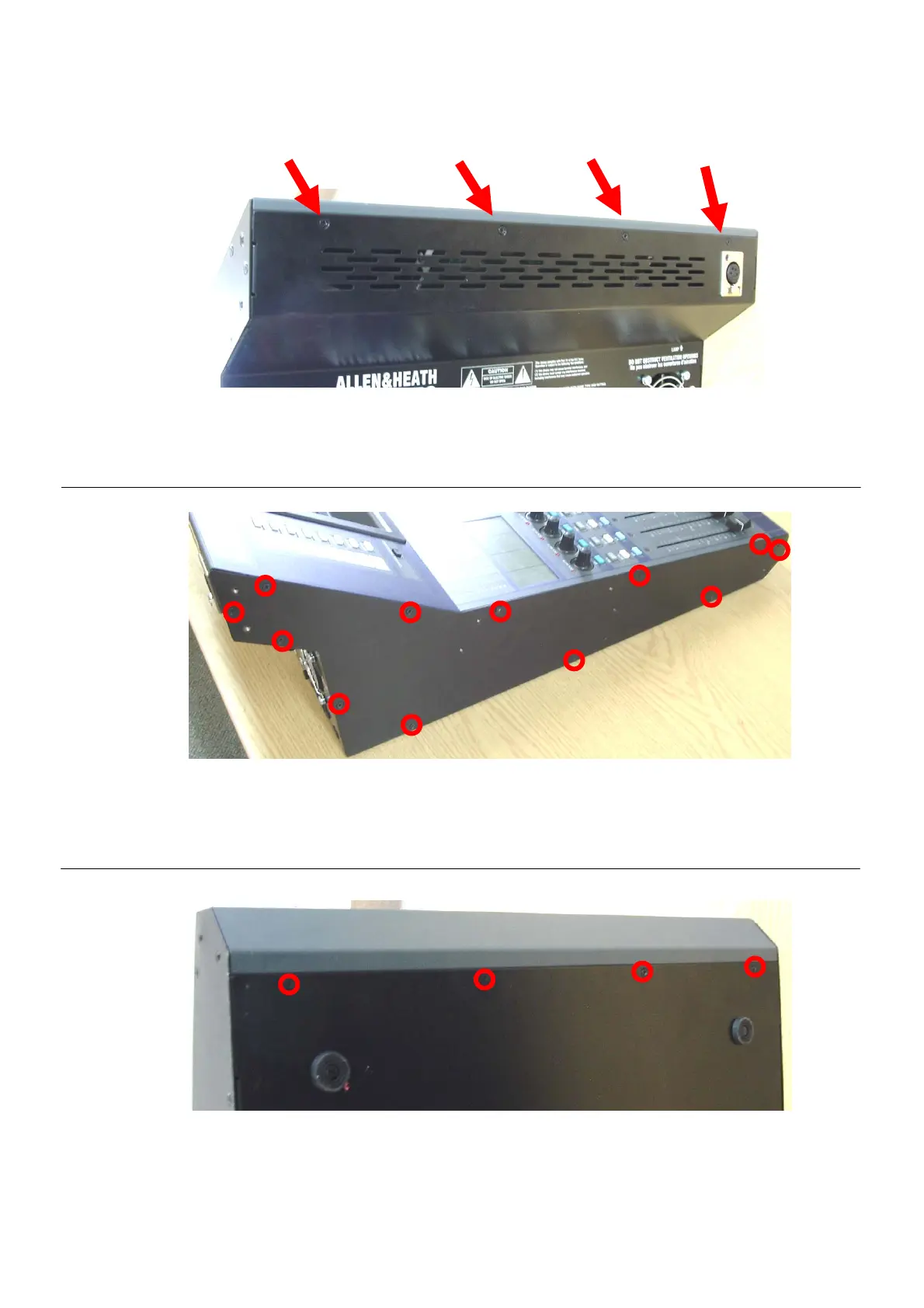

ALLEN&HEATH iLive-R72 service manual AP7893 _3 5
001 Remove rear screws
002 Remove plastic trims
and side screws
003 Remove front screws
Separate front panel from base panel.
