User Guide – AP8997 iss.3 12 ALLEN&HEATH

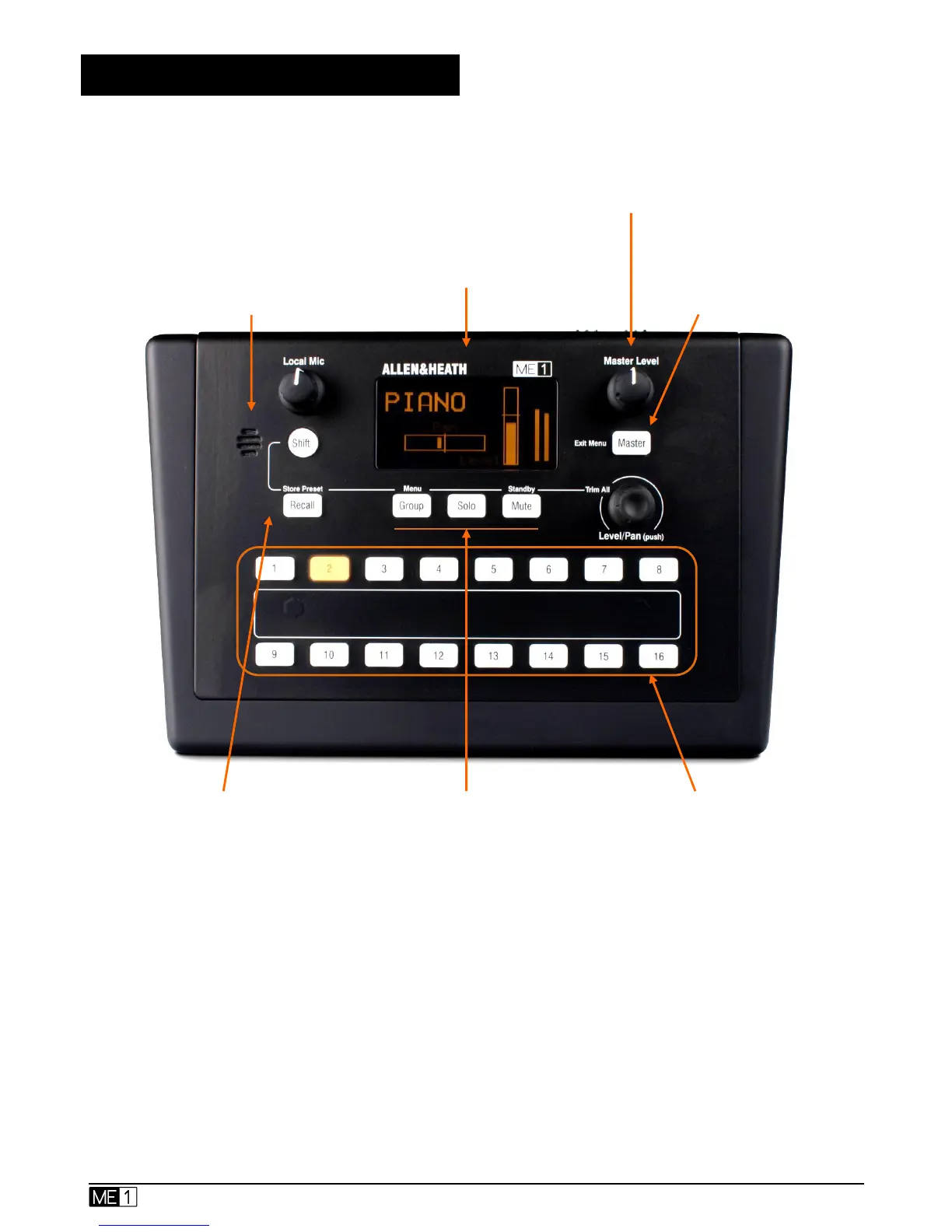

4. Front Panel
Master Level – Adjust the
overall mix level. Does not
affect local mic level.
Local Mic – Built-in
microphone to add stage
sound and hear fellow
musicians who come up and
talk to you. Separate Level
control. Not affected by
Master Level control.
Option to disable the mic.
Screen – Illuminated screen
for big display of selection
name, level and pan and
stereo signal meter. Also used
for master EQ and Limiter,
config and preset information
and the Setup menu.
Master Key – Access the
master EQ and Limiter.
Also used to exit a menu
during setup.
Shift key – Hold and press:
+Recall = Enter Store mode
+Group = Enter Setup menu
+Mute = Enter/exit Standby
+Rotary = Trim all levels
Preset Recall key – Hold and
press a Select key to recall a
preset, or recall a preset
direct from USB key.
Preset Store mode – Store
current key assignments,
names and group members
as a preset to a key or direct
to USB.
Group key – Lights if the
selection is a group. Press to
enter Group mode and adjust
the Level/Pan of members
within the group. Also used to
exit the Setup Menu.
Solo key – Press to enter Solo
mode and listen to just the
current selection. The meter
displays the level of the
selected source. Press and
hold for momentary solo.
Mute key – Press to mute the
selection. Lights red when
muted.
Select keys – Press one of 16
keys to adjust its assigned
source. A fast flash shows its
selection is muted.
Also used for store and recall
of up to 16 presets.
Rotary – Turn to adjust Level,
press and turn to adjust Pan
for the selection.
Press Shift and turn to trim all
selection levels, or to trim all
group members while in
Group mode.
Also used for scrolling and
entering setup menu options.
