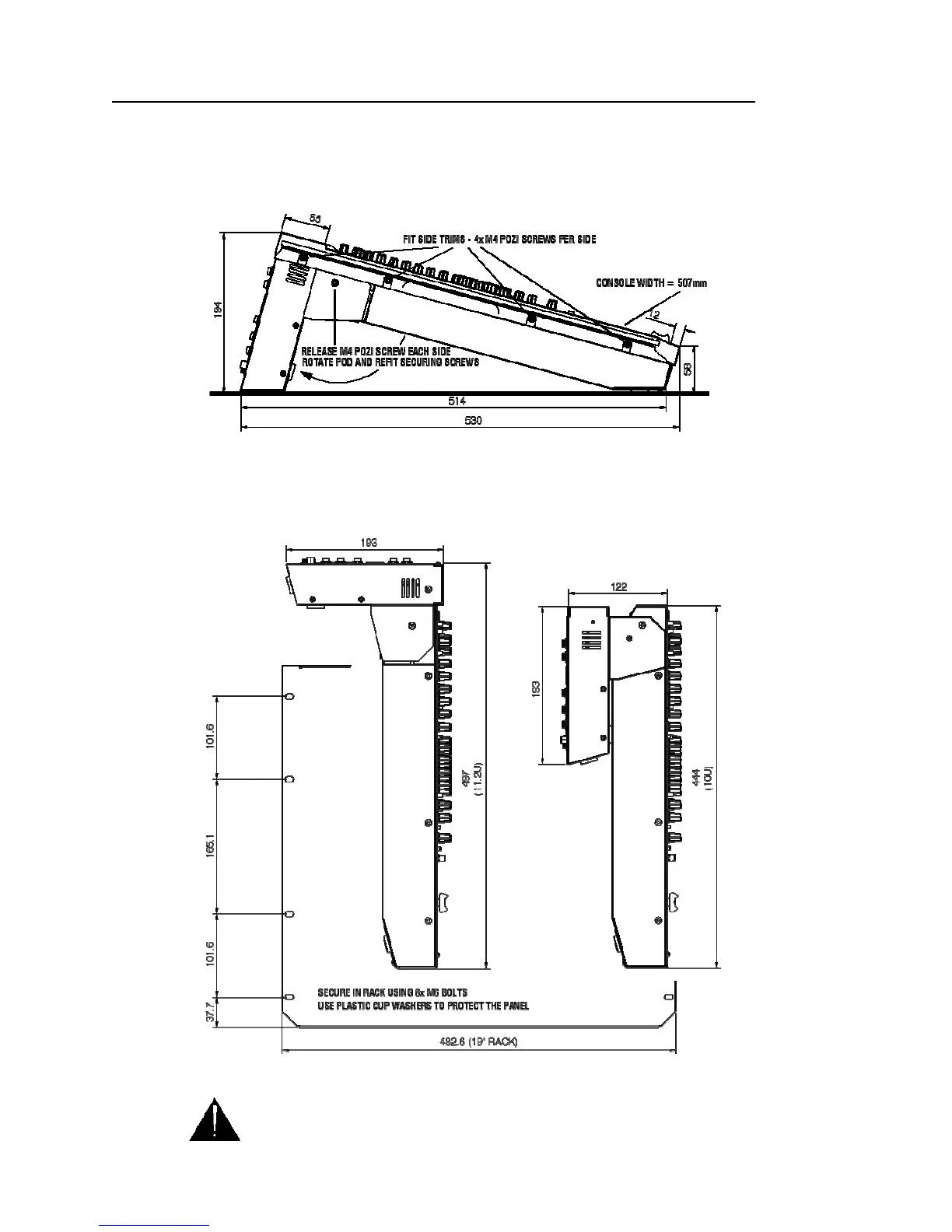

Installing the Console
Free Standing
The console is supplied ready for free standing operation with its side trims fitted and connector pod positioned for
rear access. If you are converting from rack to free standing then make sure the pod is correctly rotated and se-
cured, and the side trims fitted as shown:
19” Rack Mount
For rack mounting, remove the two side trims and rotate the pod into the connector position preferred. Allow
enough space for the cables and connectors behind the console.
Do not transport the console with its connector pod securing screws removed. Do not attempt to re-
move the connector pod from the console. Do not obstruct the ventilation slots. Allow adequate space
around the console for air flow. If the side trims are to be removed, do not refit their fixing screws to the
unit. Retain and store these in case the trims need to be refitted in the future.

ALLEN & HEATH MixWizard WZ4 12:2 Specifications

General

Frequency range	10 - 30000 Hz
Channels quantity	12 channels
Digital sound processing	- bit
Microphone in	Yes
DJ mixer	-
Product color	Black
Video capability	No

Weight and Dimensions

Depth	530 mm
Width	507 mm
Height	194 mm
Weight	11000 g
Package weight	14000 g
