Qu Mixer Reference Guide 86 AP9372 iss.9
16.2 Installing Qu-Pac

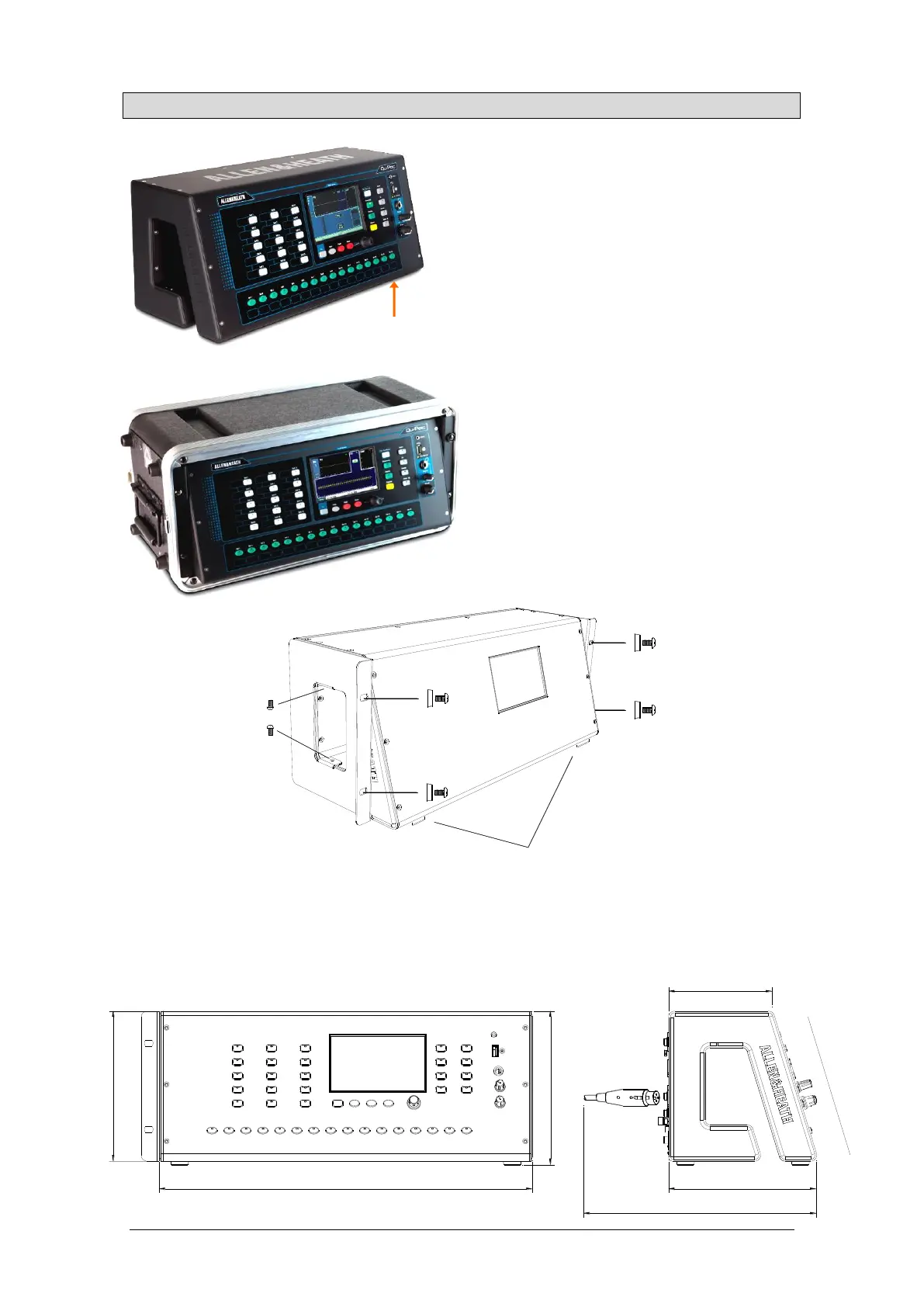

Free Standing - For operating while on a
desk, shelf or other flat surface.
Make sure the 4 rubber feet are fitted.
Allow space at the sides and rear for ventilation.
The mixer can be transported in a purpose
designed padded bag or flight case.
Optional polyester Qu-Pac padded carry bag
AP9931 is available from Allen & Heath.
Rack Cased - For operating while fitted into a
4U space in a standard 19” equipment rack or
flight case.
Choosing a ‘shallow’ case with internal depth of
200mm (8”) or more to allow easy access to the
rear connectors.
The mixer front panel is angled upwards to allow
easier access to the controls while in the rack.
Qu-Pac is shipped with a rack ear kit to convert
from free standing to rack operation. To fit the
rack ears:
 Allow adequate air flow around the ventilation slots at the rear and through the inside section of the
case. Do not block the sides.
Dimensions - Shown in millimetres (inches)
Rubber feet
Fit the ears to the
case using 2x
M4x8 screws per
side.
Secure Qu-Pac into the
rack using 2x M6x16
screws (AB0344) and
plastic cups (AB0345)
per side.
If necessary, remove the 4x rubber feet by
prizing the central plastic grommet out
using a small flat bladed screwdriver.
440
181
174
122
177
(17.32") Free Standing
(7.13")
(6.97") 4U Rack Space
(6.85")
(4.8")
274
(10.8") to allow for connections
Angle
17 degrees

ALLEN & HEATH Qu-32 Specifications

General

Sample rate	48 kHz
Channels quantity	32 channels
Digital sound processing	- bit
DJ mixer	-
USB port	Yes
Product color	Black
USB connector type	USB Type-B
XLR out	2
Master (XLR) out	24
RJ-45 ports quantity	1
Power consumption (typical)	- W
Output impedance	75 Ω

Weight and Dimensions

Depth	471 mm
Width	849 mm
Height	190 mm
Weight	20000 g
Package type	Box
Package depth	680 mm
Package width	1000 mm
Package height	350 mm
Package weight	24000 g
