ALLEN & HEATH Qu-32

Qu Mixer User Guide 17 AP9372 iss.4
AR84
CH1-8 Out1-4
AR2412
CH1-24 Out1-12
dSNAKE dSNAKE
Qu-32 Qu-32
AR2412
CH1-24 Out1-12
dSNAKE
15-16 = unused
9-14 = ST1-3
Out9-16
EXPANDER
1-8 = CH25-32
Out9-16
EXPANDER
Qu-32 Qu-32 Qu-32
Qu-32 Qu-32
AR84
Out13-16CH25-32
dSNAKE
AB168
CH1-16 Out1-8
dSNAKE
AB168
CH1-16 Out1-8
CH17-32
AR2412
CH1-24 Out1-12
dSNAKE
EXPANDER

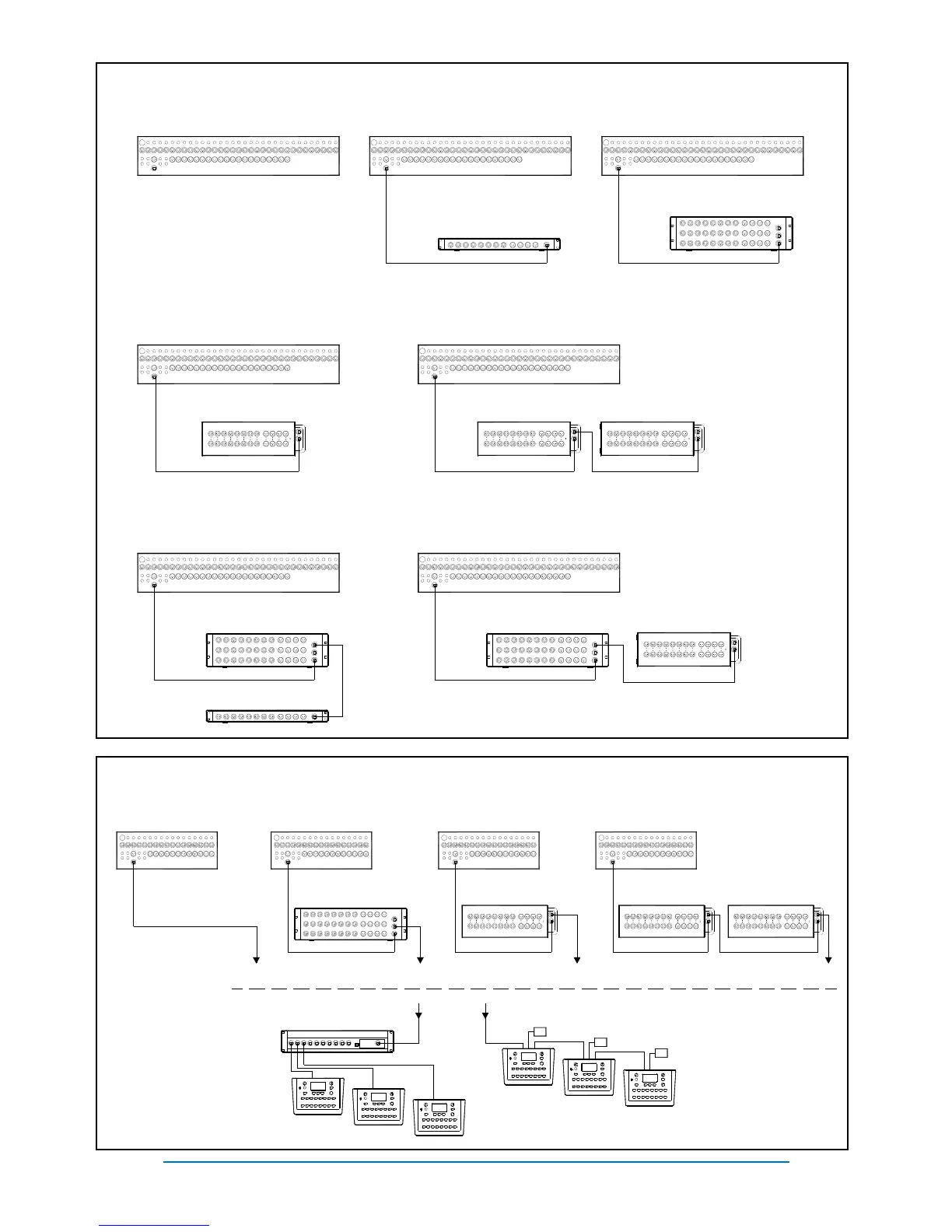

Qu-32 – All inputs and outputs
are available locally.
Qu-32+AR84 – 8 remote inputs.
Provides 4 outputs
Qu-32+AR2412 – Access to 24
mic inputs near the stage.
Qu-32+AB168 – Digital snake
for 16 mics on stage.
Qu-32+2x AB168 – Add a
second AB168 for 32 mics on
sta
g
e.
Qu-32+AR2412+AR84 –
Provides all 32 mic inputs near
the stage.
Qu-32+AR2412+AB168 –
Access to all inputs including
stereos.
PSU
PoE
PSU
PSU
ME-U hub
ME-1
ME-1
ME-D
EXPANDEREXPANDER
AR2412
MONITOR
dSNAKE
AB168
EXPANDER
AB168
dSNAKE
Qu Mixer
ME System ME System ME System ME System
Qu Mixer Qu Mixer Qu Mixer
dSNAKE dSNAKE
ME Personal Mixing System – The Qu system can interface directly or via the ME-U hub to ME-1 personal
mixers using any available dSNAKE, EXPANDER or MONITOR port.
Parallel connection
Use the ME-U hub or a
standard PoE hub to
power and connect to
several ME-1 mixers
using individual Cat5
cables.
Daisy chain connection
Connect to Link In of the
first ME-1 mixer. Connect
its Link Out to daisy chain
to the next. Use the power
units provided with each
ME-1 mixer.
