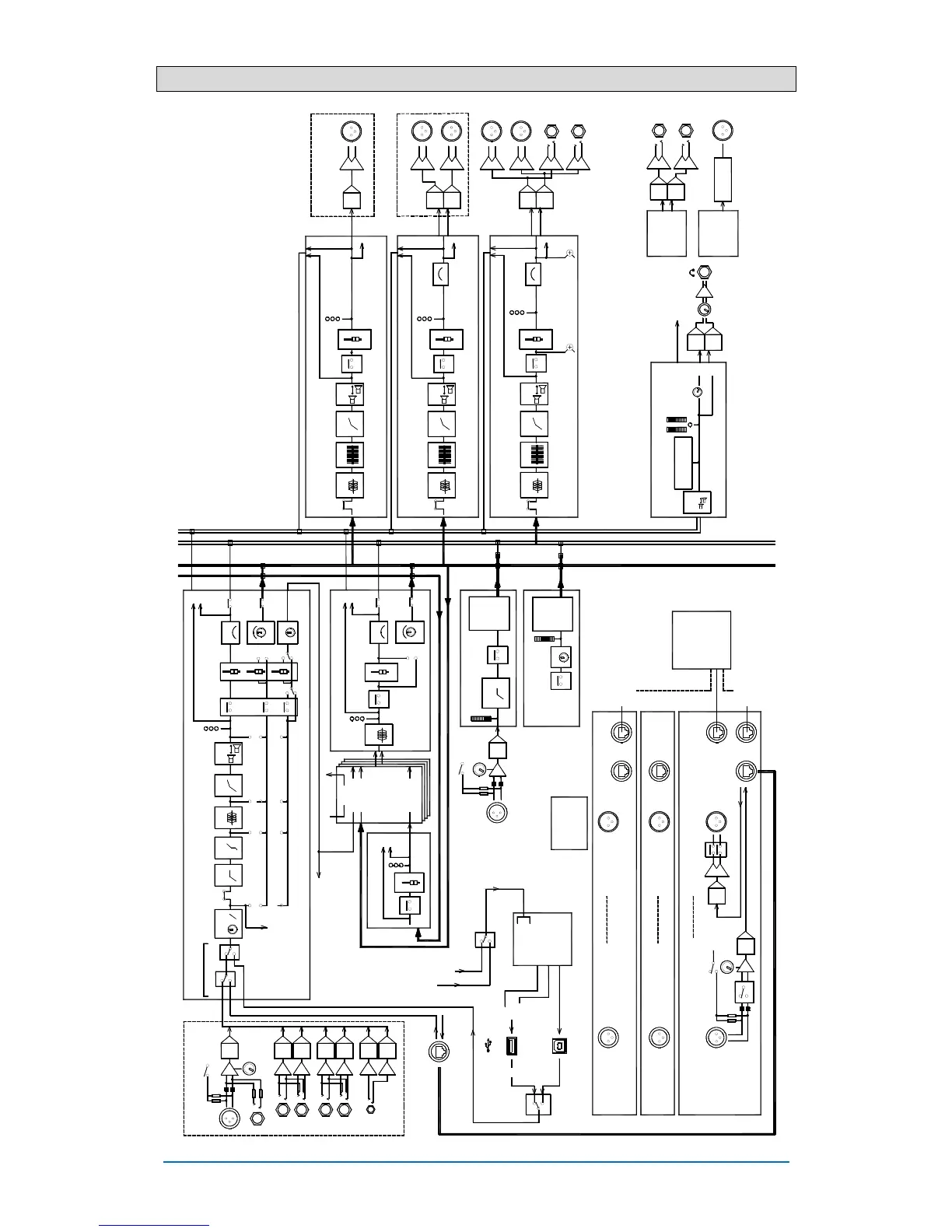

12.2 Qu-16 System Block Diagram
Post-AllPost-Preamp
Global source per Mix
MUTE
m-point Pk
FADER
Input Channels 1-16, ST1-3
PFL AFL
METER
Post Pre
Direct Out
to LR
MixFX
PEQ
Pre
Post
FX Return 1-4
FADER
MUTE
TRIM
TALKBACK
HPF
Press to TALK
Global source for Direct Out
LR
LR
SEND
PAN
PAFL
ADC
Mic In
+ -
Gain
Line In
48V
ADC
Talkback Mic
+ -
LR
LR
SEND
FX 1-4
Mix>Return
CH/Mix Insert
METER
Insert
Mix>Return
MUTE
FADER
PFL
AFL
METER
FX Send1-2
Mix 5-6, 7-8, 9-10 Masters
FX
INSERT
L, R Masters
MUTE
METER
FX
Global Follow Mute Follow Fader
DELAY
DAC
-
+
DAC
BAL
-
+
+4dBu
LR Out
-
+
BAL
-
+
+4dBu
L R
2TRK Out
DAC
-
+
DAC
BAL
-
+
+4dBu
Mix Out 5-6, 7-8, 9-10
L R
L R
AES digital out
AES Out
DAC DAC
Phones
DAC
-
+
DAC
BAL
-
+
+4dBu
L R
Alt Out
LR pre/post L+R pre/post
DELAY
PFL TRIM
-24dB 0dB
RTA
31-band 1/3 octave
PFL AFL
PAFL
Monitor
TRIM
FX
Insert
Pre-EQ
CH>Return
Mix 1-4 Masters
FX
INSERT
DELAY
Mix Out 1-4
DAC
BAL
-
+
+4dBu
PFL
AFL
to LR
LR
PAN
MUTE
FADER
METER
PFL AFL
MUTE
FADER
DELAY
PFL AFL
BAL
LR
post post
FADER
PFL AFL
BAL
LR
METER
Pre
post
L+RL+R
ASSIGN to
Mix
LEV
MUTE
Sine White Noise Pink Noise B/P Noise
SIG GEN
LR
ASSIGN to
Mix
LR
Mix post PAFL
PAFL
LR pre/post L+R pre/post Mix post PAFL
Gain
48V
USB
Local/dSNAKE
SOURCE
ADC
L/M
R
+ - + -
ST1
ADC ADC
L/M
R
+ - + -
ST2
ADC ADC ADC
ST3
dSNAKE
Inputs
Outputs
post
CAT5 'digital snake'
FX sends
Mix sends
FX sends
Mix sends
to Output Patch
COMPGEQ
28-band
PEQ
COMPGEQ
28-band
PEQ
COMPGEQ
28-band
PEQ
Firmware V1.5
SYSTEM BLOCK DIAGRAMQu-16
Mic/Line 1-16
LOCAL
June 2014
To USB patch
Qu-Drive
USB B
Multitrack
Stereo
Stream
PLAYBACK
USB source
Multitrack
Stereo
Stream
RECORD
CH1-16, ST1-3 Source
or or
Global
USB
Mix1-10 post FX Ret1-4 pre L+R pre/post LR pre/post PAFL
USB Patch 1-24:
17-18
1-18 1-24
dSNAKE
MONITOR
To ME Personal Mix System
AR2412
48V
-
+
-20dB PAD
ADC
GAIN
Mic/Line Inputs 1-24
BAL
-
+
Ready
DAC
+4dBu
XLR Out 1-12
Inputs ST1-3 XLR Out 13+
dSNAKE
AR84
Mic/Line Inputs 1-8
XLR Out 1-4
dSNAKE
AB168
Mic/Line Inputs 1-16
XLR Out 1-8
EXPANDER
EXPANDER
Inputs ST1-3 XLR Out 9+
ST1-3 Dir Out CH1-16 Dir Out Mix1-10 post FX Ret1-4 pre L+R pre/post LR pre/post PAFL
MONITOR Patch 1-40:
dSNAKE XLR Out Patch:
Mix1-10 post L+R pre/post LR pre/post PAFL
Patch: Patch:
Sends
Insert
Direct Out
(ME compatible) (ME compatible)
AudioRack options:
To USB and dSNAKE Monitor patch
ST1-3 CH1-16
POL HPF GATE PEQ COMP
DELAY
0
Post-PEQ
