Qu Mixer Reference Guide 18 AP9372 iss.9
5.2 Qu Systems
The Qu mixer has sockets for all its inputs and outputs on its rear panel and can therefore be used
without any additional rack. However, if you wish to use a digital snake to connect remote stage audio to

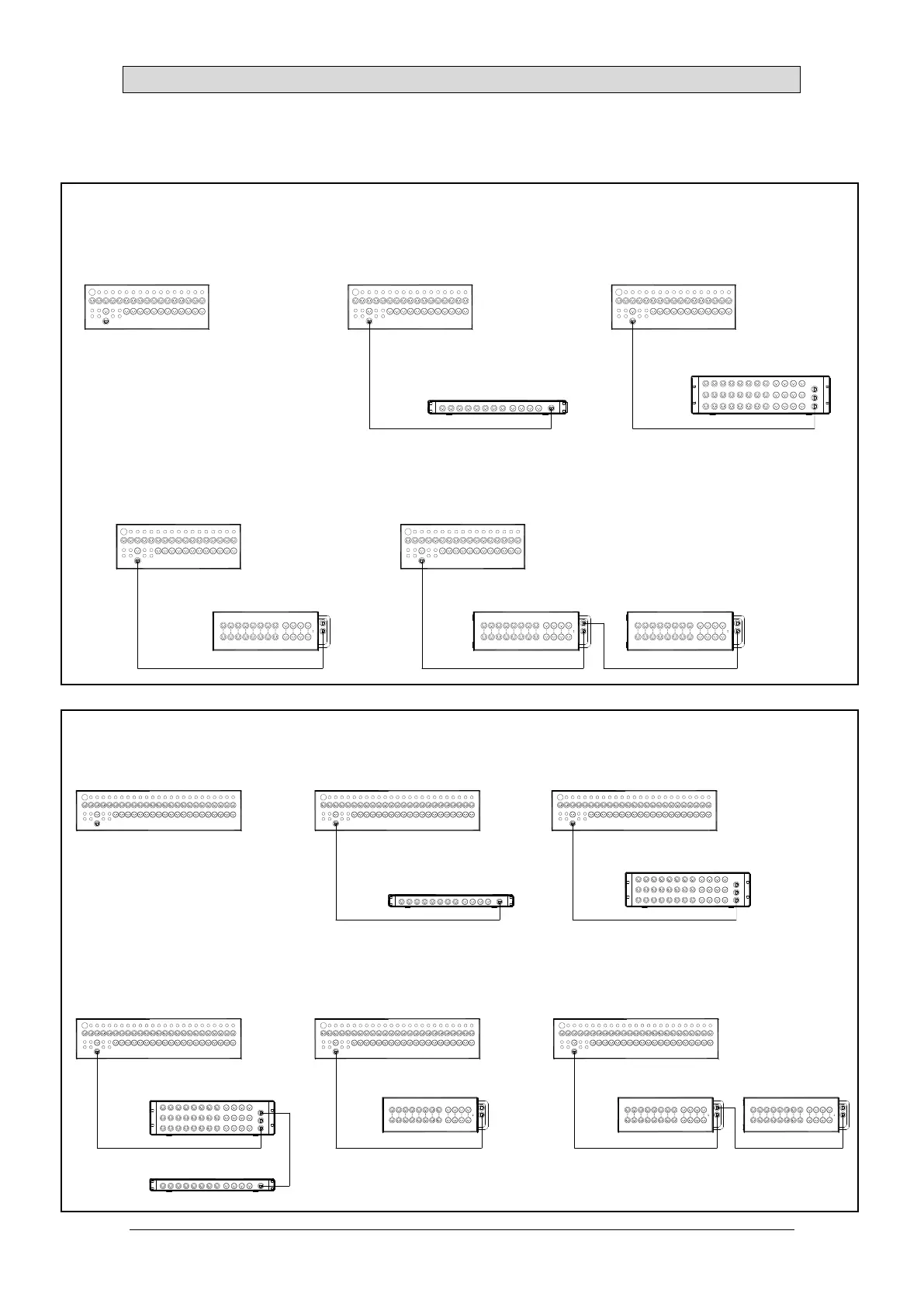

the mixer using a single Cat5 cable then there are several rack options available. The following diagrams
show suggested combinations:
Qu-24 Qu-24
AR84
CH1-8 Out1-4
AR2412
CH1-24 Out1-12
Qu-24
Qu-24
AR2412
CH1-24 Out1-12
Out9-16
EXPANDER
1-8 = CH17-24
Qu-24
dSNAKE
AB168
CH1-16 Out1-8
dSNAKE dSNAKE
dSNAKE
EXPANDER
AR84
Out13-16
7-8 = unused
1-6 = ST1-3
Qu-24
dSNAKE
AB168
CH1-16 Out1-8
15-16 = unused
9-14 = ST1-3
Qu-24 – All inputs and outputs
are available locally.
Qu-24+AR84 – 8 remote inputs.
Provides 4 outputs
Qu-24+AR2412 – Access all 24
mic inputs near the stage.
Qu-24+AR2412+AR84 – Adds
the ST1-3 stereo mic inputs near
the stage.
Qu-24+AB168 – Digital snake
for 16 mic inputs on stage.
Qu-24+2x AB168 – Expands
with a second stage box to
access all inputs.
AR84
CH1-8 Out1-4
Qu-16
dSNAKE
CH1-16 Out1-8
Qu-16
Qu-16
dSNAKE
CH1-16 Out1-8 Out9-16
Qu-16
dSNAKE
AR2412
EXPANDER
AB168
23-24 = unused
17-22 = ST1-3
1-16 = CH1-16
7-16 = unused
1-6 = ST1-3
Qu-16
dSNAKE
AB168
Out1-12
Qu-16 – All inputs and outputs
are available locally. Use on
stage or with an analogue
snake.
Qu-16+AR84 – 8 remote inputs.
Provides 4 outputs, ideal for
feeding a stereo PA and two
monitors.
Qu-16+AR2412 – Access all
inputs and outputs near the
stage. ST1-3 provide stereo mic
inputs.
Qu-16+AB168 – Provides a
rugged digital snake and stage
box for all 16 mic inputs and up
to 8 returns.
Qu-16+2x AB168 – A second
stage box expands the first to
access ST1-3 on its first 6 inputs
and provides more outputs.
Inputs 7-16 are not used.
