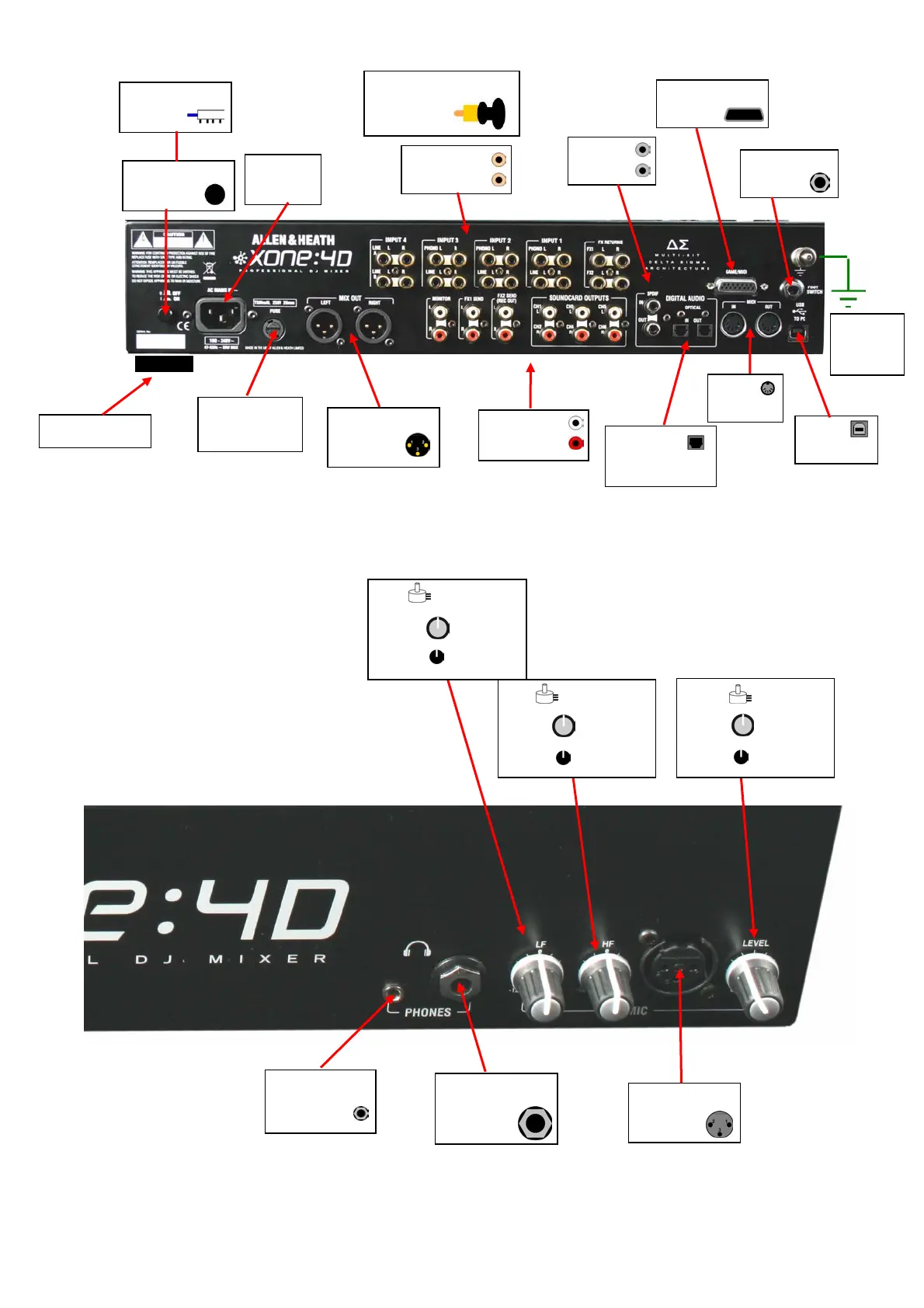

ALLEN&HEATH Xone:4D service manual AP7337_2 Page - 10 - of 14
AC button
AJ2887
AC switch
Al3338
Feet AK0102
Headphone
Large jack
AL0328
Headphone
Small jack
AL5323
Mic XLR
AL2414
Mix out XLR
Al2411
Ground
Pillar
AL8106
Fuse holder
AL3178
AC inlet
Al3458
RCA phono
AL3753
RCA phono
AL4977
SPDIF
AL0566
Game port
AL6351
Foot switch
AL0328
Optical
IN AE6069
OUT AE5899
USB
AL6096
MIDI
AL3962
Phono shorting plug
AL4396
LF AI8004
Knob AJ4346
Knob AJ4346
HF AI8004
Knob AJ4346
Knob AJ4346
Level AI8003
Knob AJ4346
Knob AJ4346
