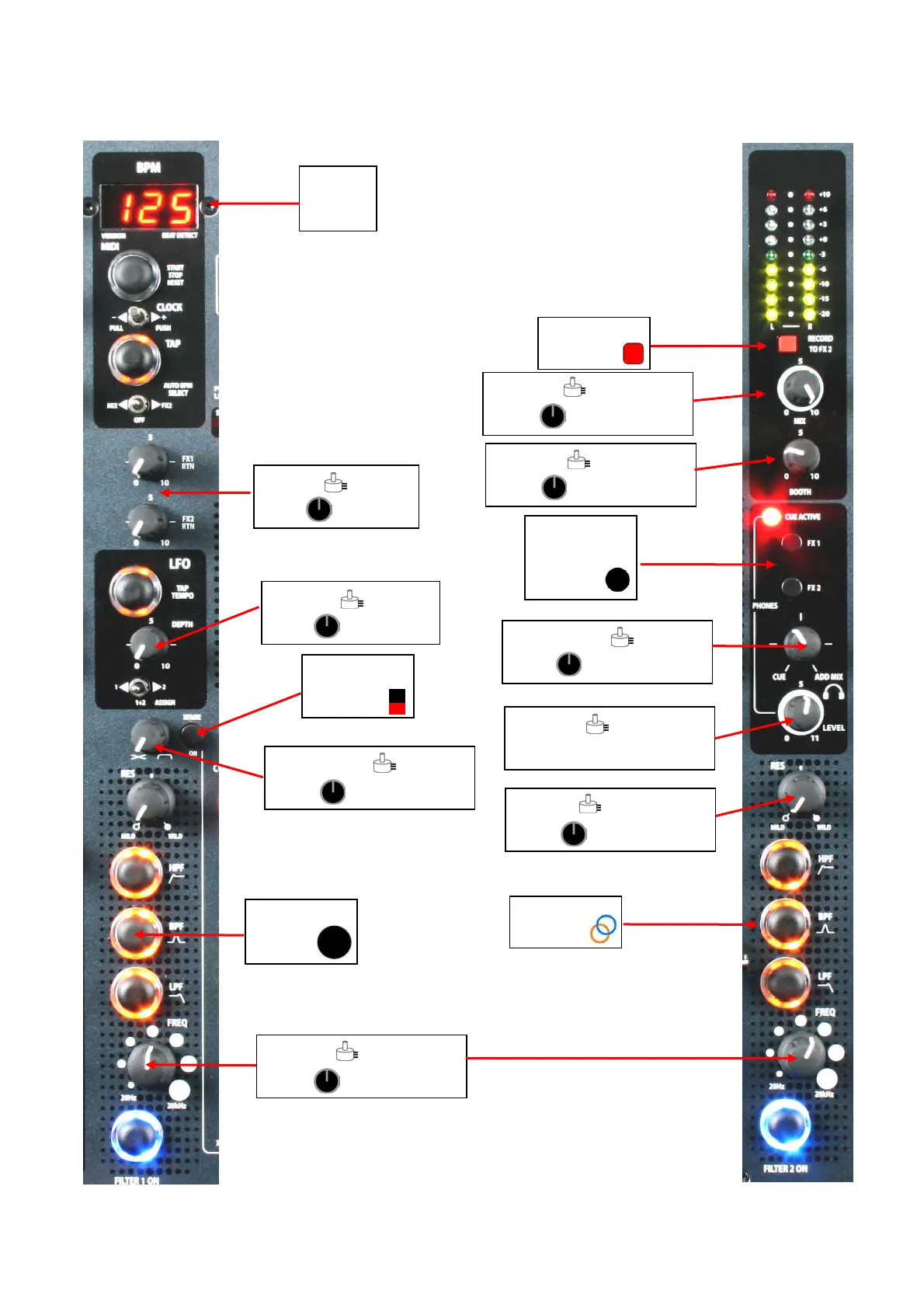

ALLEN&HEATH Xone:4D service manual AP7337_2 Page - 8 - of 14
BPM
display
AA6757
Rec to FX2
AJ3438
FX1, FX2
Round black
button
AJ4251
Xfade ON
button
AJ6904
Light ring
AJ5324
Black button
AJ5325
FX RTN AI8007
Knob AJ7304
LFO Depth AI8003
Knob AJ7304
Xfader contour AI8007
Knob AJ7304
FREQ AI8004
Knob AJ7305
RES AI8007
Knob AJ7304
Level AI8007
Knob AJ7304
Cue / Add mix AI8007
Knob AJ7304
Booth AI8007
Knob AJ7304
Mix AI8007
Knob AJ7304
