ALLEN&HEATH 3 XONE:96 Guide: Replacing Faders
REPLACING FADERS
The XFADER and main channel faders on a DJ mixer are heavily used and can suffer considerable wear and tear.
The audio design using VCAs prevents clicks and scratchiness as the fader wears. Over time, however, the me-
chanical movement may become stiff, or sloppy, or ingrained with dirt. Intermittent or noisy operation is also an
indication of faders becoming worn. Should this be the case the fader may need replacement.
DO NOT use propriety fader cleaners on new faders as this can displace factory applied finishes.
The XONE:96 XFADER and four main stereo Channel 1-4 faders can be easily replaced as follows:
IMPORTANT NOTES:
Warning! Please read the following steps in full BEFORE starting work.
If you are unsure of your ability to safely carry out the procedure described, it is advised that you contact an
authorised Allen & Heath agent for local service assistance by a qualified technician.
Or for more information, please contact your mixer retailer, or local authorised Allen & Heath agent:
www.allen-heath.com/where-to-buy
Ensure that the power switch on the rear panel is set OFF and that IEC mains cable is disconnected from the AC
mains supply BEFORE opening the unit.
Have a clean flat work surface ready before starting work.
Ensure erroneous objects, such as cover screws etc. do not fall into the chassis or through louvres during disas-
sembly, and check to make sure none are loose inside the unit BEFORE reassembling.

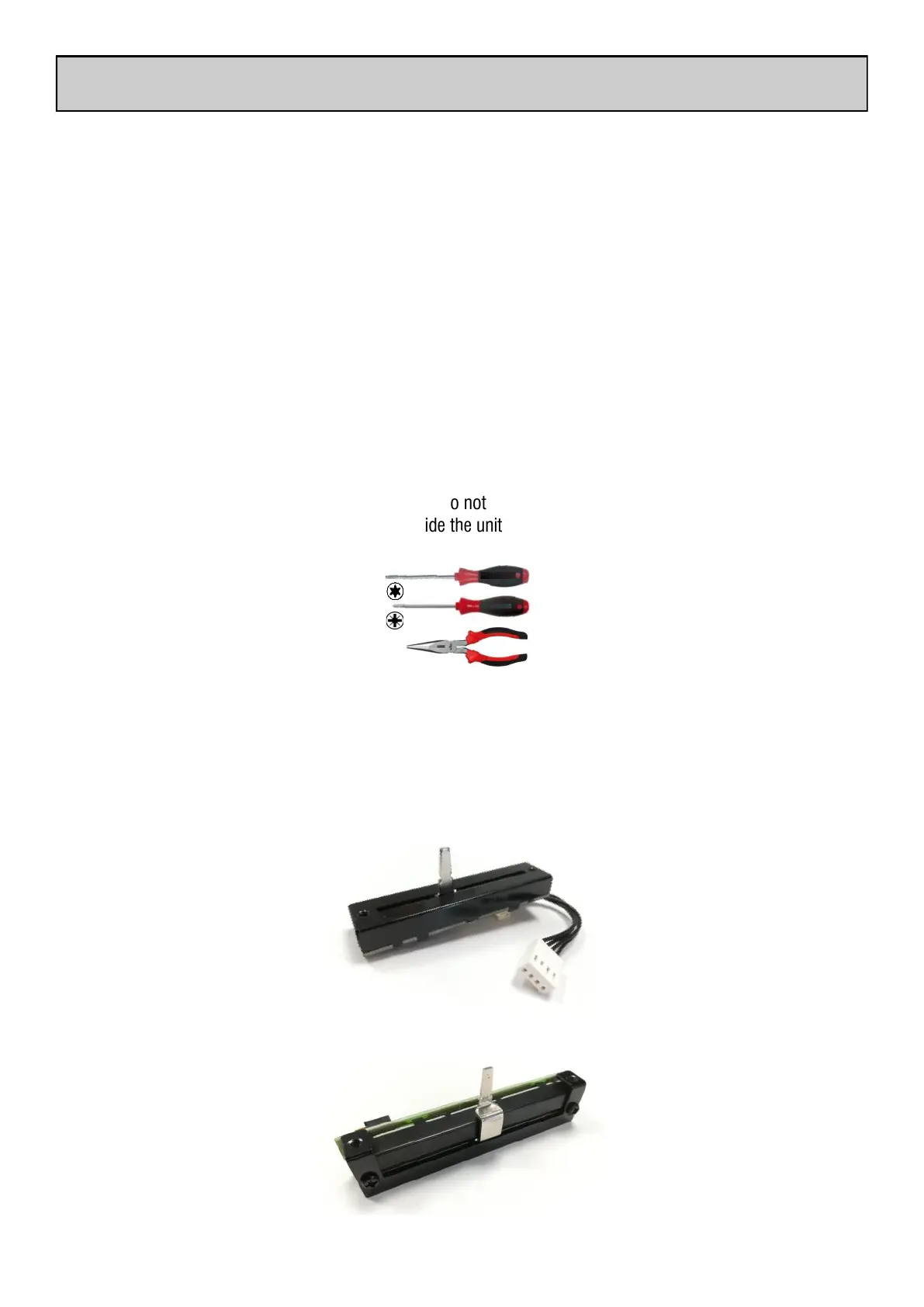

Tools you will need:
• T8 TORX screwdriver
• PZ0 POZI (cross-head) screwdriver
• Long Nosed pliers (optional)
• A small container for retaining screws
To replace Faders
ONLY use spare part components approved by Allen & Heath for replacement.
Please contact your mixer retailer, officially authorised Allen & Heath spares supplier, or local authorised A&H
agent to order spare parts: www.allen-heath.com/where-to-buy
• To replace the factory standard Mini innoFADER cross-fader, order A&H spare part-code:
AI11470 - XONE:96.INNO.FADER
• To replace the factory standard Allen & Heath Channel Fader, order A&H spare part-code
004-999X - XONE:96.ST.CH.FADER

ALLEN & HEATH XONE:96 Specifications

General

Channels quantity	8 channels
Digital sound processing	- bit
Equalizer bands quantity	4
DJ mixer	-
Product color	Black, Grey
USB connector type	USB Type-B
Master (XLR) out	1
Headphone connectivity	3.5 mm/6.35 mm
Number of microphone inputs	2
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	45 W
Built-in display	No

Weight and Dimensions

Depth	410 mm
Width	336 mm
Height	109 mm
Weight	7000 g
