ALLEN&HEATH 4 XONE:96 Guide: Replacing Faders
REPLACING FADERS continued
[2]
[3]
[2]
[3]
[1]
Step 1:
• Ensure power switch on the mixer’s rear panel is turned OFF.
• Disconnect the mains cable from AC mains supply and mixer’s IEC socket.
Step 2:

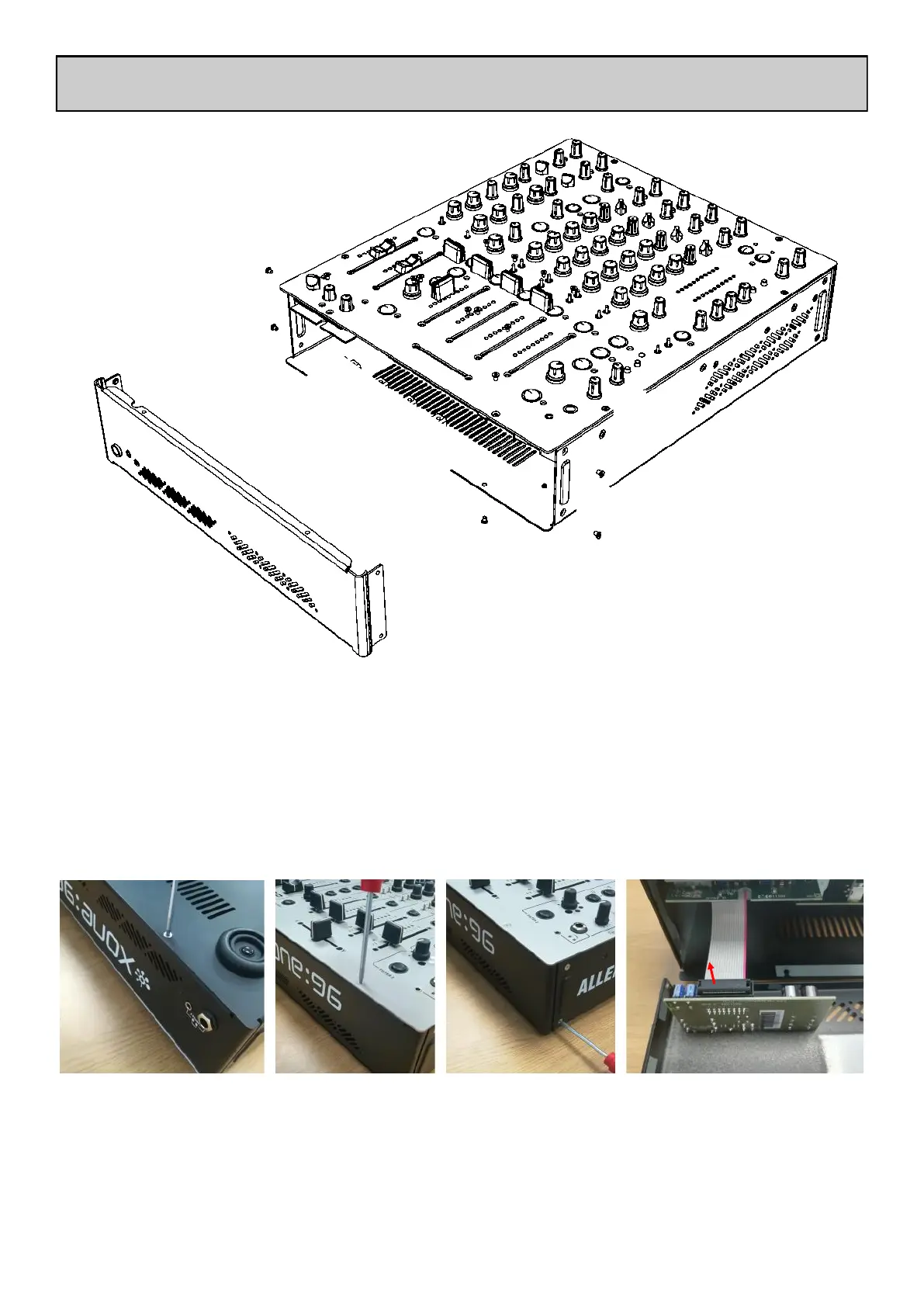

• Place the mixer face-down on a clean surface. Remove and retain 2 Torx screws securing the front panel
to the base of the mixer [1].
• Turn the mixer over. Remove and retain 6 Torx screws securing the front panel to the top and chassis [2].
• Loosen, but do not remove, 2 Torx screws securing the top panel to the mixer chassis [3].
Step 3:
• Lift the front panel forward away from the chassis, to access and, with care, disconnect the grey
harnesses connecting top panel to PHONES 2 assembly fixed to the front panel, as illustrated above [4].
NOTE:
• Do not attempt to separate the top panel from the chassis
[1]
[2]
[2]
[4]
