ALLEN & HEATH XONE:96

ALLEN&HEATH 5 XONE:96 Guide: Replacing Faders
REPLACING THE XFADER

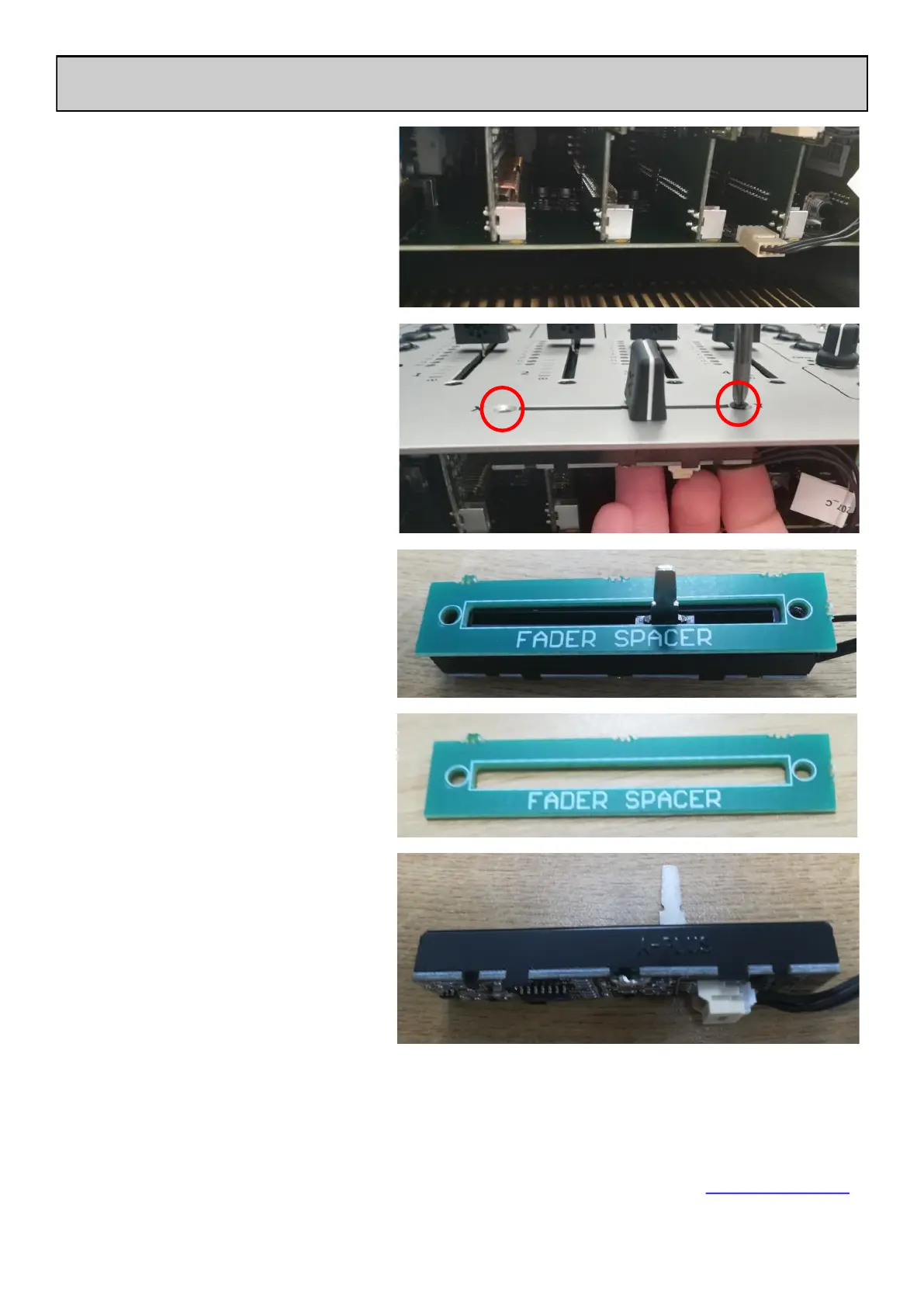

Step 4: To replace the XFADER
• With care, disconnect the black wire-
form connecting the XFADER assembly
to the internal PCBA, as shown.
• Remove and retain 2 screws securing
the XFADER assembly to the top panel
• Take the cap off the XFADER shaft and
lift the assembly clear from the chassis
• Remove and retain the FADER SPACER
PCB
NOTE:
• The FADER SPACER PCB can be
removed if required, in order to increase
the clearance between the XFADER
knob and top panel
• To replace the factory standard Mini
innoFADER XFADER, order A&H spare
part-code:
• AI11470 - XONE:96.INNO.FADER
Step 5:
• Fit the new XFADER and the FADER
SPACER PCB to the top panel and
replace the XFADER knob.
• Screw the XFADER assembly back to
the top panel.
• Re-connect the black wire-form from
connecting XFADER to the top panel
PCBA.
• Reassembly of the mixer is the reverse of Steps 1 - 3, detailed above.
NOTE:
• Other models from Audio Innovate, such as the innoFADER Pro2 and innoFADER PNP2 are also
compatible as XFADER upgrades for XONE:96. For more information on models, setup and calibration
options, and for details of innoFADER stockists, please visit the innoFADER website: www.innofader.com
