ALLEN & HEATH XONE:96

ALLEN&HEATH 6 XONE:96 Guide: Replacing Faders



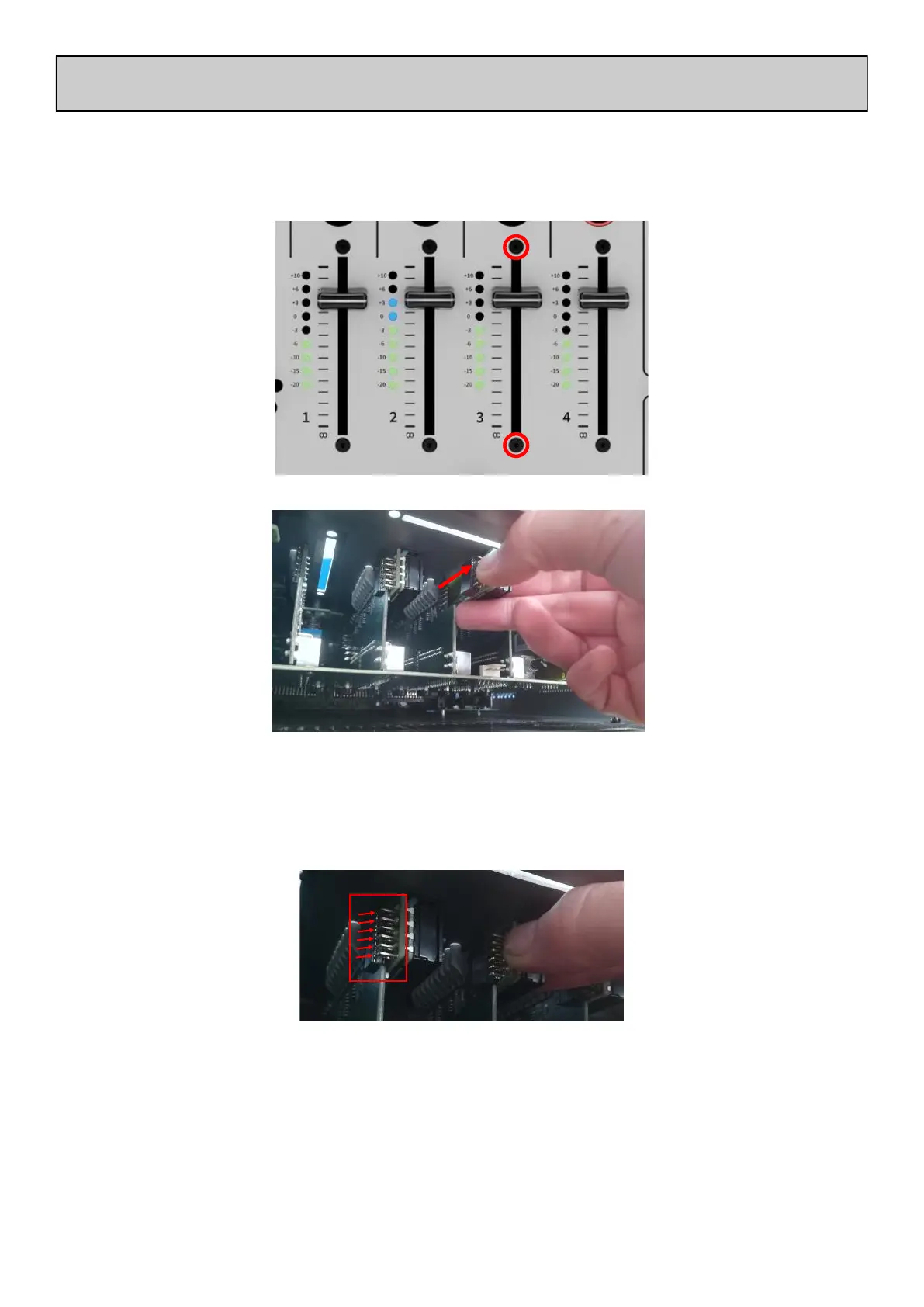

REPLACING CHANNEL FADERS
Step 6: To replace Channel Faders
• Remove the cross-fader assembly prior to replacing channel fader/s, as described in Step 4 above.
• Remove and retain 2 screws securing the channel fader PCBA.
• Slide the Channel Fader PCBA away from its connection to the main top panel PCBA as shown.
• Take the cap off the Channel Fader shaft to remove the assembly clear from the top panel.
To replace Channel 1-4 faders, order A&H spare part-code:
004-999X - XONE:96.CH.FADER
• The new replacement Channel Fader assembly is a push-fit onto the main top panel PCBA.
• Ensure the pins on the main top panel PCBA are aligned correctly with Channel Fader PCBA connector.
• Replace the Channel Fader knob and screw the Channel Fader back to the top panel.
• Fit the new XFADER and spacer PCB to the top panel and replace the XFADER knob.
• Repeat Step 6 as necessary for each fader that needs to be replaced.
• Screw the XFADER assembly back to the top panel.
• Re-connect the black wire-form from connecting XFADER to the top panel PCBA.
• Reassembly of the mixer is the reverse of Steps 1 - 3, detailed above.
• NOTE: When re-assembling the mixer, take great care to refit harnesses in correct positions and to ensure
connectors are fully fitted into the corresponding socket.
