18 XONE:V6 User Guide

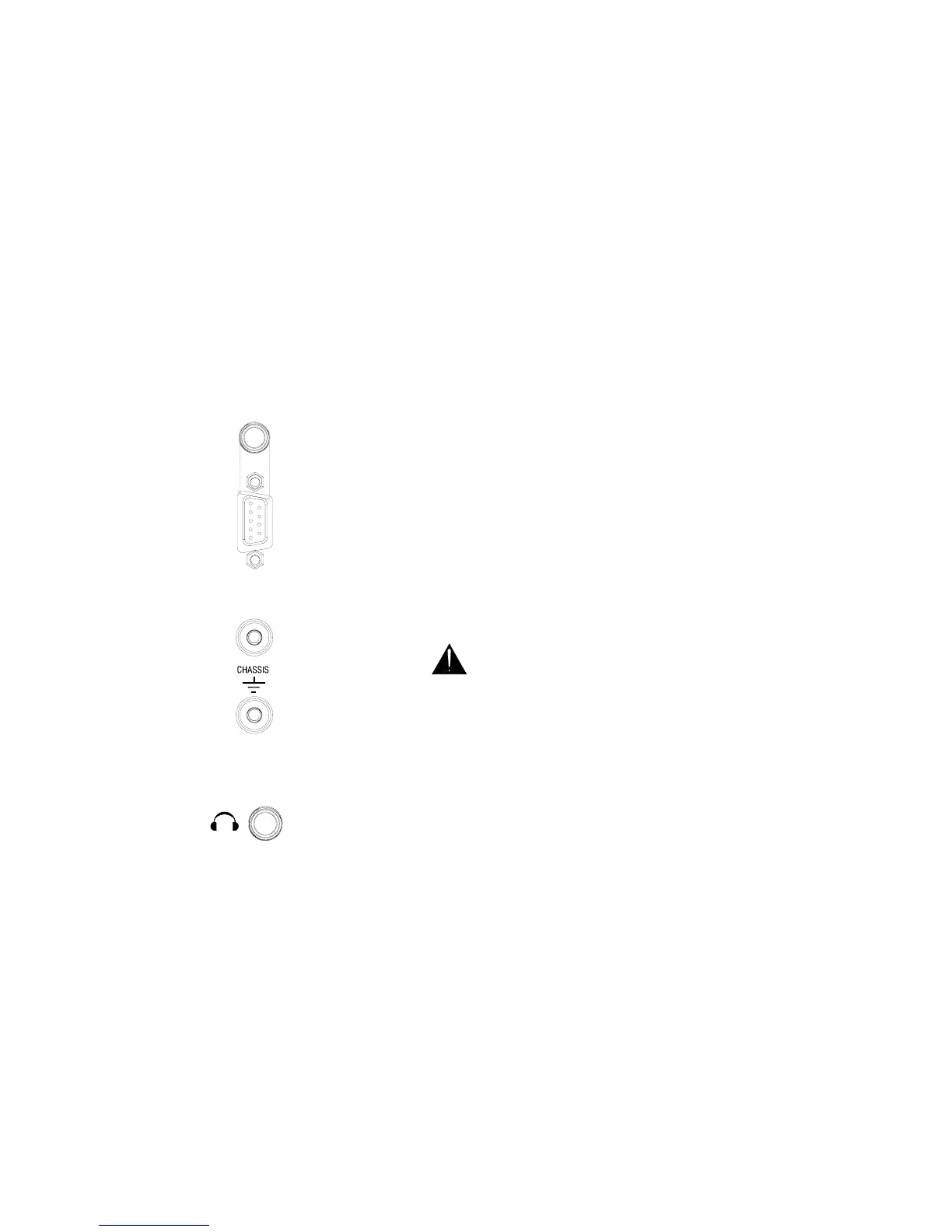

Cue, Ground and Headphones Connectors
External cue input TRS jack break point for overriding the cue system
with an external audio signal. The input is unbalanced with tip = left, ring =
right and sleeve = common ground.
Cue DC link 9-pin D connector for linking the console cue logic system
with external Allen & Heath accessories.
Chassis ground Two heavy duty binding posts are provided for ground
wire connection. Use these to bond the turntables and other equipment
chassis to the console chassis ground.
For safety it is important that all equipment grounds are connected
to mains ground so that exposed metal parts are prevented from carrying
high voltage which can injure or even kill the operator. It is recommended
that the system engineer check the continuity of the safety ground from all
points in the system including microphone bodies, turntable chassis,
equipment cases, and so on.
Headphones Two headphones sockets are provided, one on the front
panel, the other on the rear. This provides the choice as to where to plug in the
DJ headphones.
CUE DC LINK
EXT CUE INPUT
PHONES 2
