ALLEN & HEATH ZED 14 - MONO INPUT CHANNEL; Mic Input Socket; Line Input Jack Socket; Insert Jack Socket

Allen & Heath 13 ZED-14 User Guide

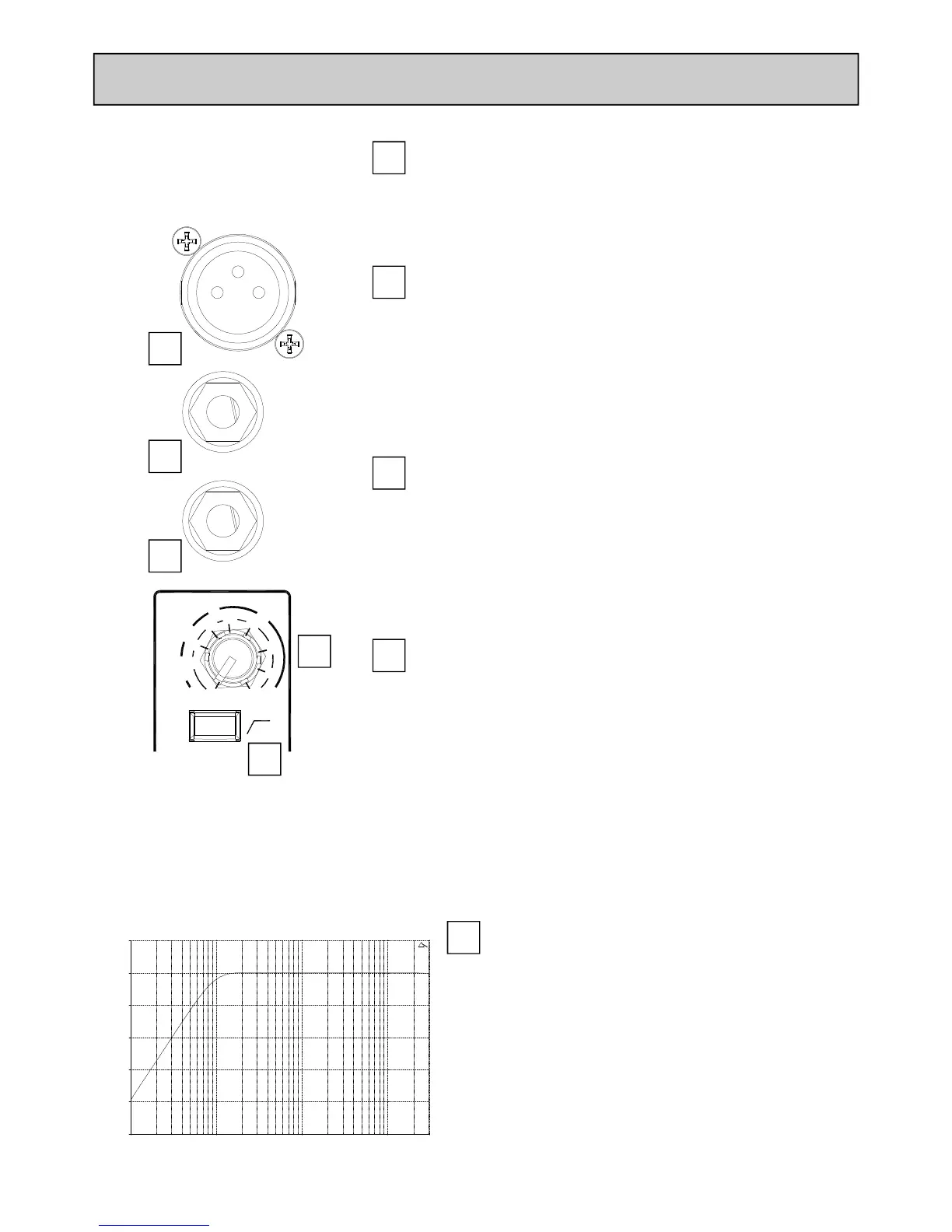

MONO INPUT CHANNEL
1
2
3
4
5
1
Mic Input Socket
Standard 3-Pin XLR socket wired as Pin 1=Chassis,
Pin 2=hot (+), Pin 3=Cold (-).
2
Line Input Jack Socket
Standard 1/4” (6.25mm) Jack socket for balanced or un-
balanced line level signals. Wired Tip=Hot(+),
Ring=cold (-), Sleeve=Chassis.
The Line input overrides the Mic input, so if you want to
hear something plugged in to the xlr socket, make sure
nothing is plugged into the Line input.
3
Insert Jack Socket
Standard 1/4” (6.25mm) Jack socket for unbalanced in-
sert send and return signals. Wired Tip=send,
Ring=return, Sleeve=Chassis. Nominal level is 0dBu. The
insert point is after the 100Hz filter and before the EQ.
4
Gain Control
This adjusts the gain of the input amplifier to match the
signal level of the input. The gain is varied from –6dB
(attenuation) to +63dB for signals plugged in to the xlr
socket (Mic Input) and –10dB to +26dB for signals
plugged into the Line input jack.
5
100Hz Hi-pass Filter
The Hi-pass filter is used for reducing pop noise
and rumble from microphone signals. It is a 2-
pole (12dB per octave) filter with a corner fre-
quency set at 100Hz.
The filter affects signals from both Mic XLR and
Line jack socket.
-6-10 63 26
GAIN
MIC
0
LINE
10
0
10
20
30
40
50
100Hz
INSERT
1
LINE
MIC
10.00 Hz 100.00 1000.00 10000.00 30000.00
-50.00
-40.00
-30.00
-20.00
-10.00
0.00
10.00
dBr
