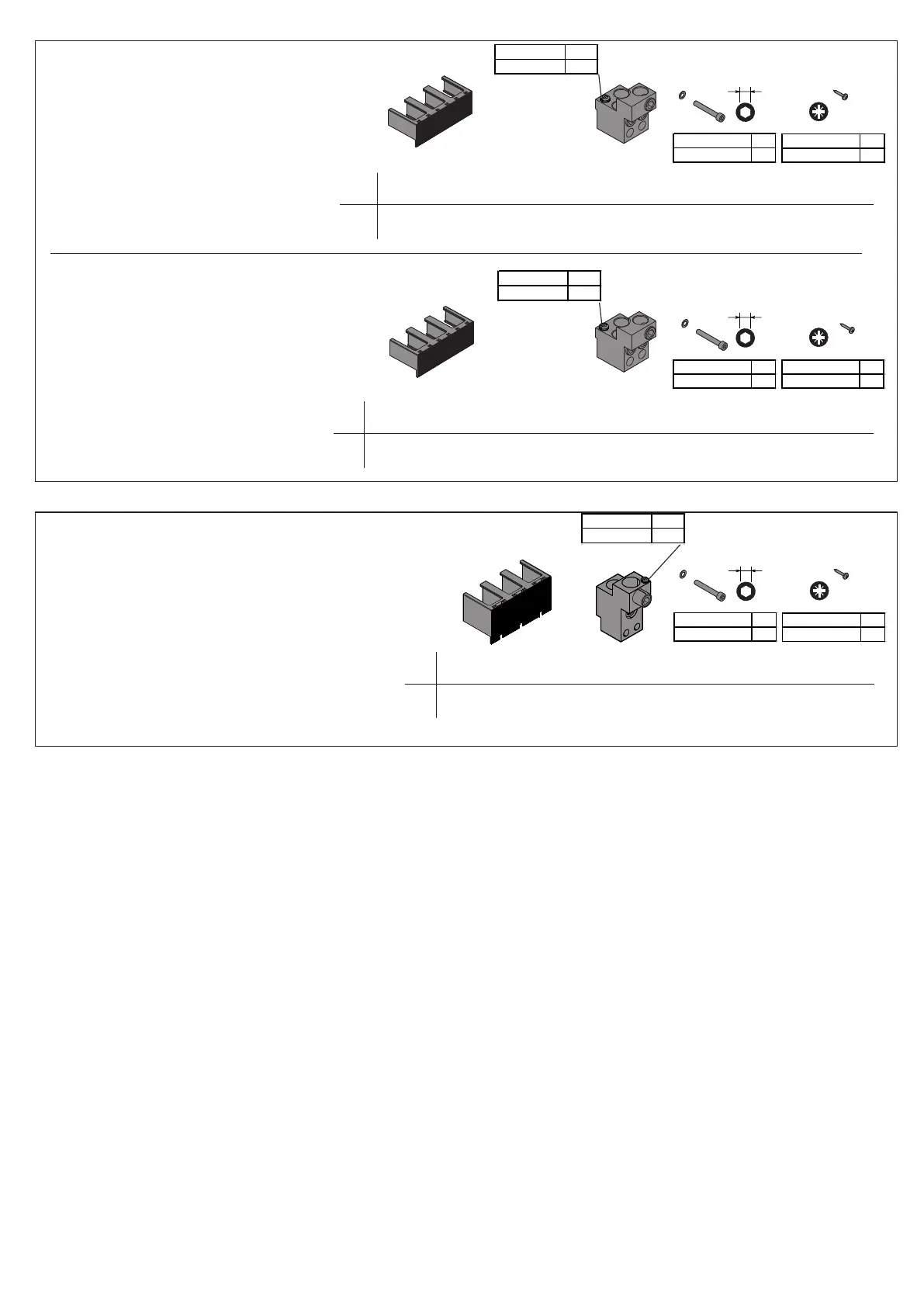

Allen-Bradley 140G Series User Manual

x1
x1
x6
x8
x2
x2
x3
x4
3p
4p
CuAl
(3) 2/0...400 MCM
(3) 70...185 mm²
3p
4p
Cu
(3) 2/0...350 MCM
(3) 70...185 mm²
(2)
140G-M-TLA33
140G-M-TLA34
140G-M-TLC33
140G-M-TLC34
x1
x1
x2
x2
x3
x4
Lug Screw Screw
Terminal cover
CH 5
x6
x8
Lug Screw Screw
Terminal cover
LENGT H M
55 m m (2.1 7") M 6
LENGT H dia.
1 2 m m (0.47" ) 3.5
CH 5
LENGT H M
55 m m (2.1 7") M 6
LENGT H dia.
1 2 mm (0.47" ) 3.5
x1
x1
x6
x8
x2
x2
x3
x4
3p
4p
CuAl
(2) 500...750 MCM
140G-M-TLA2A3
140G-M-TLA2A4
Lug
Screw Screw
Terminal cover
(Ip20 protection)
CH 5
LENGT H M
55 m m (2.1 7") M 6
LENGT H dia.
1 2 m m (0.47" ) 3.5
LENGTH dia.
0.28" (7mm) 0.1 9
LENGTH dia.
0.28" (7mm) 0.1 9
LENGTH dia.
0.28" (7mm) 0.1 9
DIR 1000479R0824 Version 04

Allen-Bradley 140G Series Specifications

General

Series	140G
Poles	1, 2, 3, 4
Standards	UL 489, CSA C22.2 No. 5, IEC 60947-2
Type	Molded Case Circuit Breaker
Frame Sizes	G
Amperage	10A to 3000A
Trip Type	Thermal-Magnetic, Electronic
Mounting	Fixed or Plug-in
Voltage Ratings	Up to 690V AC
