Discrete I/O Modules 33
Publication 1746-IN005A-US-P

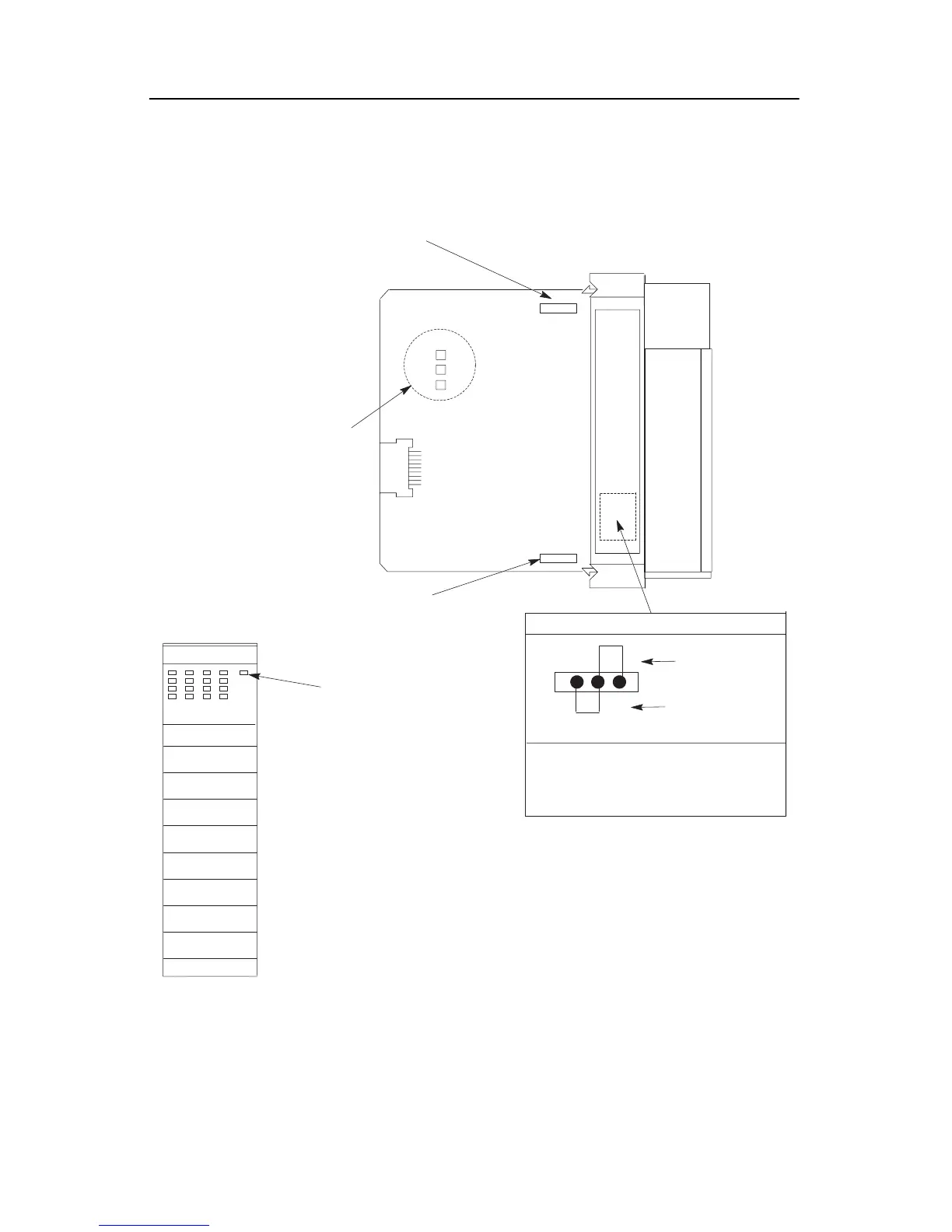

Figure 2:Location of Jumpers and Fuses for 1746-OBP16 and -OVP16
12
23
OUTPUT
Front View
1
2
3
JP 1
JP1
F
U
S
E
Location for 1746-OBP16 Fuse (F1)
Jumper for processor
notification (JP1)
Left Side View
Location for 1746-OVP16 Fuse (F1)
WHEN FUSE OPENS
PROCESSOR
CONTINUES
PROCESSOR
FAULTS
REPLACEMENT FUSE:
LITTELFUSE 322010
A-B CAT. NO. 1746-F8
Blown Fuse LED
Jumper Settings and
Fuse Replacement
Information
Allen-Bradley Spares

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Allen-Bradley 1746 Series and is the answer not in the manual?

Allen-Bradley 1746 Series Specifications

General IconGeneral
CategoryI/O Systems
Shock Resistance30G
Backplane CurrentVaries by module. Refer to individual module specifications.
Operating Temperature0°C to 60°C (32°F to 140°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Relative Humidity5% to 95% (non-condensing)
Voltage RangeVaries by module. Refer to individual module specifications.
SeriesAllen-Bradley 1746
Module TypeDigital/Analog I/O Modules
