Allen-Bradley 1746 Series User Manual

Discrete I/O Modules 43
Publication 1746-IN005A-US-P
Input Modules - ac

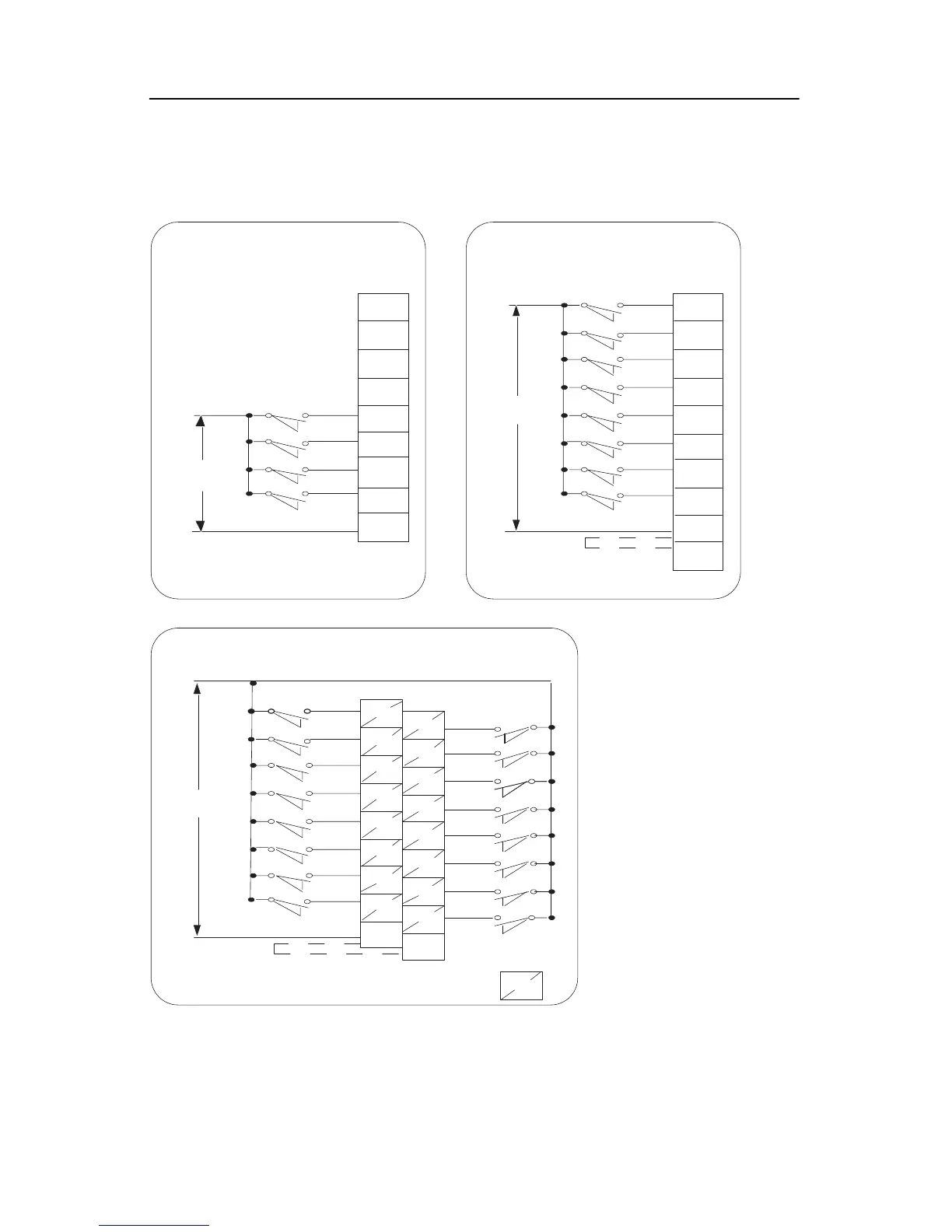

Figure 7:Wiring Diagrams (1746-IA4, -IA8, -IA16)
PLC
SLC
IN 1
IN 0
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
IN 9
IN 10
IN 11
IN 12
IN 13
IN 14
IN 15
AC COM
AC COM
0
1
2
4
6
IN 8
10
12
14
16
11
13
15
17
3
5
7
L1
L2
100/120V ac
L1
L2
100/120V ac
IN 0
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
AC COM
AC COM
L1
100/120V ac
NOT
USED
NOT
USED
NOT
USED
NOT
USED
IN 0
IN 1
IN 2
IN 3
AC COM
L2
1746-IA4
100/120V ac
1746-IA8
100/120V ac
COMMONS
CONNECTED
INTERNALLY
1746-IA16
100/120V ac
COMMONS
CONNECTED
INTERNALLY
Allen-Bradley Spares

Allen-Bradley 1746 Series Specifications

General

Category	I/O Systems
Shock Resistance	30G
Backplane Current	Varies by module. Refer to individual module specifications.
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% (non-condensing)
Voltage Range	Varies by module. Refer to individual module specifications.
Series	Allen-Bradley 1746
Module Type	Digital/Analog I/O Modules
