Allen-Bradley 1747-UIC User Manual

Universal Serial Bus (USB) to DH-485 Interface Converter 5
Publication 1747-IN063C-EN-P - January 2006

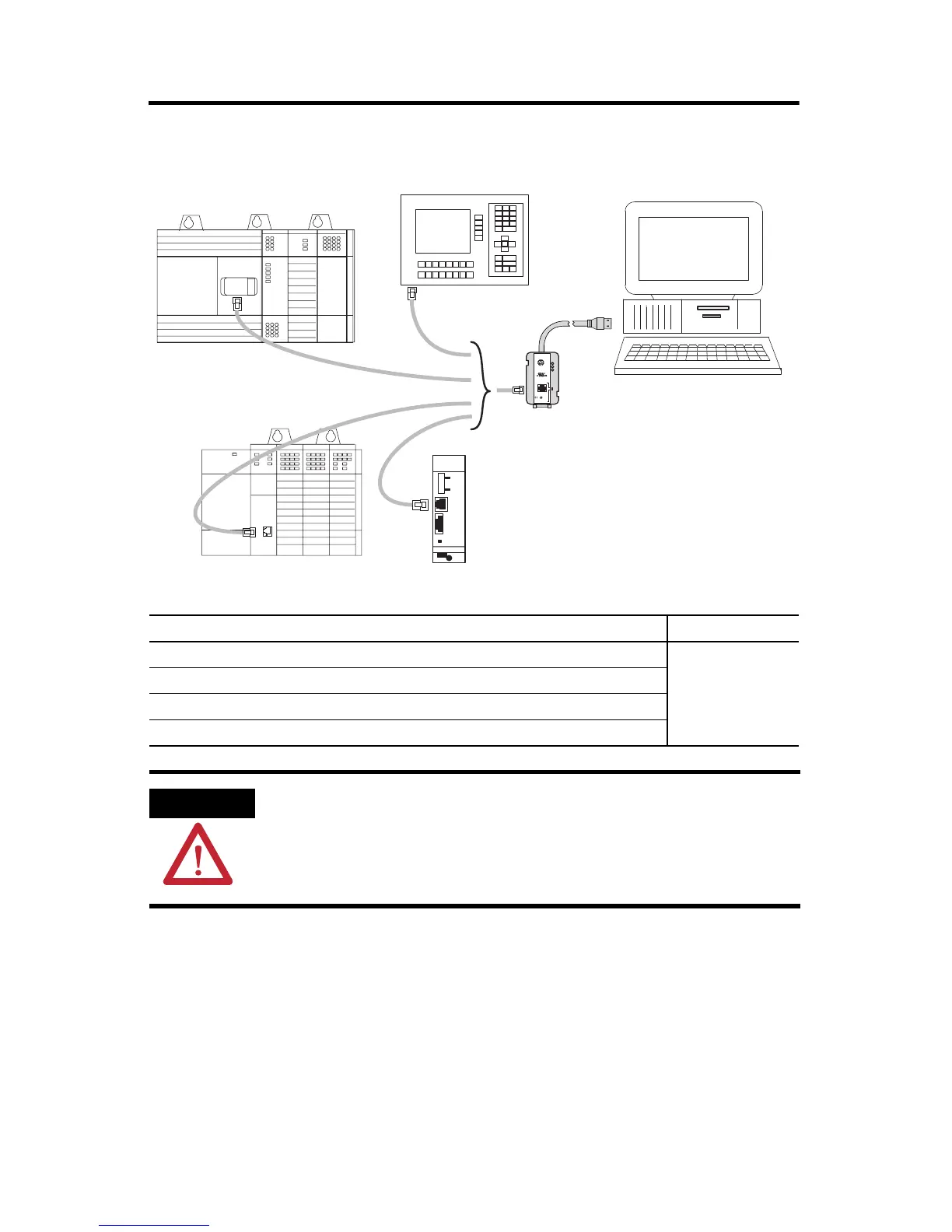

Connect DH-485 Devices to the Interface Converter’s RS-485 Port
Connect the Following DH-485 Equipment to the RS-485 Port Use Cable
SLC 500 Fixed Controller
1747-C13
SLC 5/01, SLC 5/02, and SLC 5/03 (Channel 1) Controllers
1747-AIC Isolated Link Coupler
PanelView 300 and higher Terminals with DH-485 Ports
ATTENTION
To avoid ESD damage to the 1747-UIC interface converter, always
connect it to the properly grounded DH-485 device or interface
prior to plugging the USB cable into the computer’s USB port.
DH-485
Peripheral
CPU
Power
RS485 (DH485)
USB to DH485
INTERFACE CONVERTER
USB
OK
SW
DH485
CAT SER FRN
1747-UIC A X.X
Mfg
XXXX
MADE IN INDIA
N223
USB (DF1)
LISTED I.T.E.
Personal
Computer with
USB Port
PanelView 300
and Higher
Terminal
1747-UIC
1747-AIC
SLC 5/01, SLC 5/02, and SLC
5/03 (Channel 1) Controller
SLC 500 Fixed Controller

Allen-Bradley 1747-UIC Specifications

General

Brand	Allen-Bradley
Model	1747-UIC
Category	Media Converter
Language	English
