Rockwell Automation Publication 1769-UM021G-EN-P - October 2015 105
Complete Software Tasks Required at CompactLogix 5370 Controller Installation Chapter 4

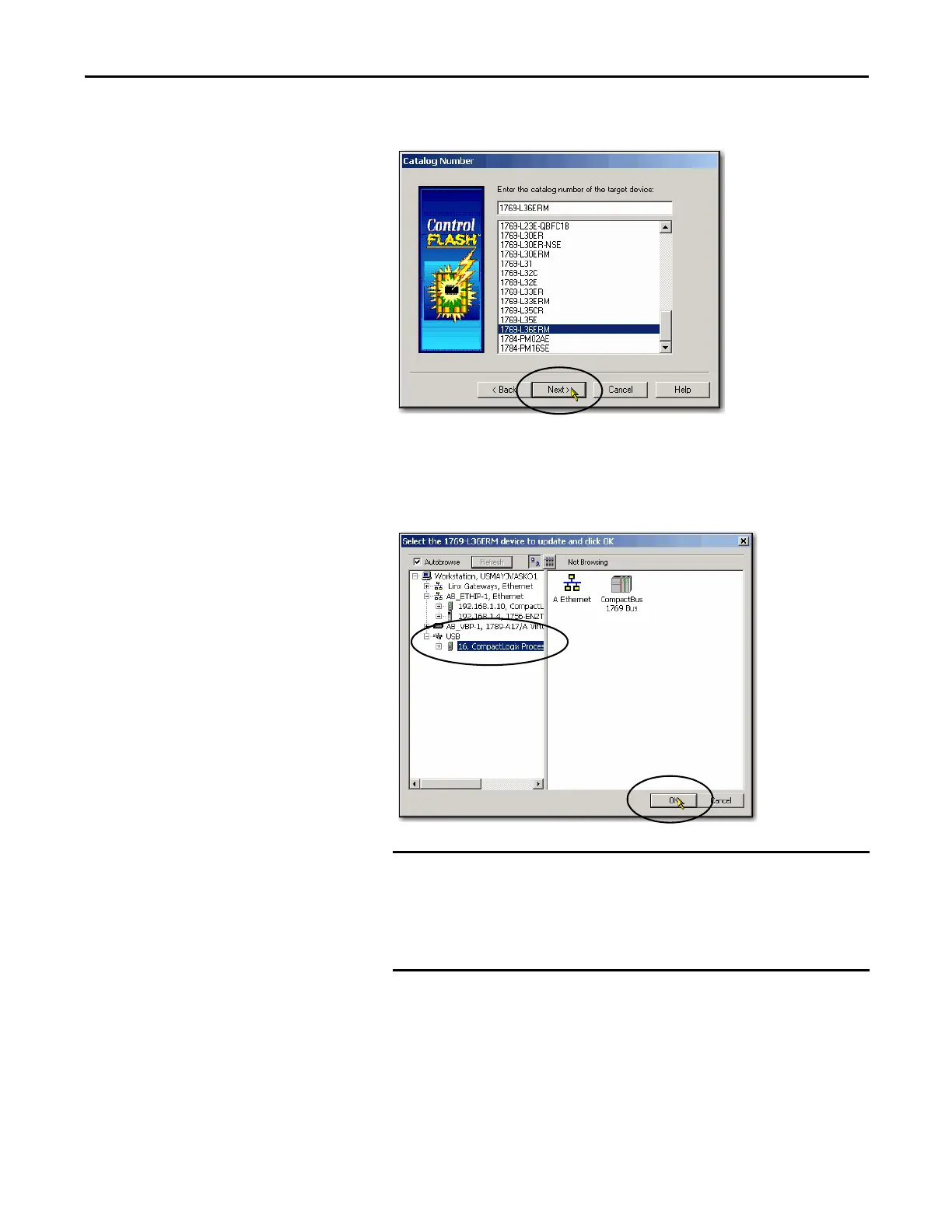

4. Choose the controller catalog number and click Next.
5. Expand the network until you see the controller.
6. Choose the controller at the first instance in which it appears, as shown in
the following graphic, and click OK.
If you expand the controller, that is, expand the network beyond the
first instance in which it appears on the left side of the screen, you
receive the following message:
• The target device is not in the proper mode to accept an update in
ControlFLASH.
